Installation manual CHARGESTORM® Connected
PPP modem
Follow the step by step instruction below to configure PPP over 3G
• Under "Configuration→Interface→General", select WAN="Wireless"
• Under "Configuration→Interface→PPP modem", enter "APN" applicable for the selected 3G
operator. Remaining fields can usually be left empty.
• Push the "save" button (at the bottom of the page).

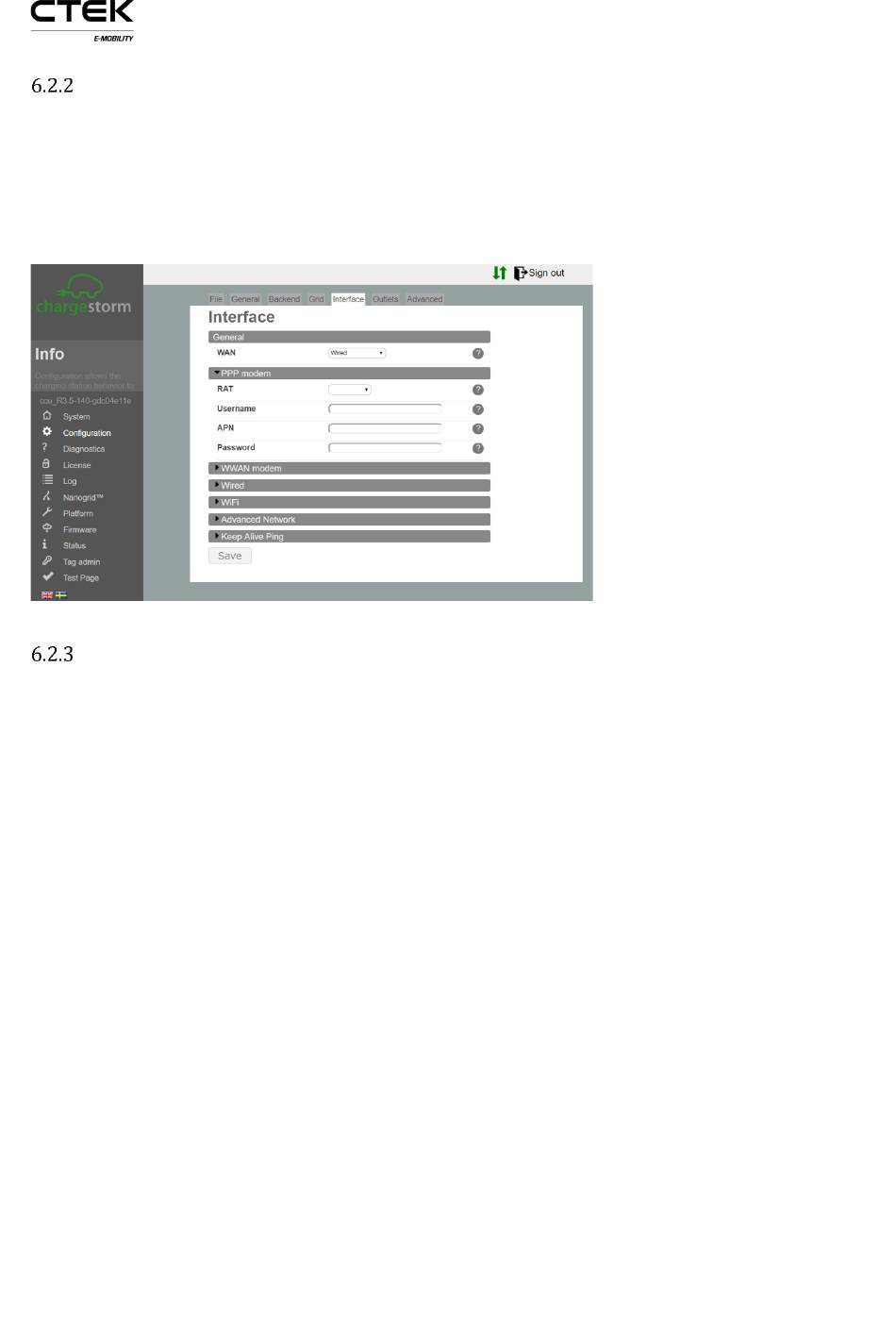

Figure 12 3G Configuration
WWAN modem
WWAN is a specific 3G-mode. WWAN tends to be more robust than PPP described in previous chapter.
Follow the step by step instruction to configure WWAN.
• Under "Configuration→Interface→General", select WAN="Wireless"
• Under "Configuration→Interface→WWAN", enter "APN" applicable for the selected 3G
operator. Remaining fields can usually be left empty.
• Push the "save" button (at the bottom of the page).
6.3 Current limit
From the local web interface is the max current limit configured (in case the limit shall be lower
than the charging status fuse level). Under configuration outlet, see Figure 13 is the current limit
set.
page 9
