Installation manual CHARGESTORM® Connected
192.168.7.2 to reach the web interface. The log in page is shown after entering the address. To log
in enter:
Username: ccu
Password: ccu

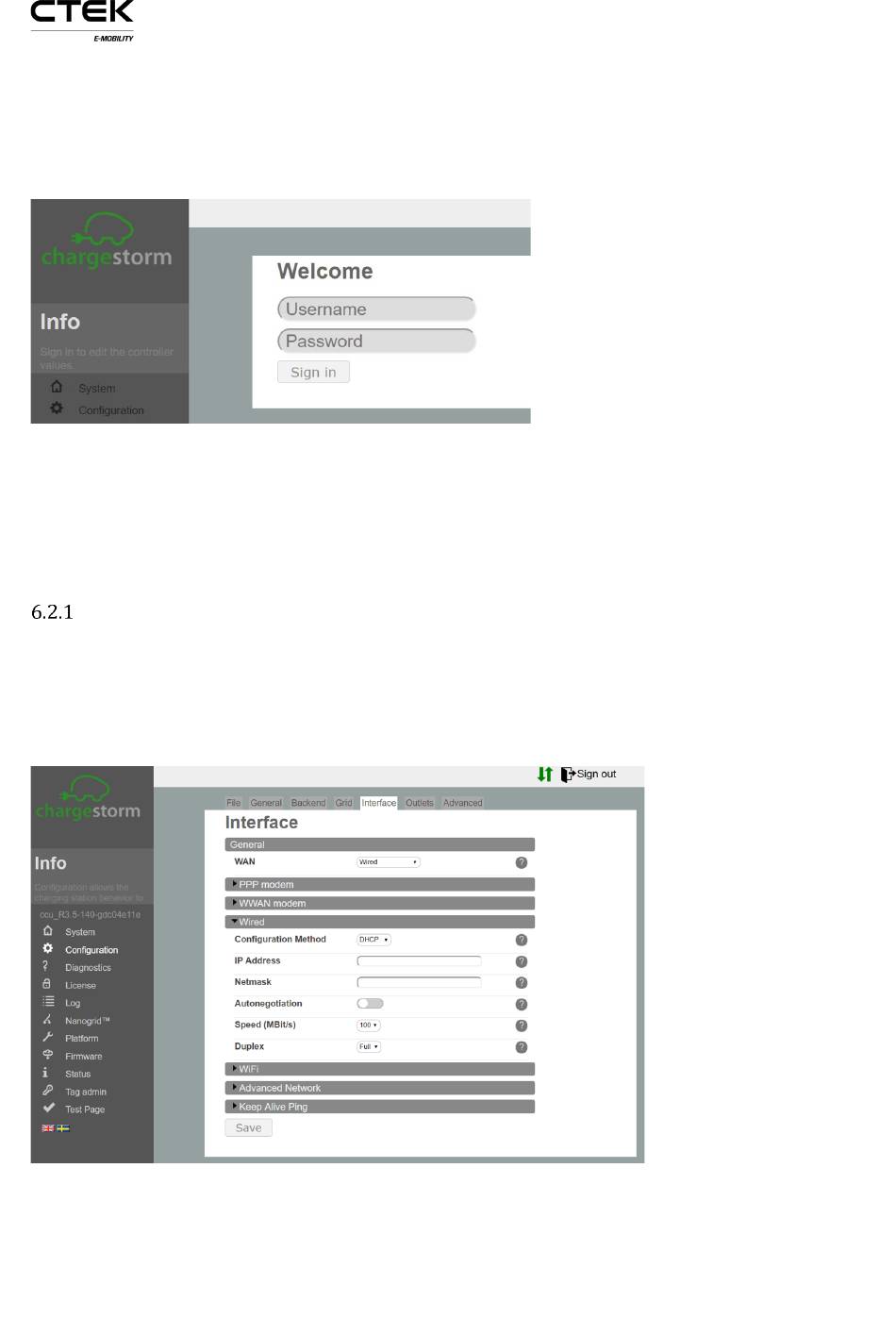

Figure 10 Log in page
6.2 Network settings
After successful log in, is the network settings found under Configuration → interfaces
When network configuration is ready check on the status page that internet access is established.
Ethernet
To set the IP settings for Ethernet follow the instruction below.
• Under "Configuration→Interface→General", select WAN="Wire".
• Under "Configuration→Interface→Wire", select "DHCP" or "Static" (for Static enter IP
address, netmask and gateway). For "DHCP" is IP address assigned automatically.
• Push the "Save" button on the bottom of the page.
Figure 11 Ethernet configuration
page 8
