40 mm length is recommended. Place CHARGESTORM® Connected on selected wall position and
fastened the unit with the four screws. Control that CHARGESTORM® Connected is firmly mounted
on the wall.

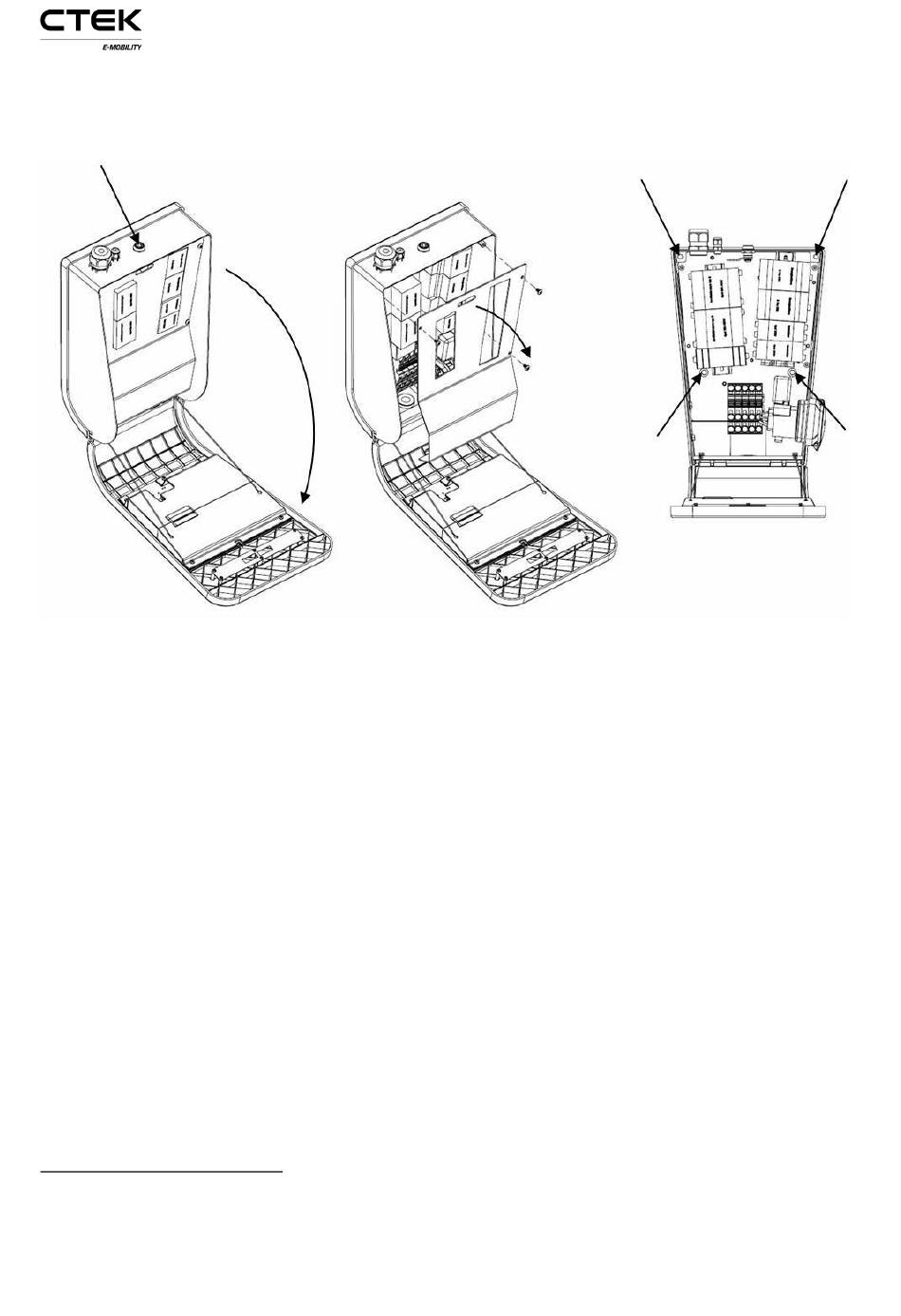

Figure 6 Open front cover with the key and fasten the unit on the wall
2
Step 5) Connect incoming power -Pull the power cable through the cable gland about 450 mm. Peal the
2
wires about 8mm at the end. The wires cross section area must not exceed 16mm . Make sure protected
ground wire is longer than the other wires sot that it will be the last wire to detach if pulled. Connect the
supply wires to the terminal blocks. Check that L1-L3, PE and N is correctly mated between female and
male connector. Put back protection cover and close and lock CHARGESTORM® Connected with the
key.
For three-phase CHARGESTORM® Connected models with dual connectors is incoming power
2
connected to the DIN rail mounted terminal blocks at the bottom between the connectors. Check
that L1-L3, PE and N is correctly mated. For schematics see chapter 11.
