CTEK MULTI XS 3600 User Manual
Lead-acid batteries 1.2-120ah
Hide thumbs
Also See for MULTI XS 3600:
- Troubleshooting manual (24 pages) ,
- User manual and manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for CTEK MULTI XS 3600
Summary of Contents for CTEK MULTI XS 3600
-
Page 1: Battery Charger

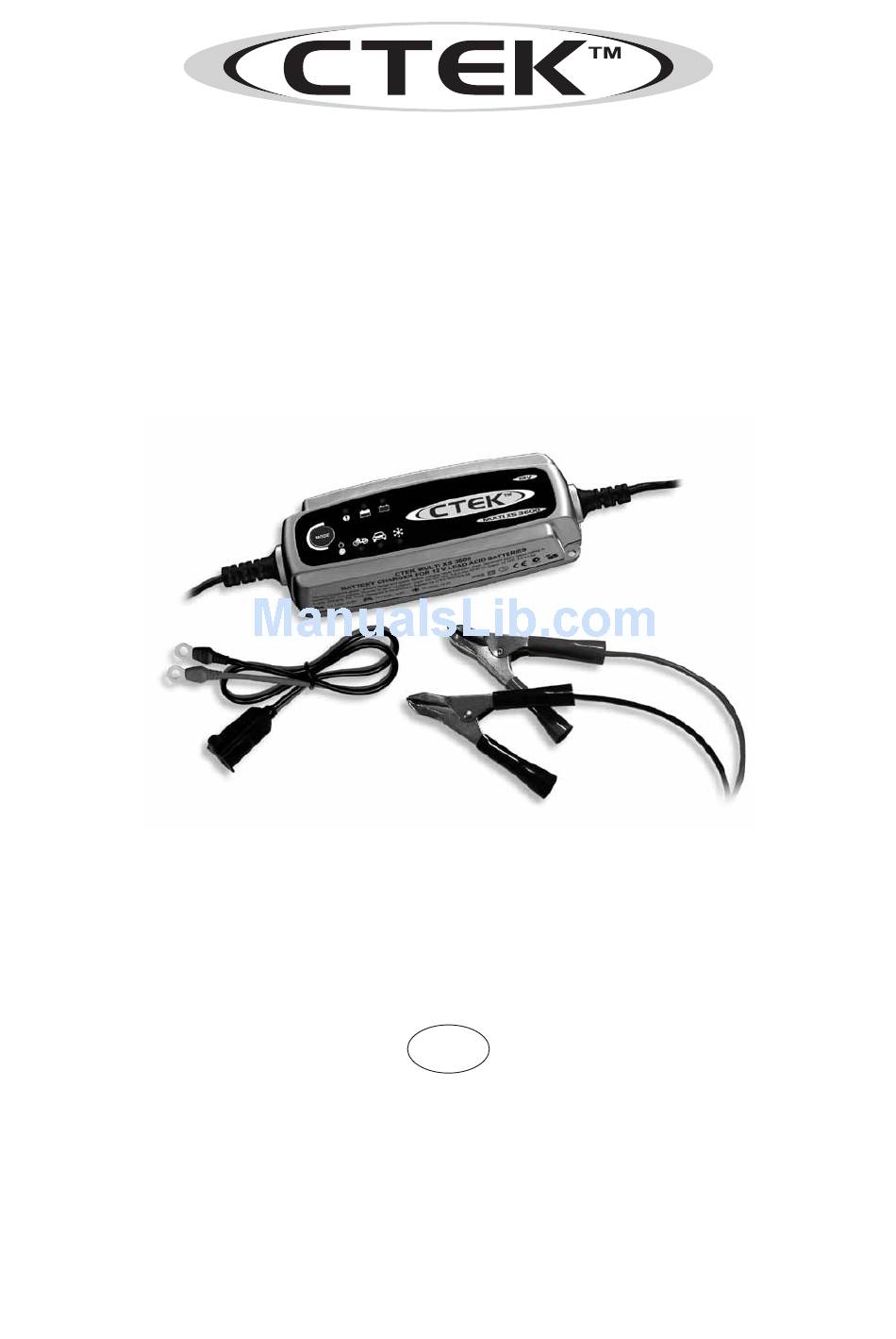

MULTI XS 3600 Battery charger For lead-acid batteries 1,2-120Ah User’s Manual and a guide to professional battery charging For Starter/Deep Cycle batteries... - Page 2 Congratulations on your purchase of your new professional MULTI XS 3600 Switch Mode Charger with Pulse Maintenance. MULTI XS 3600 is a member of a family of professional chargers from CTEK Sweden AB. It repre- sents the state-of-the-art technology for battery charging. A MULTI XS 3600 will prolong the lifetime of your battery.
- Page 3 BATTERY TYPES AND SETTINGS MULTI XS 3600 can easily be configured to charge many different types of 12V lead-acid batteries; wet batteries, MF, AGM och for most GEL-batteries. The following recommendations should, however, only be seen as guidelines. When in doubt, always consult the battery manufacturer for further instructions.
- Page 4 Connecting the provided cables with eyelet terminals: Make sure that the cable is not being pinched or in contact with warm surfaces or sharp edges. When the cable is mounted on the battery, it should not be connected to the charger. Connect the eyelet terminals to the battery's poles - the red cable to the positive pole and the black cable to the negative pole.
-
Page 5: Charging Phases
CHARGING PHASES MULTI XS 3600 operates in a four step fully automatic cycle IU o U p . It begins charging with an almost constant current (0.8A or 3.6A) until maximum voltage (14.4V or 14.7V) is reached. The charger changes mode at this point. -
Page 6: Technical Specification
This warranty is void if the unit is handled carelessly, opened or repaired by anyone other than CTEK SWEDEN AB or its authorized representative. CTEK SWEDEN AB makes no warranty other than this limited warranty and expressly excludes any implied warranty including any warranty for consequential damages. -
Page 7: Bulk Charging Time
CTEK SWEDEN AB, Rostugnsvägen 3, 776 70 VIKMANSHYTTAN, SWEDEN. Declares under sole responsibility that the battery charger MULTI XS 3600, to which this declaration relates is in conformity with the following LVD standards: EN60335-1, EN60335-2-29 according to the terms of directive 73/23/EEC with the addition of 93/68/ EEC.
