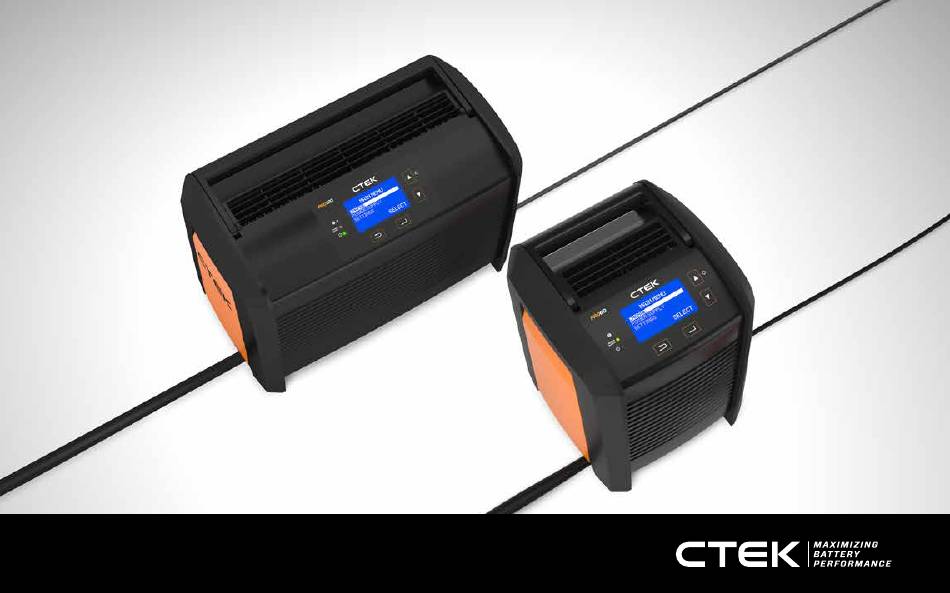

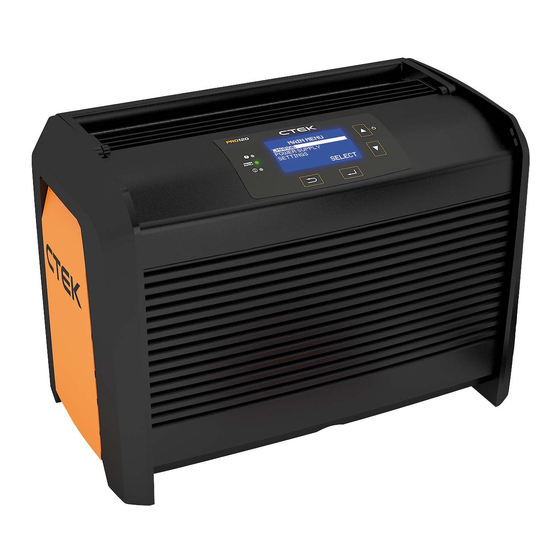

- Page 1 USER MANUAL 2 YEAR WARRANTY CTEK BATTERY CHARGER PRO60/PRO120...
-
Page 2: Display And Buttons
CONGRATULATIONS on the purchase of your new professional switch mode battery charger. This charger is included in a series of professional chargers from CTEK SWEDEN AB and represents the latest technology in battery charging. PRO60/PRO120 is a charger with multiple adjustable parameters. - Page 3 LiFePO4 LITHIUM BATTERY SIZE CONNECT LiFePO4 MAX CURRENT POWER SUPPLY BATTERY! Use the showroom mode when using START the PRO60/PRO120 to supply power to BACK SELECT BACK SELECT BACK SELECT BACK SELECT STOP the car when a battery is not connected.
- Page 4 BACK SELECT BACK SELECT WARNING BUZZER BACK SELECT Acoustic signal when error PRO120 occurs PRO60 FACTORY RESET INFO LOCK THE BUTTONS PRO120 PRO60 Lock the buttons if charger used in public INFO MMI ver: 11.06 or unattended. Module ver: 9.09...
- Page 5 CHARGING PROGRAMS LEAD-ACID BATTERIES DESULPHATION SOFT START BULK ABSORPTION ANALYSE RECOND FLOAT PULSE STEP 1 DESULPHATION Detects sulphated batteries. Pulsing current and voltage, removes sulphates from the lead plates of the battery restoring the battery capacity. STEP 2 SOFT START Tests if the battery can accept charge.
-
Page 6: Ready To Use
PRO60 PRO120 RECOMMENDED CURRENT RECOMMENDED CURRENT Current Battery size Min Battery size Max Current Battery size Min Battery size Max 10Ah 150Ah 10Ah 150Ah 20Ah 300Ah 20Ah 300Ah 40Ah 600Ah 40Ah 600Ah 60Ah 900Ah 80Ah 1200Ah 80Ah 1200Ah 120Ah 1800Ah... -
Page 7: Charge Modes
High voltage ripple could harm other equipment that is connected to the battery. CTEK High voltage ripple could harm other equipment that is connected to the battery. CTEK battery chargers produce very clean voltage and current with low ripple. -
Page 8: Error Displays
ERROR CODES LIMITED WARRANTY ERROR DISPLAYS Very occasionally, an error code may appear on the PRO60/PRO120 LCD CTEK, issues this limited warranty to the original purchaser of this display screen which will be displayed as a number only. product. This limited warranty is not transferable. The warranty applies to manufacturing faults and material defects.
