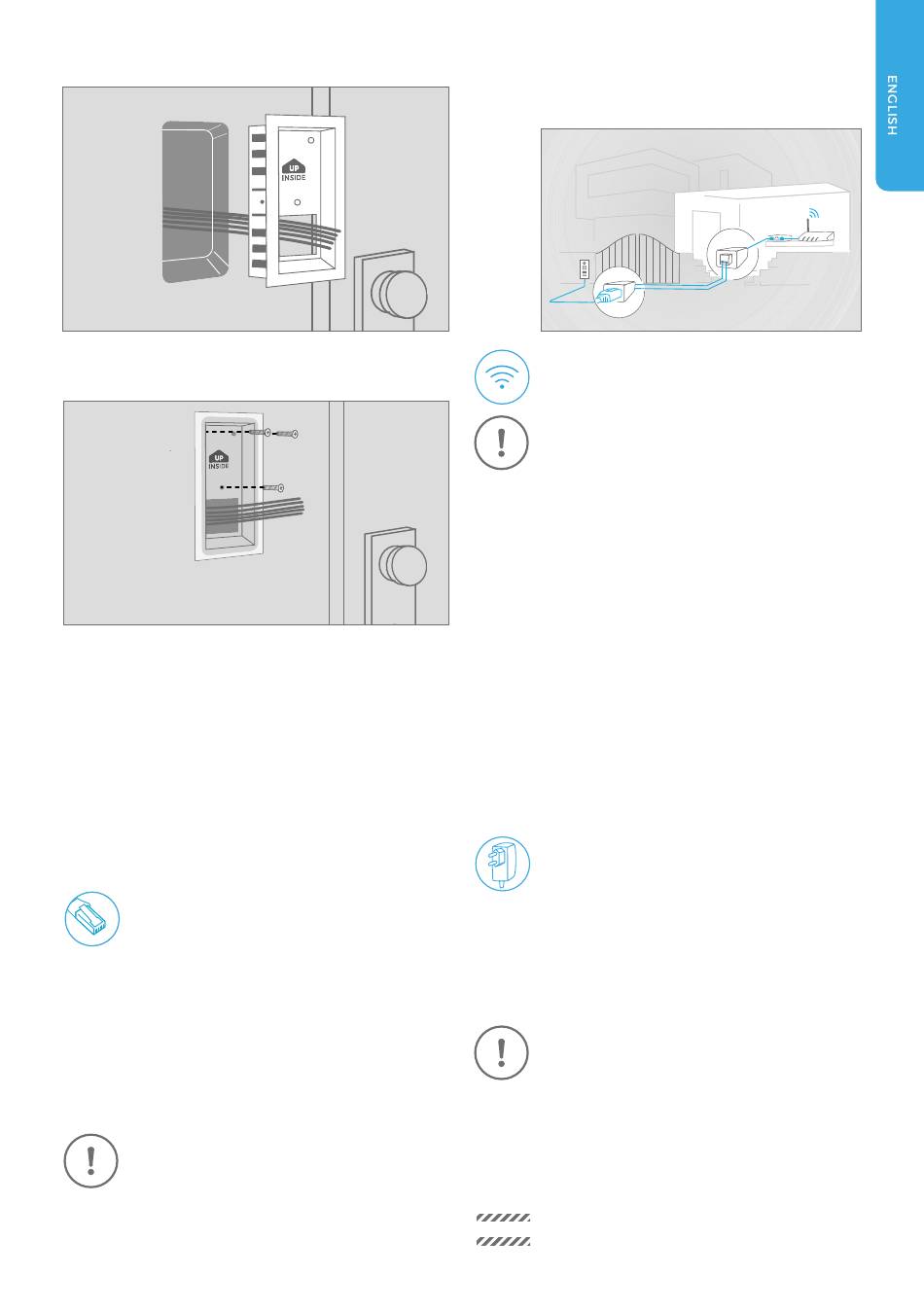

Mounting: D1101V/D1102V Flush-mount
Lead all cables and wires you want to connect to the
device through the mounting housing.
Screw the mounting housing to the wall.
Please make sure that the outer frame of the flush-
mounted housing rests on the outside of the wall and
that the edge of the flush-mounted housing is sealed
all around against moisture from the outside.

STEP 5: NETWORK CONNECTION OPTIONS

You can connect the device to the network by either
using a network cable or a WiFi 2.4 GHz connection.
OPTION 1:
NETWORK CABLE
(RECOMMENDED, MAINTENANCE FREE)
Install a network cable (which is plugged into a
network switch / router with Internet access) from
the inside of your building to the assembly location.
The network cable between the assembly location
and the network switch / router can have a maximum
length of 80 m/262 ft (IEEE 802.3). If you must span a
distance of more than 80 meters/262 feet you can put
a network switch in between.
If you have only two wires available at
the assembly location, you may use the
"DoorBird 2-Wire Ethernet PoE Converter
A1071", sold separately. It allows you to
transfer network data (Ethernet) and power
(PoE) with a simple two-wire cable over long
distances. For example, existing buildings
with a simple two-wire bell wire can be
equipped with network technology without
having to retrofit any network cables.
OPTION 2:
WIFI 2.4 GHZ
For reasons of network stability, we
principally recommend using a network
cable, as WiFi is sensitive to interference
(range, house walls acting as shields,
reliability of performance, third party WiFi
networks, wireless transmitters causing
interference in the area, etc.).
When using WiFi please make sure you have a good
WiFi signal at the assembly location of the device.
You can increase the WiFi signal by using so called
"WiFi repeaters", which can boost your WiFi signal.
You should install such a WiFi repeater close to the
assembly location of the device, typically inside your
home and close to the device.

STEP 6: PREPARE POWER SUPPLY

The device does not have a battery as power supply,
therefore, choose one of the following options.
OPTION 1:
POWER SUPPLY USING THE POWER
SUPPLY UNIT (MAINS ADAPTOR)
To power the device using the provided mains adapter,
2 insulated wires are required. The power supply unit
has a 300 cm (9.8 ft) long cable with two insulated
wires. The network connection is then established via
a network cable or alternatively via WiFi.
The provided mains adaptor is only capable
to power one device. It is not designed to
power multiple devices simultanously.
If you must power more than one device with
one power supply, we recommend to use a
PoE-Switch with PoE Standard IEEE 802.3af
Mode A or an appropriate DIN rail power
supply (see "OPTION 3").
Do not plug the power supply unit into the
NOTI CE
wall socket yet.
