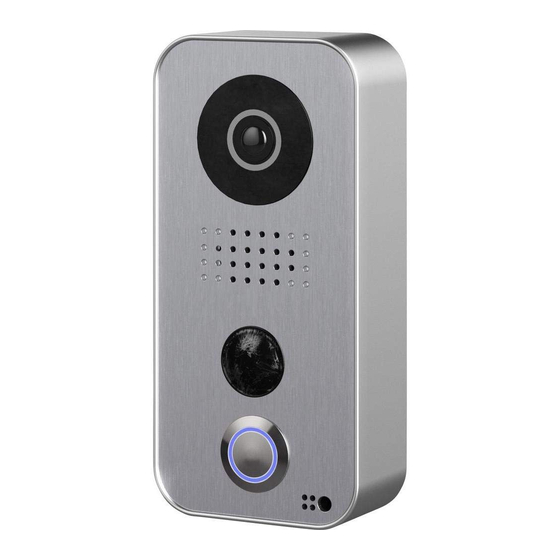

DoorBird D10x Series Installation Manual

DoorBird D10x Series Installation Manual

Video doorbell
Hide thumbs Also See for D10x Series:

Advertisement

Available languages

Available languages

Video doorbell
D10x Series
Videotürklingel
D10x Serie
Pages 1-8
Installationsanleitung
Seiten 10-18
Version 1.7, Min. HW 1.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D10x Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DoorBird D10x Series

  • Page 1 Video doorbell D10x Series Videotürklingel D10x Serie Installation manual Pages 1-8 Installationsanleitung Seiten 10-18 Version 1.7, Min. HW 1.01...
  • Page 4 You can always find the most up-to-date version of the installation manual on www.doorbird.com/support Components Contents  1x DoorBird video doorbell  1x Power supply unit (mains adaptor) with four country-specific adaptors  1x Cable with plug for the power supply (black, red) ...
  • Page 5 For the power supply, door chime, etc. 3) Screw opening For the safety screw Videos Need help with the installation? Be sure to watch our installation videos which can be found on http://www.doorbird.com/support Each individual step of the installation is clearly documented in the videos.
  • Page 6 Please ensure that the upload speed of your Internet connection is at least 0.5 Mbps. You can also carry out a speed test at any time via the DoorBird app. The user experience is only as good as your network speed, network stability and quality of your network components, such as your Internet router and WiFi access points or WiFi repeaters.
  • Page 7 inside your house, usually where the two wires from your previous doorbell come out of the wall in the interior of the house. Do not plug the power supply unit into the wall socket yet. Connect the power supply unit inside the house with the crimp connector provided and the two wires that you would like to use to power the device.
  • Page 8 Should you have any questions about this, please contact the manufacturer of your door opener. You can find compatible electric door opener and a sample wiring diagram at www.doorbird.com/support Conventional electric door chime If someone rings your video doorbell, you will immediately receive a Two insulated wires.
  • Page 9 equipped with heat-shrink tubing which can be sealed after assembly by, for example, carefully using a heat gun. Please remove any cables on the connection terminal that you do not need. Connector Description Wire White and orange network cable wire (Number 1, Transmit Data +) White-orange, orange, Orange network cable wire (Number 2, Transmit Data -)
  • Page 10 Step 12: Downloading and installing the app Download the "DoorBird" app by Bird Home Automation onto your mobile device from the Apple app store or Google Play store. You can always find the most up-to-date version of the App manual on www.doorbird.com/support...
  • Page 11 Legal notes General remarks Data privacy and data security 1. DoorBird is a registered trademark of Bird Home 1. For maximum security, the device uses the same Automation GmbH. encryption technologies as are used in online banking. For your security, no port forwarding or DynDNS is usedeither.
  • Page 12 Video doorbell D10x Series Videotürklingel D10x Serie Installation manual Pages 1-8 Installationsanleitung Seiten 10-18 Version 1.7, Min. HW 1.01...
  • Page 13 Installationsanleitung Die stets aktuelle Version der Installationsanleitung finden Sie unter www.doorbird.com/de/support Komponenten Inhalt  1x DoorBird Videotürklingel  1x Steckernetzteil mit vier Landesadaptern  1x Kabel mit Stecker für die Stromversorgung (schwarz, rot)  1x Kabel mit Stecker und RJ45 Buchse für das Netzwerkkabel (weiß-orange, orange, weiß- grün, grün)
  • Page 14 1) Einrastpunkte Für die Montageplatte 2) Anschlussterminal Für die Stromversorgung, Türgong etc. 3) Schrauböffnung Für die Sicherheitsschraube Videos Sie können die Installation durch unsere Installationsvideos auf www.doorbird.com/de/support begleiten lassen. In den Videos wird jeder Installationsschritt einzeln und gut dokumentiert dargestellt.
  • Page 15 Netzwerkgeschwindigkeit und Netzwerkkomponenten Stellen Sie sicher, dass Ihre Internetverbindung über mindestens 0,5 Mbit/s Uploadgeschwindigkeit verfügt. Sie können über die DoorBird App jederzeit auch einen Geschwindigkeitstest durchführen. Das Nutzererlebnis ist nur so gut wie Ihre Netzwerkgeschwindigkeit, Netzwerkstabilität und Qualität Ihrer Netzwerkkomponenten, wie z.B. Ihr Internetrouter und W-LAN Access Points oder W-LAN Repeater.
  • Page 16 Zur Stromversorgung der Videotürklingel per Steckernetzteil werden zwei isolierte Drähte benötigt. Diese Drähte sind im Normalfall bereits vorhanden und frei, wenn Sie die bestehende Türklingel abmontiert haben. Verwenden Sie ausschließlich das mitgelieferte Steckernetzteil oder bei uns separat erhältliche Hutschienennetzteil, da diese speziell stabilisiert und mit einer integrierten Audio Störungsunterdrückung ausgestattet sind.
  • Page 17 Spannungsversorgung ihres herkömmlichen Türgongs. Bei Fragen hierzu kontaktieren Sie bitte den Hersteller Ihres Türgongs. Beispiele für kompatible Türgongs und einen beispielhaften Anschlussplan finden Sie unter www.doorbird.com/de/support Herkömmliche Türöffnertaster Wenn an der Videotürklingel ein elektrischer Türöffner angeschlossen ist, Zwei isolierte Drähte.
  • Page 18 Schritt 7: Montageplatte anschrauben Führen Sie die Drähte, die Sie an die Videotürklingel anschließen möchten, durch die dafür vorgesehene Öffnung in der Montageplatte. Drücken Sie die Montageplatte gegen die Hauswand und drehen Sie die mitgelieferten Schrauben in die Dübel bzw. in die Hauswand. Die Videotürklingel bzw. Montageplatte wurden so entwickelt, dass diese auch an unebenen Wänden montiert werden kann und ist daher nicht ganz plan.
  • Page 19 Schritt 9: Drähte anschließen Die Videotürklingel verfügt auf der Rückseite für ein komfortables und sicheres Anschließen der Drähte über ein Anschlussterminal mit Buchsen. Die einzelnen Kontakte am Anschlussterminal sind auf der Rückseite des Gehäuses beschriftet. Einige Anschlüsse am Anschlussterminal können bereits durch uns mit Kabeln für Sie vorbelegt sein.
  • Page 20 Videotürklingel angeschlossen haben. Schritt 12: Download und Installation der App Laden Sie sich die App "DoorBird" von Bird Home Automation aus dem Apple App Store bzw. Google Play Store auf Ihr mobiles Endgerät. Die stets aktuelle Version der App Bedienungsanleitung finden Sie unter www.doorbird.com/de/support...
  • Page 21 Rechtliche Hinweise Allgemeines Datenschutz und Datensicherheit 1. DoorBird ist ein registriertes Warenzeichen der Bird 1. Für maximale Sicherheit verwendet das Gerät dieselben Home Automation GmbH. Verschlüsselungstechnologien wie beim Onlinebanking. Zu Ihrer Sicherheit sind auch keine Portweiterleitungen oder 2. Apple, das Apple Logo, Mac, Mac OS, Macintosh, iPad, DynDNS im Einsatz.
  • Page 22 Space for your notes / Platz für Ihre Notizen...
  • Page 24 www.doorbird.com...
