Installation - DoorBird D11 Series Installation Manual

VIDEOS
Need help with the installation? Be sure to
watch our installation videos which can be found
on http://www.doorbird.com/support
Each individual step of the installation is clearly
documented in the videos.

INSTALLATION

All the steps below should be carried out carefully
by a competent adult, taking into consideration any
applicable safety regulations. Please contact us
directly or seek the advice of a competent specialist.
Please ensure that all wires used for the
installation are undamaged along their entire
length and approved for this type of use.
Network speed and network components
Please ensure that the upload speed of your Internet
connection is at least 0.5 Mbps. The user experience is
only as good as your network speed, network stability
and quality of your network components, such as
your Internet Router and WiFi access points or WiFi
repeaters. Please also make sure that your network
components are no older than two years old, have
been manufactured by a well-known manufacturer,
and have the latest firmware installed.
Should these requirements not be fulfilled, it may
occur, for example that the performance of audio and
video is poor or push notifications are delayed or do
not arrive on your smartphone or tablet at all.
Requirements:
High-speed Internet (via landline): DSL, cable or
optical fibre
Network: Ethernet, with DHCP
STEP 1: SWITCHING OFF POWER
Switch off the power to all wires leading to
the assembly location, i.e. the door chime,
electric door opener, power supply unit for
the video door station etc.
STEP 2: DISMANTLING THE EXISTING
DOORBELL
Should there already be a doorbell or door station on
the exterior wall of the house, please remove it.

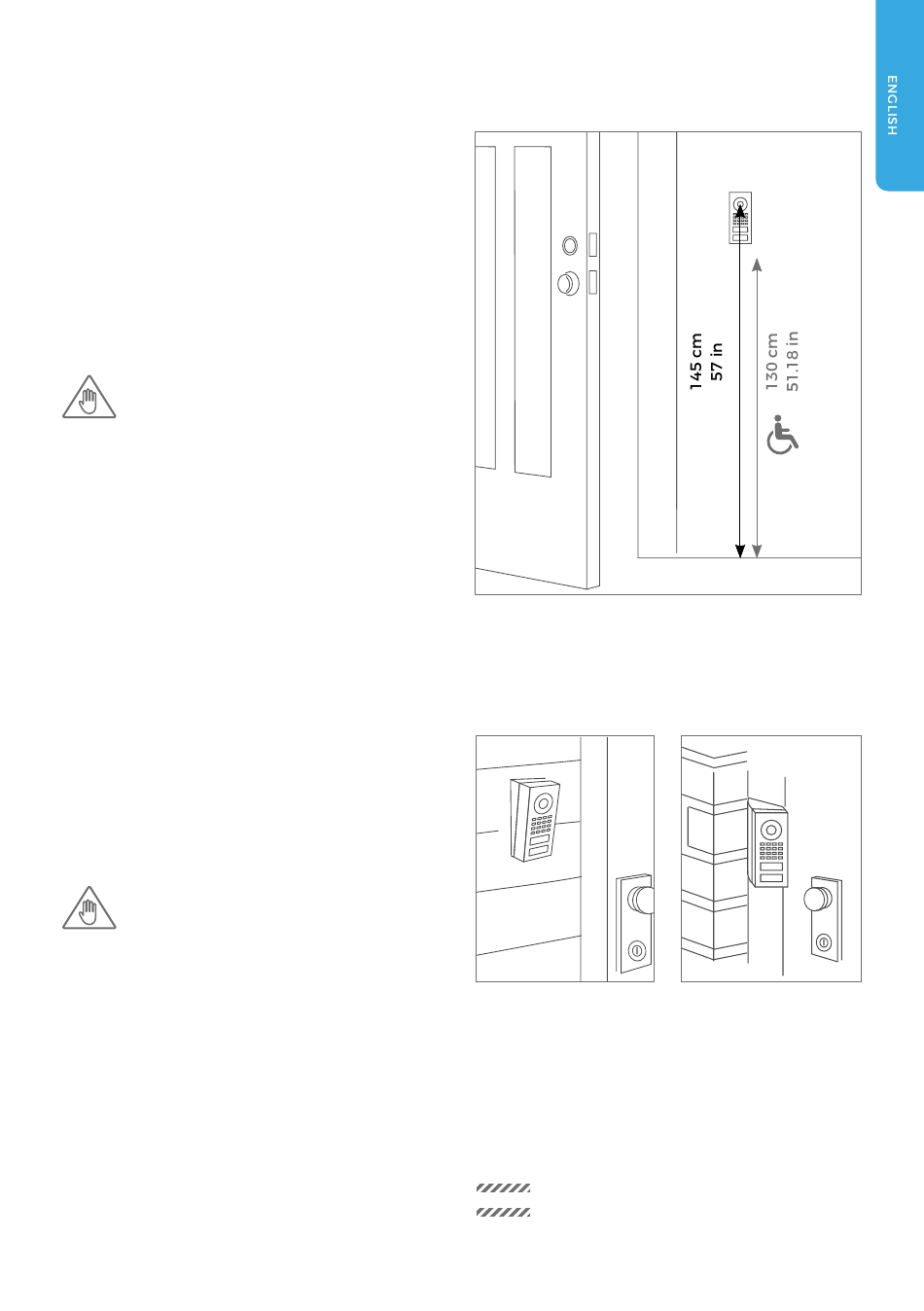

STEP 3: DETERMINING THE ASSEMBLY
LOCATION
The device uses an ultra wide-angle hemispheric lens
so that even when the person is a minimum distance
of 50 cm (19.68 in) away from the device, a low
installation height is sufficient. The lens is therefore
not mechanically adjustable. The camera lens should
be located at an altitude of at least 145 cm (57 in).
You may check this prior to the final mounting.
We offer additional wall-mounting kits for D1101V
Surface-Mount with a wedge corner wall-mount
adapter (7.5° vertical down or up) and alternatively
an angle corner wall-mount adapter (45° horizontal,
mounts left or right).
A8001 Wedge corner
wall-mount adapter
(7.5°, mounts vertical
down or up), sold
separately
When choosing the assembly location, consider
the lighting conditions. Avoid direct sunlight, direct
backlight and reflective surfaces.
Do not expose the device to direct sunlight.
NOTICE
The housing temperature can exceed the
maximum allowed temperature limit.
A8002 Angle corner
wall-mount adapter
(45° horizontal, mounts
left or right), sold
separately
