Field Wiring - Mircom UDACT-100A Installation And Operation Manual

UDACT-100A MAIN BOARD TERMINAL CONNECTIONS:
Wire the two telephone lines devices to terminals as shown.
Line 1 Input (Tip/Ring):
Line 1 Output (Tip/Ring):
Line 2 Input (Tip/Ring):
Line 3 Output (Tip/Ring):
Note that most Authorities Having Jurisdiction do not allow the connection of Premise Telephones. See wiring tables and
specifications for more information.
Note: The Terminal Blocks are "depluggable" for ease of wiring.

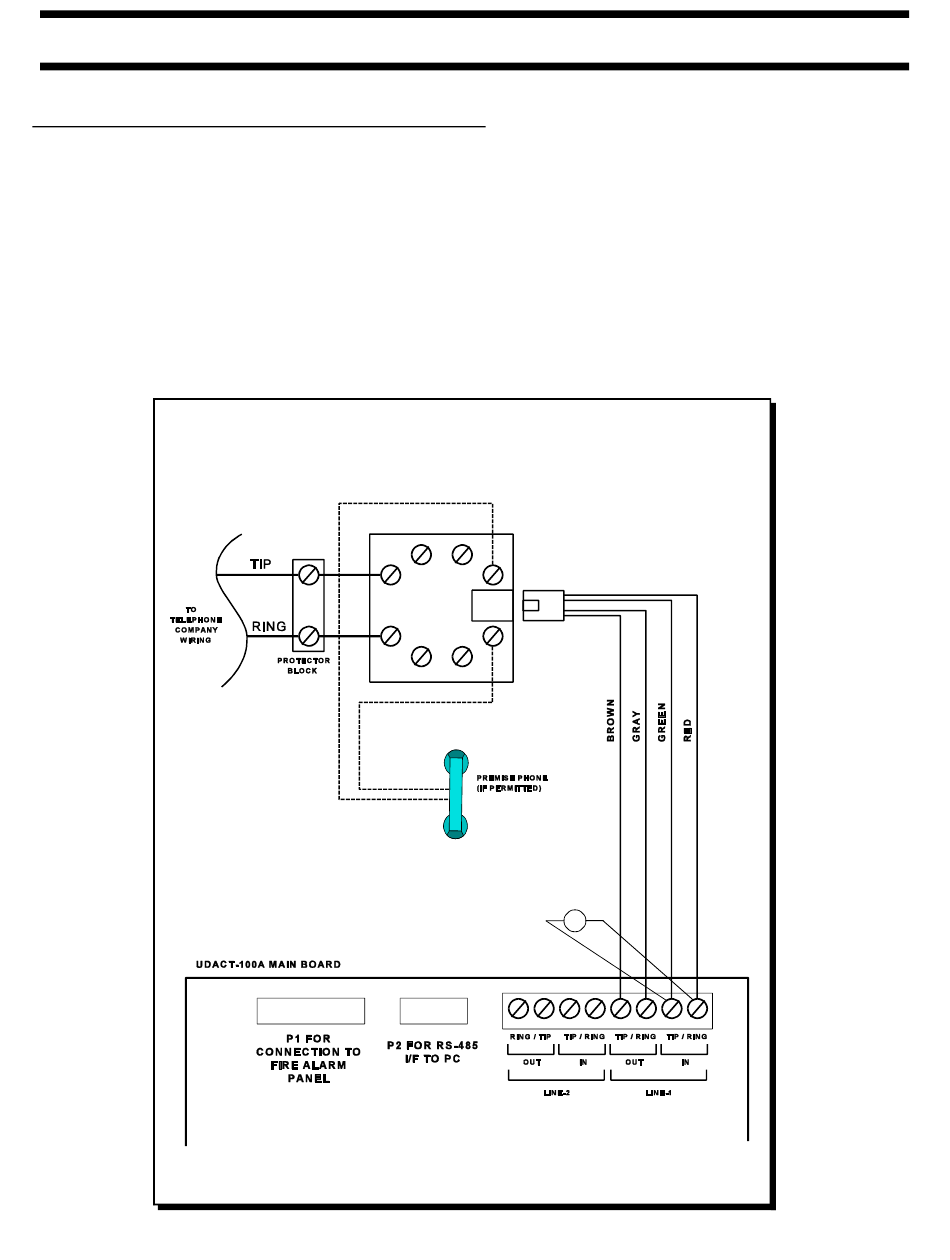

UDACT-100A Main Board Field Wiring

FIELD WIRING

To the first Telephone Line via the required RJ31X Connector.
To an optional Premise Telephone on the first Telephone Line via the required RJ31X Connector.
To the second Telephone Line via the required RJ31X Connector.
To an optional Premise Telephone on the second Telephone Line via the required RJ31X
Connector.
RJ31X
4
3
6
5
Atlantic Scientific
Model #24544
or Similar UL
Listed QVRG
Secondary
Protector
NOTE: TIP/RING ARE POLARITY
SENSITIVE. HAVING THE
TIP/RING IN REVERSE WILL
CAUSE A LINE FAULT
1
2
7
8
VOLTAGE
MEASURED
SHOULD BE
APPROX. 35 to
50V ON HOOK.
RED
BLACK
- +
V
Page 4
