UDACT-100A Digital Communicator:
M Connects to two Telephone Lines and performs DC Supervision.
M Connects to a Mircom FACP via a ribbon cable. This connection provides DC power, RS-485 Data Link, and all
other signalling between the Communicator and the FACP.
M Transmits user-configurable Zoned Alarm, Supervisory, and Trouble status to a Central Monitoring Station, using
either Ademco Contact ID or SIA DCS Protocols.
M User configurable using the CFG-100 Configuration Tool with two levels of Password control.
M Current Consumption: Standby: 120 mA, Alarm: 300 mA
UDACT-100A:
The UDACT-100A Battery Calculations are performed as part of the calculations for the Fire Alarm Control
Panel it will be used in. See the appropriate Mircom Installation and Operation Manual.

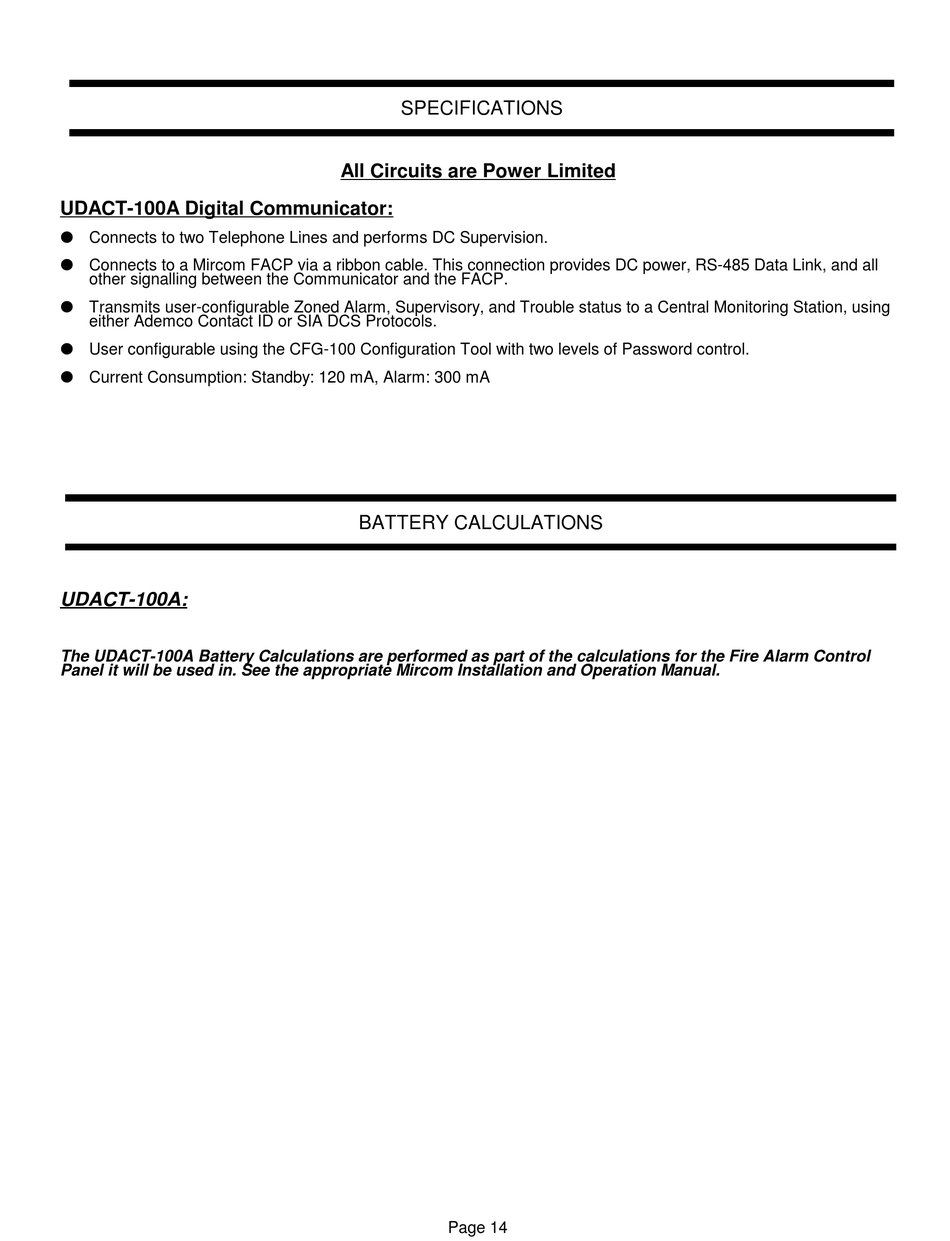

SPECIFICATIONS
All Circuits are Power Limited
BATTERY CALCULATIONS
Page 14
