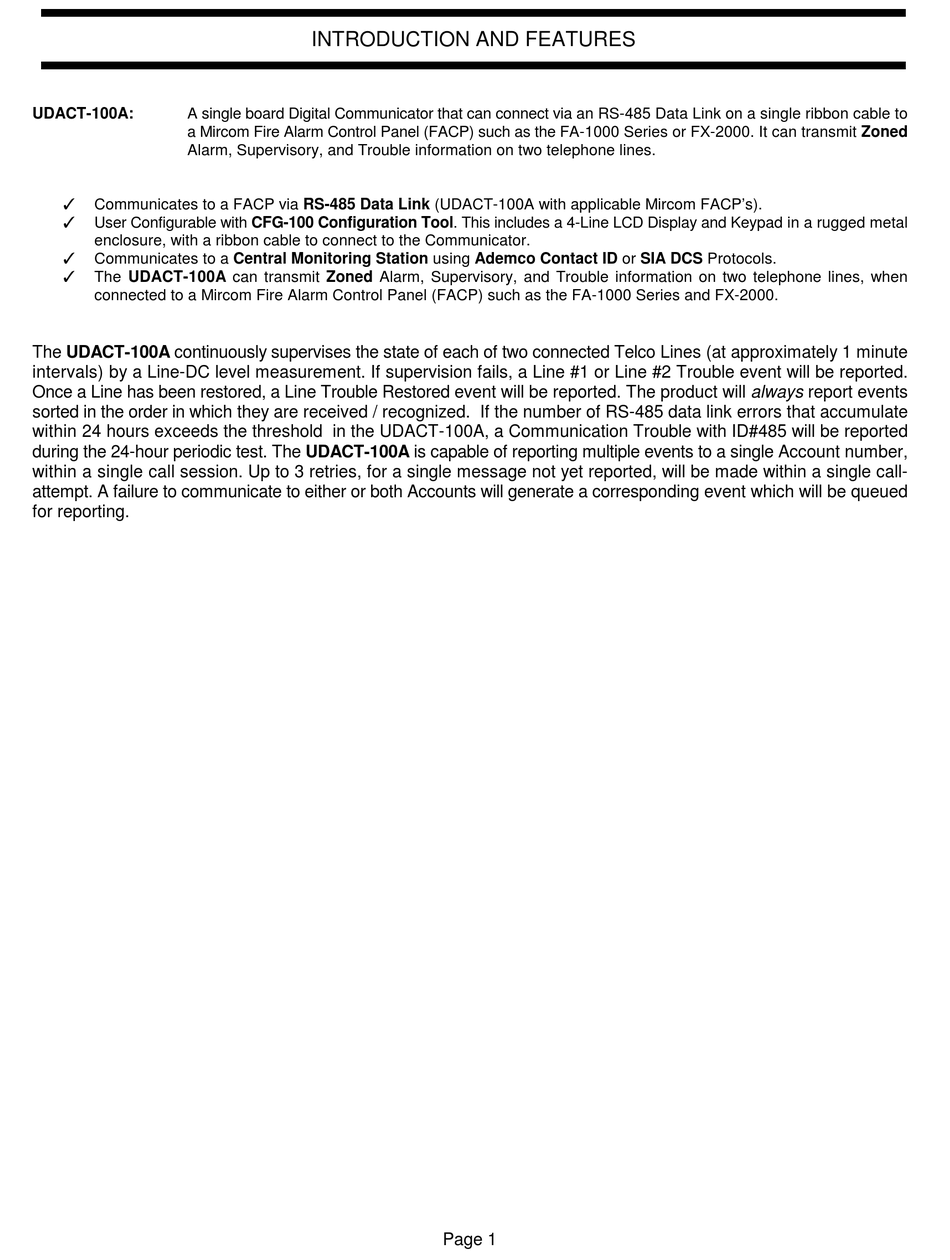

Introduction And Features - Mircom UDACT-100A Installation And Operation Manual

UDACT-100A: A single board Digital Communicator that can connect via an RS-485 Data Link on a single ribbon cable to
a Mircom Fire Alarm Control Panel (FACP) such as the FA-1000 Series or FX-2000. It can transmit Zoned
Alarm, Supervisory, and Trouble information on two telephone lines.
T
Communicates to a FACP via RS-485 Data Link (UDACT-100A with applicable Mircom FACP's).
T
User Configurable with CFG-100 Configuration Tool. This includes a 4-Line LCD Display and Keypad in a rugged metal
enclosure, with a ribbon cable to connect to the Communicator.
T
Communicates to a Central Monitoring Station using Ademco Contact ID or SIA DCS Protocols.
T
The UDACT-100A can transmit Zoned Alarm, Supervisory, and Trouble information on two telephone lines, when
connected to a Mircom Fire Alarm Control Panel (FACP) such as the FA-1000 Series and FX-2000.
The UDACT-100A continuously supervises the state of each of two connected Telco Lines (at approximately 1 minute
intervals) by a Line-DC level measurement. If supervision fails, a Line #1 or Line #2 Trouble event will be reported.
Once a Line has been restored, a Line Trouble Restored event will be reported. The product will always report events
sorted in the order in which they are received / recognized. If the number of RS-485 data link errors that accumulate
within 24 hours exceeds the threshold in the UDACT-100A, a Communication Trouble with ID#485 will be reported
during the 24-hour periodic test. The UDACT-100A is capable of reporting multiple events to a single Account number,
within a single call session. Up to 3 retries, for a single message not yet reported, will be made within a single call-
attempt. A failure to communicate to either or both Accounts will generate a corresponding event which will be queued
for reporting.
