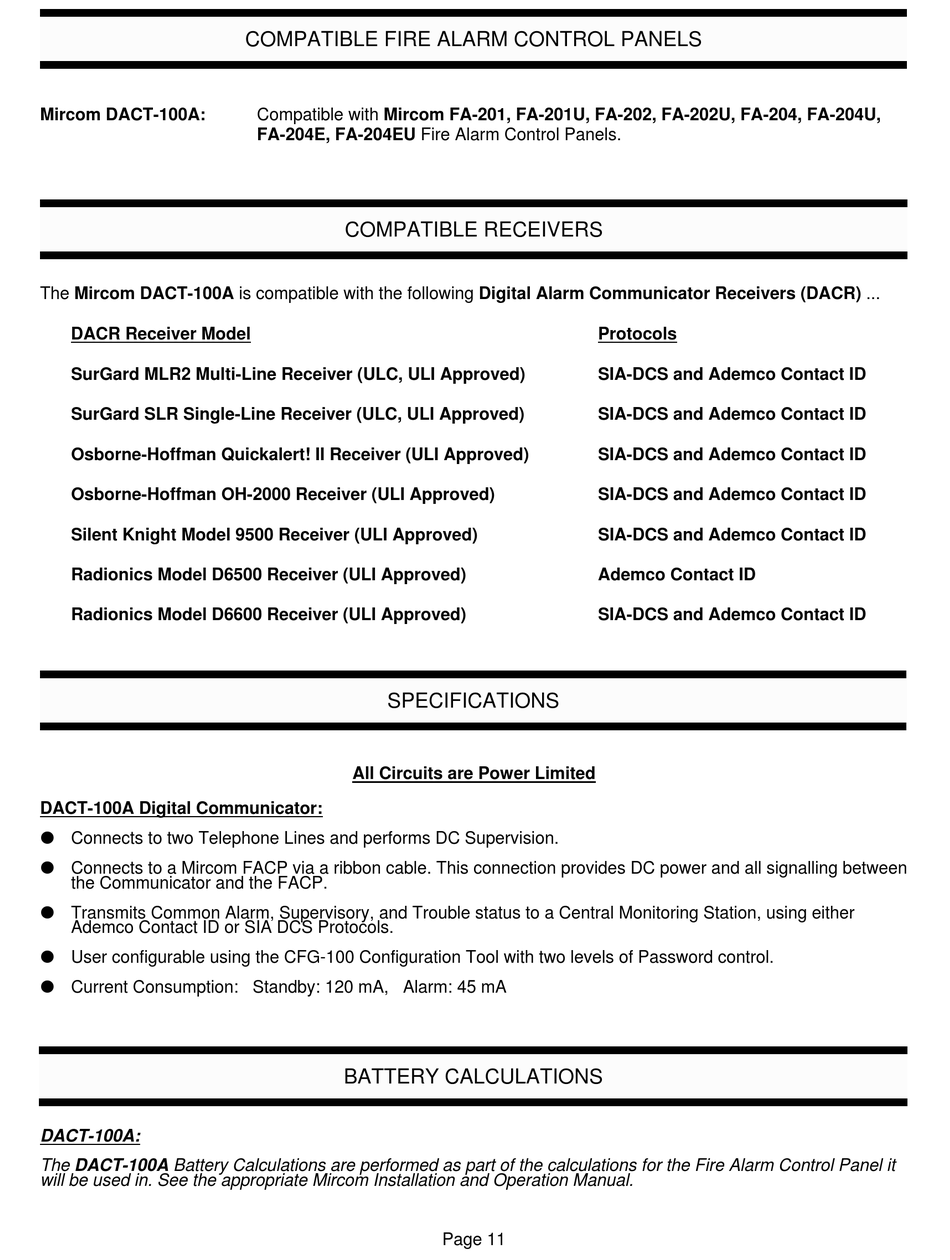

Mircom DACT-100A:

The Mircom DACT-100A is compatible with the following Digital Alarm Communicator Receivers (DACR) ...

DACR Receiver Model

SurGard MLR2 Multi-Line Receiver (ULC, ULI Approved)

SurGard SLR Single-Line Receiver (ULC, ULI Approved)

Osborne-Hoffman Quickalert! II Receiver (ULI Approved)

Osborne-Hoffman OH-2000 Receiver (ULI Approved)

Silent Knight Model 9500 Receiver (ULI Approved)

Radionics Model D6500 Receiver (ULI Approved)

Radionics Model D6600 Receiver (ULI Approved)

DACT-100A Digital Communicator:

M Connects to two Telephone Lines and performs DC Supervision.

M Connects to a Mircom FACP via a ribbon cable. This connection provides DC power and all signalling between

the Communicator and the FACP.

M Transmits Common Alarm, Supervisory, and Trouble status to a Central Monitoring Station, using either

Ademco Contact ID or SIA DCS Protocols.

M User configurable using the CFG-100 Configuration Tool with two levels of Password control.

M Current Consumption: Standby: 120 mA, Alarm: 45 mA

DACT-100A:

The DACT-100A Battery Calculations are performed as part of the calculations for the Fire Alarm Control Panel it

will be used in. See the appropriate Mircom Installation and Operation Manual.
