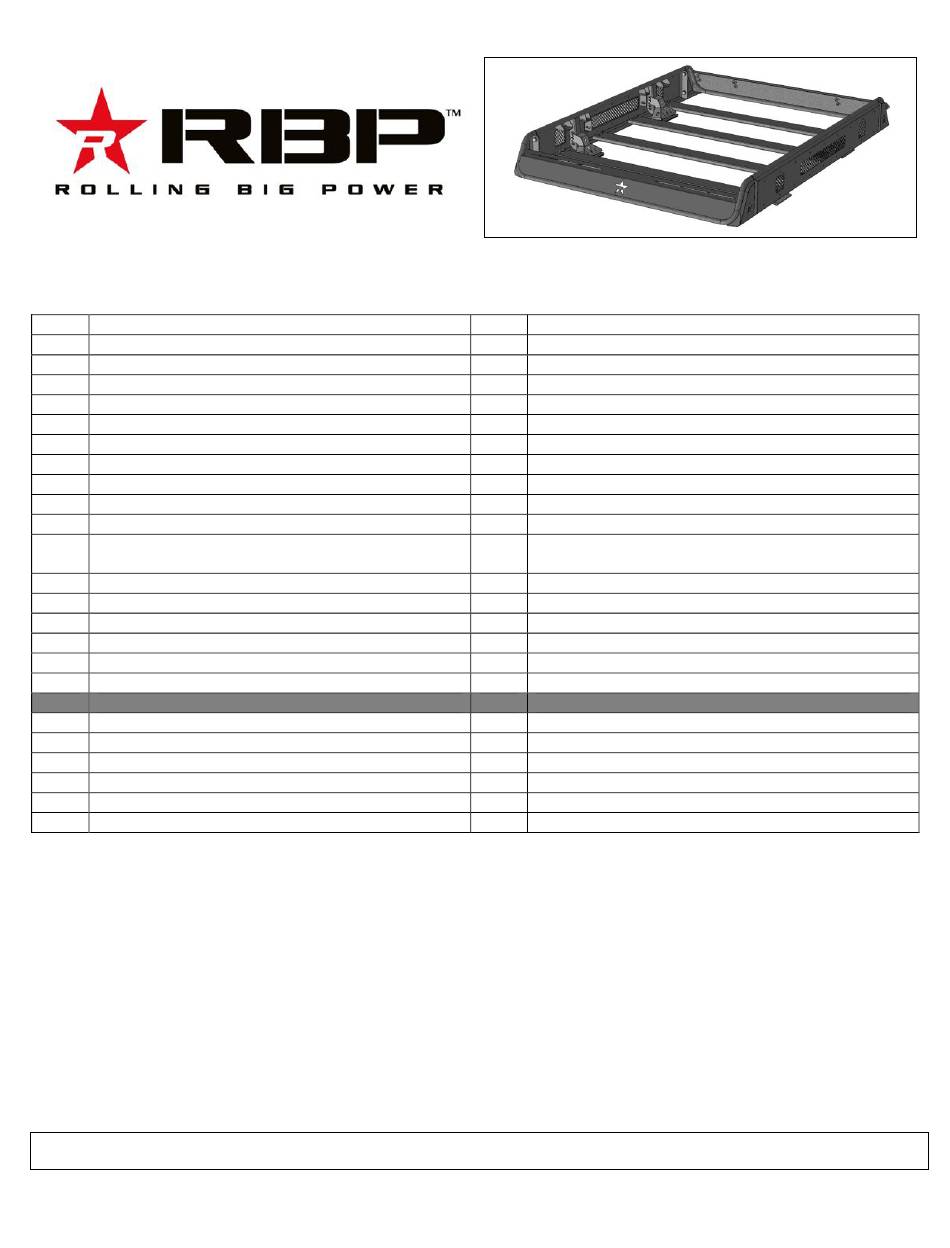

RBP-
2011 - 2018 FORD F250-550 SUPER DUTY CREW CAB, 2009 –
2018 RAM 1500-3500 CREW CAB CHASE RACK ROOF BASKET
Qty
1
Front Facing Logo Panel
1
Rear Facing Panel (tall w-light mount holes)
2
Side Panels (use left or right)
4
Cross Rails
4
Mounting Brackets
4
6mm Steel spacers (17-18 Ford Model)
4
5mm Steel spacers (11-16 Ford Model)
4
2mm Rubber Seals (17-18 Ford Model)
4
2mm Rubber Seals (11-16 Ford Model)
4
2mm 6-hole Rubber Seals (all models)
1mm thick Adhesive Tape (use between side
4
and end panels)
2
Left Rear LED Brackets
2
Right Rear LED Brackets
4
Side "L" LED brackets
16
10-1.50mm Threaded Inserts
1
10mm Threaded Insert Install Tool
Tape Measure
Electric Drill
17/32" Drill Bit
Dill Bit Stop
3/8" Ratchet
STEP 1- Carefully unwrap the (2) Side Panel Assemblies and Front and Rear Panels. Place
the parts on a clean and stable work surface. If necessary, use the packing materials to
protect the finish on the individual parts.
STEP 2- Select (1) Side Panel Assembly. Attach (1) 1mm Foam Seal to the end of the Side
Panel, (Figure 1). Attach the Front Panel to the Side Panel with (2) 12mm x 30mm Hex Bolts,
(4) 12mm Flat Washers, (2) 12mm Lock Washers and (2) 12mm Hex Nuts. Do not tighten at
this time. Repeat this Step to attach the remaining end of the Front Panel to the second Side
Panel Assembly, (Figure 2).
13000 TEMPLE AVE, CITY OF INDUSTRY, CA. 91746, 877-519-9090
Description
Tools Required
Page 1 of 7
Qty
8
12-1.75mm x 30mm Hex Bolts
16
12mm x 24mm x 2.5mm Flat Washers
8
12mm Lock Washers
8
12-1.75mm Hex Nuts
17
10-1.50mm x 30mm Hex Bolts
17
10mm x 30mm x 2.50mm Flat Washers
16
10mm Lock Washers
8
8-1.25mm x 70mm Hex Bolts
20
8-1.25mm x 20mm Hex Bolts
16
8-1.25mm x 25mm Combo Hex Bolts
32
8mm x 24mm OD x 2mm Flat Washers
16
8mm x 16mm OD x 1.6mm Flat Washers
28
8mm Lock Washers
20
8-1.25mm Hex Nuts
36
Decorative 8-1.25mm x 16mm Allen Head Bolts
36
Decorative 8-1.25mm Flange Hex Nut
1
Wrench (5mm)
16mm. 17mm, 18mm Sockets
16mm. 17mm, 18mm Wrenches
12mm, 13mm Sockets
12mm, 13mm Wrenches
Removable Tape (masking tape)
Silicone Sealant
Description
7/6/18 REV1 (DP)
Advertisement
Table of Contents
Related Manuals for RBP RBP-FSRB1118
Summary of Contents for RBP RBP-FSRB1118
- Page 1 RBP- 2011 - 2018 FORD F250-550 SUPER DUTY CREW CAB, 2009 – 2018 RAM 1500-3500 CREW CAB CHASE RACK ROOF BASKET Description Description Front Facing Logo Panel 12-1.75mm x 30mm Hex Bolts Rear Facing Panel (tall w-light mount holes) 12mm x 24mm x 2.5mm Flat Washers...
- Page 2 STEP 3- Repeat Step 2 to attach the Rear Panel Assembly to the (2) Side Panels. This completes the four sides to the outer Basket. STEP 4- Select (1) Cross Brace. Attach the Cross Brace to the front mounting pads on the left and right Side Panels with (4) 8mm Combo Bolts, (Figure 2).
- Page 3 2. Lift up driver/left front corner of Basket assembly. Slide (1) Spacer with Seal into channel in roof and under Bracket assembly, (Figures 9 & 10). Line up slots in Spacer with Bracket assembly. Repeat this Step to install remaining (3) Spacers. 3.
- Page 4 STEP 16- Install all (36) Decorative 8mm x 16mm Button Head Bolts and 8mm Flange Nuts at this time if desired, (Figure 18). (2) 12mm x 30mm Hex Bolts (4) 12mm Flat Washers Foam Seal (2) 12mm Lock Washers (2) 8mm Combo Bolts (2) 12mm Hex Nuts Rear Rear...
- Page 5 11-16 Ford 17-18 Ford 09-18 Ram (Fig 5) Determine best slots to use for make & model. Illustration provided for example only (Fig 6) 11-16 Ford models, apply Rubber Seal to Narrow Spacer. Place Spacer with Rubber Seal down against roof, into channel in roof and under center slots in Bracket (See Fig 6) 17-18 Ford models, apply Rubber Seal to Wide Spacer.
- Page 6 10mm Hex Bolt 10mm Flat Washer 10mm Insert Tool 10mm Threaded Insert (Fig 10) 17-18 Ford models, slide Spacer into (Fig 11) Assemble Tool channel in roof and under inner slots in Bracket and Threaded Insert (arrow). Spacer not required for Ram models (4) 10mm Hex Bolts (4) 10mm Lock Washers (4) 10mm Flat Washers...
- Page 7 (4) 10mm Hex Bolts Rear (4) 10mm Lock Washers (4) 10mm Flat Washers Side Panel illustrated “open” to show Bracket installation only (Fig 15) 09-18 Ram models, attach Bracket directly to Threaded Inserts in roof. Spacers are not required for Ram models Rear 8mm x 20mm Hex Bolt (2) 8mm Flat Washers...
