- Page 1 INSTALLATION GUIDE INSTALLATION COVERS PART# RBP-306-SP FOR APPLICATIONS: 1999-2016 Ford F250/F350 Crew Cab...
- Page 2 Your Complete Satisfaction is Our Number One Goal at Rolling Big Power - your satisfaction is why we’re in business. If for any reason your experience with our product was anything less than amazing, please reach out to us. We’d love to have the opportunity to provide the product experience and service you deserve.
- Page 3 CONTENTS ENGLISH Product Technical Specifications Product Packing List Installation Warranty Information 1-877-519-9090...
- Page 4 PRODUCT TECHNICAL SPECIFICATIONS Rated Voltage: 12V Load Rating: 600 lbs per side Gross Weight: 55 lbs Horizontal Extension: 8.5” (Horizontal distance between the edge of power board and the vehicle door when the board extends) Step Height: 15.1” (Vertical height difference between the edge of power board and the vehicle door while board extending.) WARNING: Keep a minimum of 10”...

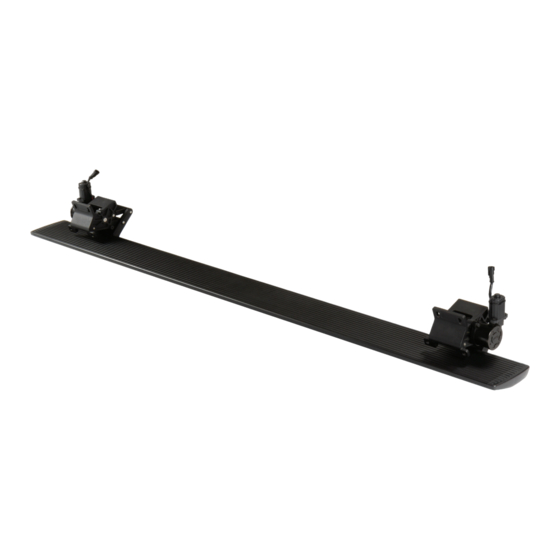

- Page 5 Stealth Power™ Running Board Parts List Please verify that all listed components were included in your package. If not, please call our team at 877-519-9090 for assistance. Left Front Motor Linkage Right Front Motor Linkage Spring Nut x 8 Hexagon Head Bolt x 8 Left Rear Motor Linkage Right Rear Motor Linkage Spring washer x 8...
- Page 6 PRODUCT PACKING LIST Notice: As shown in the picture, there is a four- conductor plug, a six-conductor plug, a black two- conductor plug, and a red two-conductor plug. Controller Assembly LED lights Motor LED lights Motor Disable switch Motor High Temperature LED lights Protective Sleeve Motor...
- Page 7 INSTALLATION INSTRUCTIONS PASSENGER SIDE FRONT MOTOR MOUNT Step 1: Disconnect the battery. Begin with CONTROLLER MOUNT the negative battery terminal, followed by the positive terminal. Front REAR MOTOR MOUNT Step 1 Step 2: Install the front Passenger side motor using Step 3: Install the rear Passenger side motor using four three hex bolts and one spring nut to fasten the hex bolts and two spring nut to fasten the motor to the...
- Page 8 INSTALLATION INSTRUCTIONS Step 4: Install the Driver Side running board. 4a. Begin by propping up the running board on the front and rear motor assembly bases. 4b. Next align the sliding T-Nut blocks on the running board with the slots on the front and rear motor base. Step 4a Step 4b 4c.
- Page 9 INSTALLATION INSTRUCTIONS Step 8. Plug the harness into the controller making sure to align the arrows on the small round connectors. Step 9: Route the electrical harness from the controller along the frame rail of the truck. Connect the male connector on the wire harness into the female connector on the motors.
- Page 10 INSTALLATION INSTRUCTIONS Step 12: Connect the male plug connector on the wire harness into the female socket on the motors. The harness is labeled Front Left for the front Driver side motor and Rear Left for the rear Driver side motor. Step 13: Align the arrows on the small round connectors and plug the Driver side front and rear LED lights.
- Page 11 INSTALLATION INSTRUCTIONS Step 17: The door trigger sensor harness will need a ground connection to the vehicle. Using a drill, install the self tapping screw below the seat belt mechanism on the passenger side b-pillar as shown. Secure the blade connector on the sensor harness using the self-tapping screw.
- Page 12 INSTALLATION INSTRUCTIONS Step 21: Apply a vertically oriented strip of masking tape on the rear passenger side door jamb using the outer edge of the door detent as a reference point. Make a mark 2.0” above the center line of the door detent. Lift the bulb door seal to route the sensor wire underneath it.
- Page 13 “I” or On position. Thank you for choosing RBP! We hope you enjoy your new Stealth Power Running Boards. We would love to hear about your experience and see your vehicle decked out with our products.
- Page 14 During the 5-year warranty period, RBP provides free replacement for any manufacturer’s defects. RBP reserves the right to replace any individual component of the system, or the entire system at its sole discretion. RBP provides a limited lifetime warranty against rust on the running board assemblies for the original purchaser.
- Page 15 · Any product improperly installed, altered, lack of or improper maintenance or improper use of our products. · No proof of purchase or RBP warranty registration as noted above · Purchased from an unauthorized reseller · Failure due to misuse, abuse, neglect or impact/collision ·...
- Page 16 FOLLOW US WWW.ROLLINGBIGPOWER.COM 1-877-519-9090 ® WWW.ROLLINGBIGPOWER.COM...
