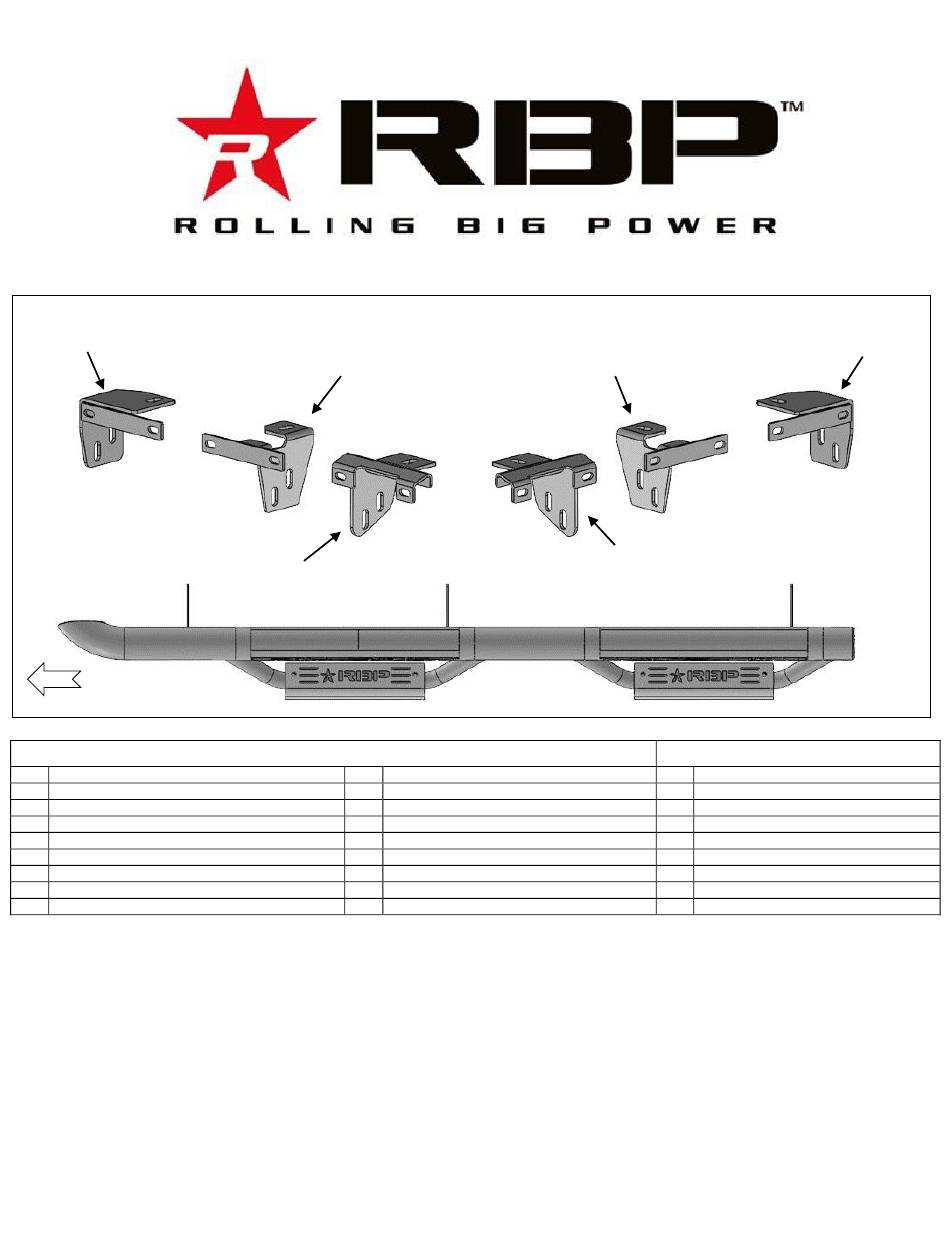

2018 + JEEP WRANGLER JL 4DOOR RX7 SIDE STEPS
Passenger/Right
Rear Mounting Bracket
Passenger/Right
Front Mounting Bracket
Driver/Left
Side Step
Front
1
Driver/Left RX7 Side Step
1
Passenger/Right RX7 Side Step
1
Driver/Left Front Mounting Bracket
1
Passenger/Right Front Mounting Bracket
1
Driver/Left Center Mounting Bracket
1
Passenger/Right Center Mounting Bracket
1
Driver/Left Rear Mounting Bracket
1
Passenger/Right Rear Mounting Bracket
12
10-1.5mm x 35mm Hex Bolts
STEP 1- Remove any old steps or factory installed side product and hardware from vehicle.
STEP 2- Start installation on the Driver/Left side of the vehicle. Locate the (3) pairs of holes in the pinch weld,
(Figure 1). Move to the front mounting location, (Figure 2). Select the Driver/Left Front Mounting Bracket.
Attach the Bracket to the floor panel with (1) 8mm Hex Bolt, (1) 8mm Lock Washer and (1) 8mm Flat Washer,
(Figure 3). Attach the Bracket to the pinch weld with (2) 6mm Hex Bolts, (4) 6mm Flat Washers and (2) 6mm
Nylon Lock Nuts, (Figure 3). Do not tighten hardware at this time.
STEP 3- Move to the center location, (Figure 4). Select the Driver/Left Center Mounting Bracket. Repeat Steps 2
& 3 to attach the Center Bracket to the center mounting location, (Figure 5).
STEP 4- Move to the rear location, (Figure 6). Select the Driver/Left Rear Mounting Bracket. Repeat Steps 2 & 3
to attach the Rear Bracket to the rear mounting location, (Figure 7).
1300 TEMPLE AVE, CITY OF INDUSTRY CA 91746 1-800-237-7506
Passenger/Right
Center Mounting Bracket
HARDWARE INCLUDED
24
12
6
6
6
12
24
12
Driver/Left Center
Mounting Bracket
Driver/Left Front
Mounting Bracket
10mm x 27mm OD x 3mm Flat Washers
10mm Nylon Lock Nuts
8-1.25mm x 35mm Hex Bolts
8mm Lock Washers
8mm x 28mm OD x 3mm Flat Washers
6-1.0mm Hex Bolts
6mm x 22mm OD x 2mm Flat Washers
6mm Nylon Lock Washers
Page 1 of 3
RBP-510-RX7
Driver/Left Rear
Mounting Bracket
RECOMMENDED TOOLS
1
17mm Wrench and /or Socket
1
13mm Wrench and/or Socket
1
10mm Wrench and/or Socket
05/14/20
