Installation Requirements; Installation Sites; Electrical Connections; Hydraulical Connections - Cornelius LOOP STYLE XL CC Manual


4

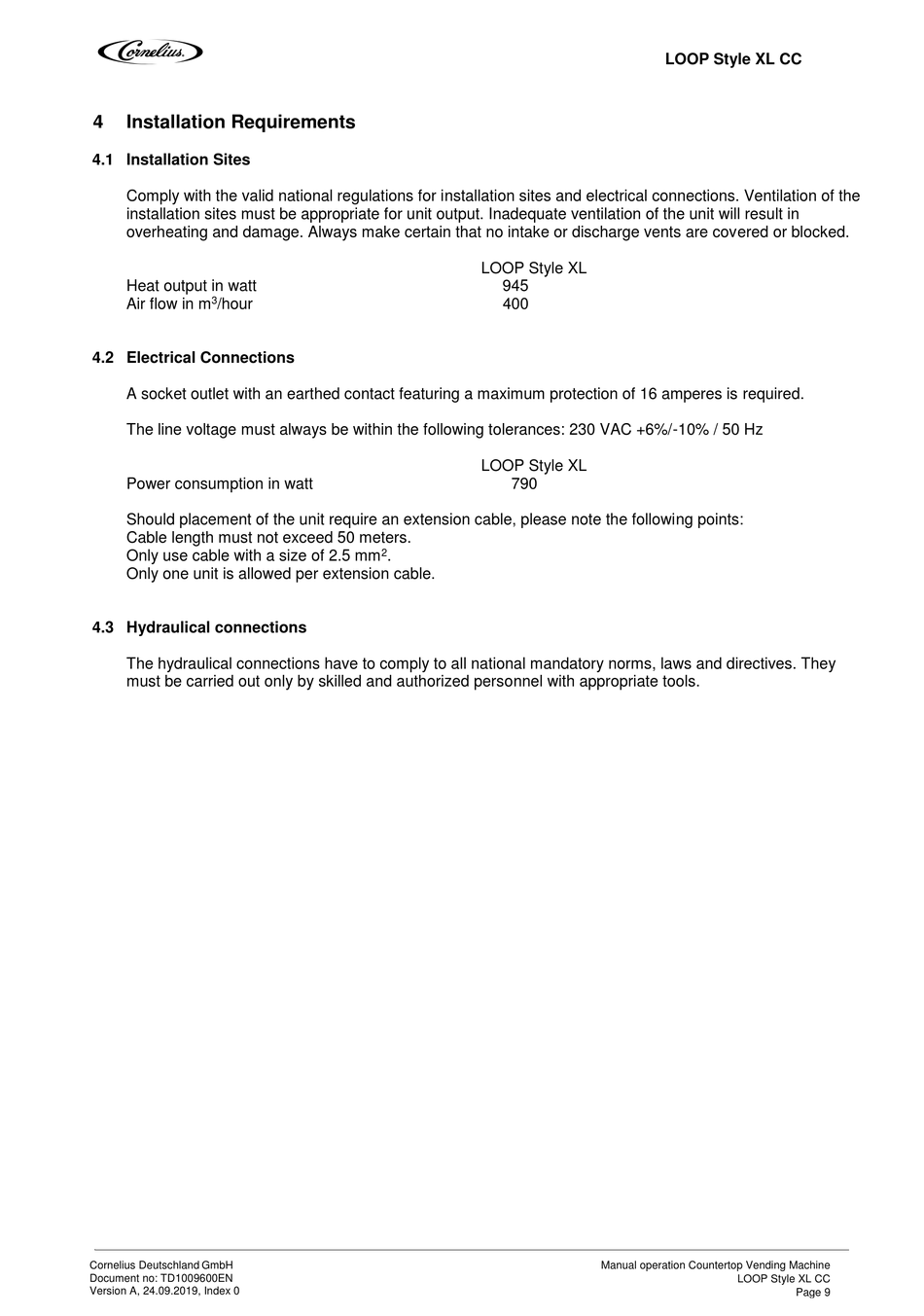

Installation Requirements

4.1 Installation Sites

Comply with the valid national regulations for installation sites and electrical connections. Ventilation of the
installation sites must be appropriate for unit output. Inadequate ventilation of the unit will result in
overheating and damage. Always make certain that no intake or discharge vents are covered or blocked.
Heat output in watt
3
Air flow in m /hour

4.2 Electrical Connections

A socket outlet with an earthed contact featuring a maximum protection of 16 amperes is required.
The line voltage must always be within the following tolerances: 230 VAC +6%/-10% / 50 Hz
Power consumption in watt
Should placement of the unit require an extension cable, please note the following points:
Cable length must not exceed 50 meters.
Only use cable with a size of 2.5 mm
Only one unit is allowed per extension cable.

4.3 Hydraulical connections

The hydraulical connections have to comply to all national mandatory norms, laws and directives. They
must be carried out only by skilled and authorized personnel with appropriate tools.
Cornelius Deutschland GmbH
Document no: TD1009600EN
Version A, 24.09.2019, Index 0
LOOP Style XL
945
400
LOOP Style XL
790
2
.
LOOP Style XL CC
Manual operation Countertop Vending Machine
LOOP Style XL CC
Page 9
