8

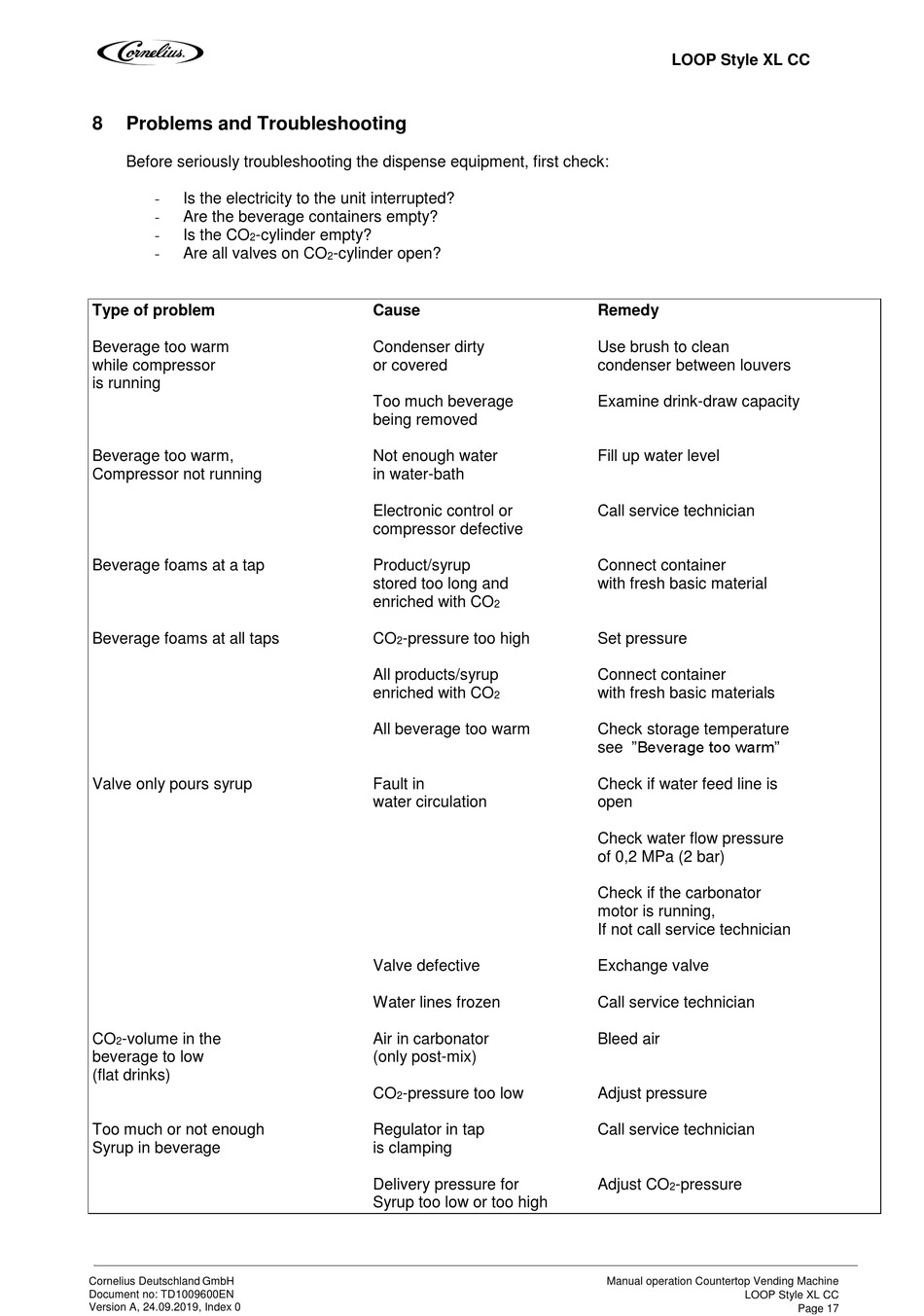

Problems and Troubleshooting

Before seriously troubleshooting the dispense equipment, first check:
- Is the electricity to the unit interrupted?
Are the beverage containers empty?
-
Is the CO -cylinder empty?
-
2
Are all valves on CO
-
Type of problem
Beverage too warm
while compressor
is running
Beverage too warm,
Compressor not running
Beverage foams at a tap
Beverage foams at all taps
Valve only pours syrup
CO -volume in the
2
beverage to low
(flat drinks)
Too much or not enough
Syrup in beverage
Cornelius Deutschland GmbH
Document no: TD1009600EN
Version A, 24.09.2019, Index 0
-cylinder open?
2
Cause
Condenser dirty
or covered
Too much beverage
being removed
Not enough water
in water-bath
Electronic control or
compressor defective
Product/syrup
stored too long and
enriched with CO
2
CO -pressure too high
2
All products/syrup
enriched with CO
2
All beverage too warm
Fault in
water circulation
Valve defective
Water lines frozen
Air in carbonator
(only post-mix)
CO -pressure too low
2
Regulator in tap
is clamping
Delivery pressure for
Syrup too low or too high
LOOP Style XL CC
Remedy
Use brush to clean
condenser between louvers
Examine drink-draw capacity
Fill up water level
Call service technician
Connect container
with fresh basic material
Set pressure
Connect container
with fresh basic materials
Check storage temperature
see "Beverage too warm"
Check if water feed line is
open
Check water flow pressure
of 0,2 MPa (2 bar)
Check if the carbonator
motor is running,
If not call service technician
Exchange valve
Call service technician
Bleed air
Adjust pressure
Call service technician
Adjust CO -pressure
2
