5

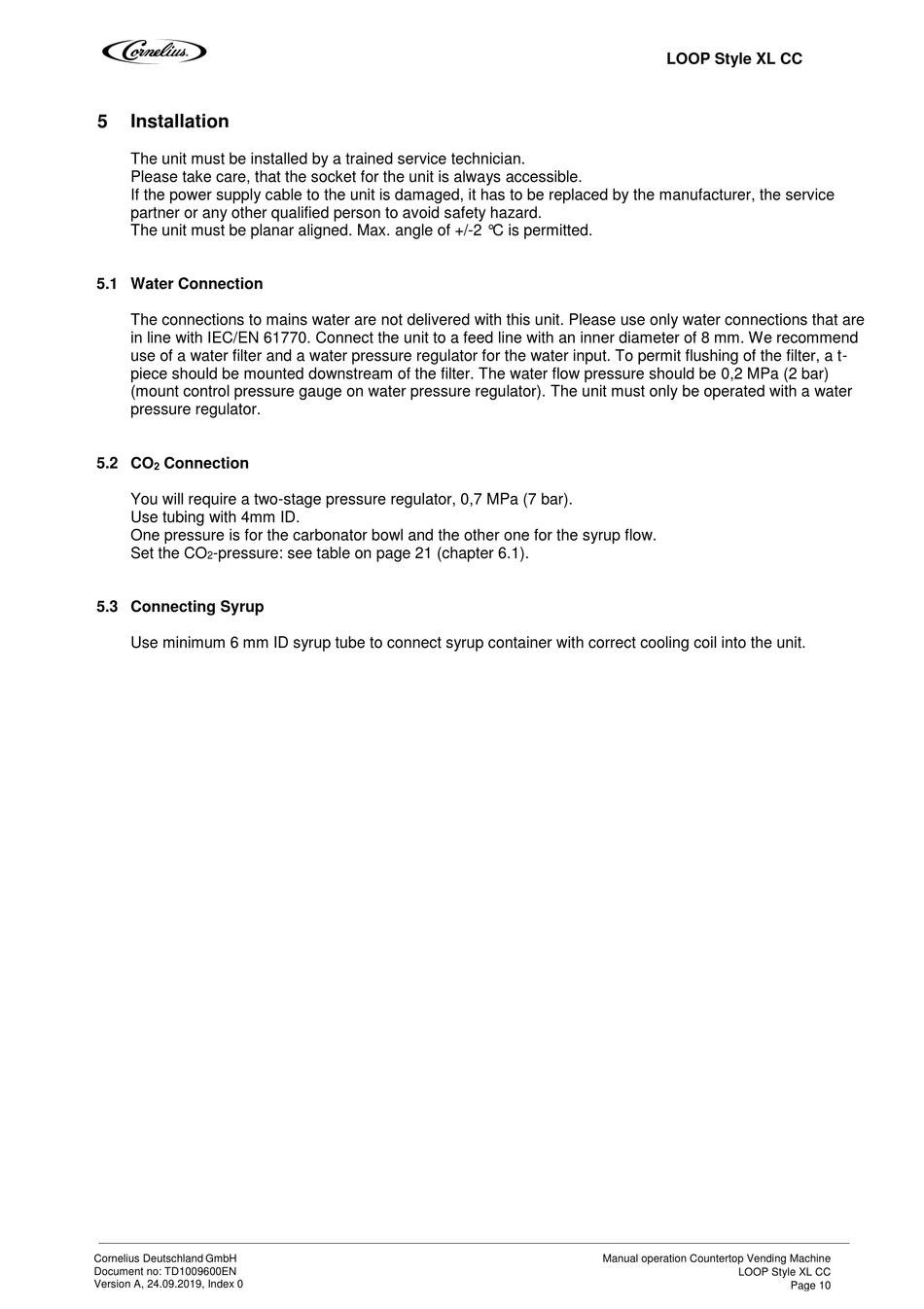

Installation

The unit must be installed by a trained service technician.
Please take care, that the socket for the unit is always accessible.
If the power supply cable to the unit is damaged, it has to be replaced by the manufacturer, the service
partner or any other qualified person to avoid safety hazard.
The unit must be planar aligned. Max. angle of +/-2 °C is permitted.

5.1 Water Connection

The connections to mains water are not delivered with this unit. Please use only water connections that are
in line with IEC/EN 61770. Connect the unit to a feed line with an inner diameter of 8 mm. We recommend
use of a water filter and a water pressure regulator for the water input. To permit flushing of the filter, a t-
piece should be mounted downstream of the filter. The water flow pressure should be 0,2 MPa (2 bar)
(mount control pressure gauge on water pressure regulator). The unit must only be operated with a water
pressure regulator.
5.2 CO Connection
2
You will require a two-stage pressure regulator, 0,7 MPa (7 bar).
Use tubing with 4mm ID.
One pressure is for the carbonator bowl and the other one for the syrup flow.
Set the CO -pressure: see table on page 21 (chapter 6.1).
2

5.3 Connecting Syrup

Use minimum 6 mm ID syrup tube to connect syrup container with correct cooling coil into the unit.
