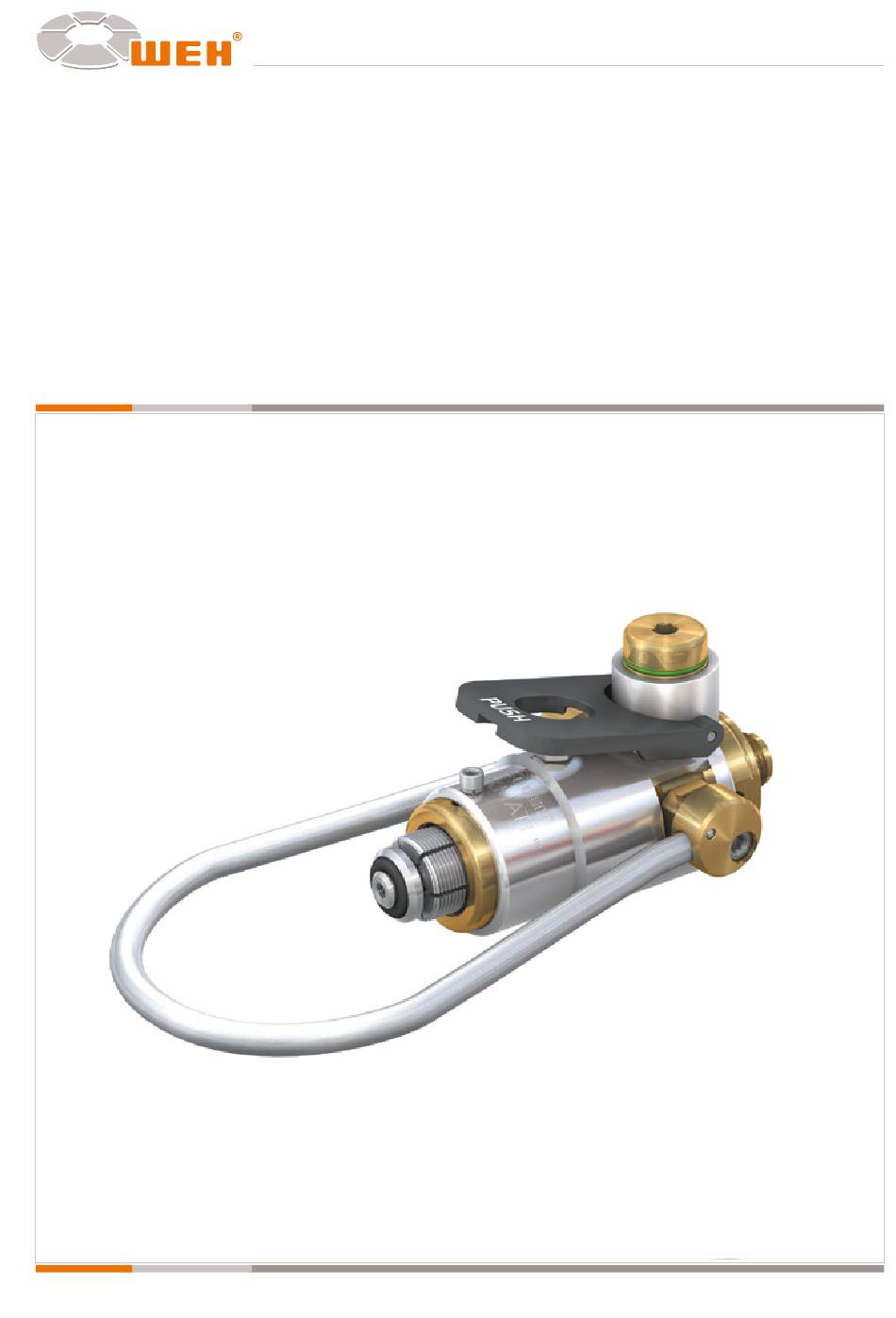

- Page 1 OPERATING INSTRUCTIONS D-2007/10/00250-8-3 | Date: 08/2019 CLICKMATE™ TW154 for filling respiratory air cylinders 200 bar for direct connection to the filling hose ® - We Engineer Hightech...
-
Page 2: Table Of Contents
CLICKMATE™ TW154 - 200 bar Operating instructions Date: 08/2019 CONTENTS PLEASE NOTE � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 1 GENERAL SAFETY INSTRUCTIONS �... -
Page 3: Please Note
WEH QA management in writing� Violation of WEH operating instructions will result in a loss of warranty and in addition the WEH GmbH will accept no liability for consequential damage caused to persons or property�... -
Page 4: Application
250 bar (PS) and a temperature range of +5 °C bis +70 °C. Please observe the pressure limits specified in the relevant cylinder valve standard. This could be ® lower than the max. operating pressure of the WEH Connector. 2�1�4 Safety chains, ropes or guards are recommended for additional operator safety when used under hazardous conditions. - Page 5 This could cause leakage. 3�1�6 The torques given are max. values, only valid for components delivered by WEH. The customer is responsible to check if his components withstand the torques determined by WEH as max. values.
-
Page 6: Operation
When using pallets, make sure that no accumulation of escaping air may occur. ® 4�1�6 For easy handling, we recommend to use the WEH Swivel joint TD1 to prevent twisting of the hose when connecting. Figure 2 NOTE: The CLICKMATE™... - Page 7 CLICKMATE™ TW154 - 200 bar Operating instructions Date: 08/2019 WRONG RIGHT Green ring Green ring Grüner Ring not visible visible sichtbar Red marking Red marking visible not visible The CLICKMATE™ TW154 200 bar is only connected properly if the green ring (visual inspection, see pictures above) is completely visible and the red marking at the front part is not visible.
-
Page 8: Accessories | Spare Parts
Protect the connector against damage, dirt ingress, improper storage and excessive temperature fluctuations. 7 MAINTENANCE Violation of WEH maintenance instructions will result in a loss of warranty and in addition the WEH GmbH will accept no liability for consequential damage caused to persons or property. HINWEIS: If damages or limitations of the functionality are noted, measures according to the table on page 11 must be taken. - Page 9 15 and 20 bar and retract when the system is vented. If the safety peg does not function properly or is deformed, return the CLICKMATE™ TW154 200 bar to WEH for change of the safety peg. Figure 10 7�2�6...
-
Page 10: Replacement Of Front Seal
CLICKMATE™ TW154 - 200 bar Operating instructions Date: 08/2019 8 REPLACEMENT OF FRONT SEAL Note: Before installing, visually inspect the connector and check for correct type, body material, clamping jaws, seal material and part number� 8�1 Replacement of the front seal There is no need to dismantle the CLICKMATE™... -
Page 11: Trouble Shooting | Corrective Action
Blow-off sound pressure increases. Valve thread damaged should be stopped or Exchange valve. continued. Stop filling. Send CLICKMATE™ to WEH for change of Safety peg distorted. the safety peg. Safety peg does not protru- Feeling at outlet or visual Insufficient... -
Page 12: Dimensions
200 bar * acc. to DIN 477 » Contacting For queries and further information, please do not hesitate to contact us. Manufacturer: WEH GmbH Precision Connectors Josef-Henle-Straße 1 89257 Illertissen / Germany Phone: +49 7303 9609-0 Fax: +49 7303 9609-9999 eMail: sales@weh.com...
