Fuse Replacement - Altronix ReServ1 Quick Manual

Fuse Replacement:

1. Before replacing fuses slide switch to OFF position.
2. Replace AC outputs fuses F1 or F4 with fuses rated @ 3 amp/32V.
Replace DC outputs fuses F1 or F4 with fuses rated @ 3 amp/32V .

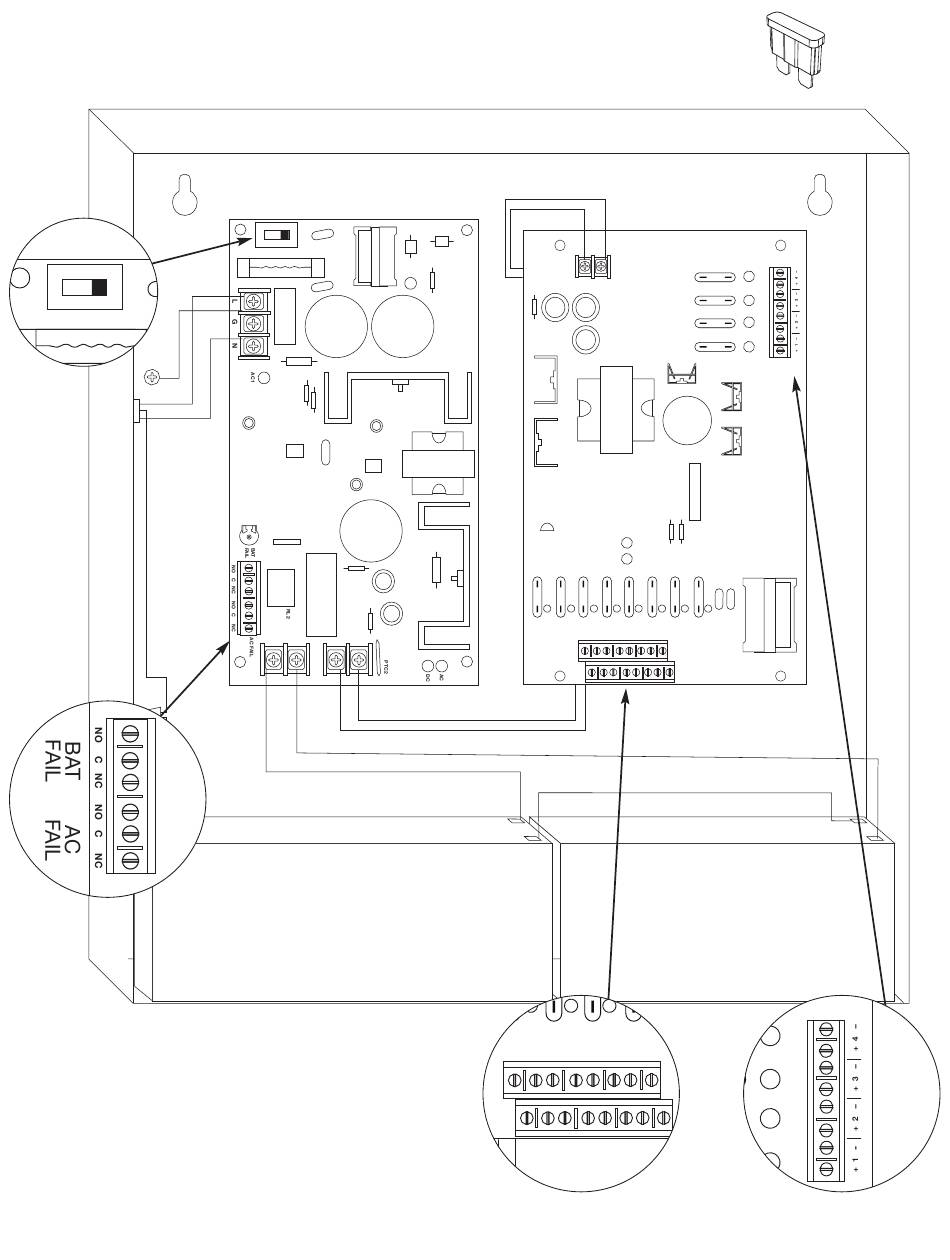

Fig. 1
