J U S T P L A Y I T
TOP248 258
Dynamic Microphone
User Guide
G O A N G - F A N N C O . , L T D .
2007, SUPERLUX I
LB1TOP24801EN (Rev. 1)

Specifications

Type
Dynamic microphone
Element
Nd magnet and transformer output circuit
Polar pattern
Unidirectional (Super Cardioid), rotationally symmetrical about
microphone axis, uniform with frequency. (Figure 1)
Frequency response
50 to 16,000 Hz (Figure 2)
Sensitivity
(at 1,000 Hz Open Circuit Voltage)
-54dBV/Pa (2.0mV/Pa)
1Pa=94dB SPL
Rated impedance
300Ω
Ω
Max. SPL
(1 k load)
≦
150dB SPL (THD 0.5% 1kHz)
Polarity
Pin 2 output positive voltage (related to pin 3) when diaphragm
receives positive pressure. (Diaphragm moving inward)
Connector
3 pin male XLR type
Finish
Black rubber finish
Dimensions
Φ54.0mm(2.13in.) X 180.0mm(7.09in.) (Figure 3)
Net weight
TOP248: 340g(11.58 oz.)
TOP248S: 340g(11.58 oz.)
TOP258: 345g(12.17 oz.)
nc.
250 Hz 2000 Hz
500 Hz 4000 Hz
1000 Hz 8000 Hz
TOP248/248S
TYPICAL POLAR PATTERN
250 Hz 2000 Hz
500 Hz 4000 Hz
1000 Hz 8000 Hz
TOP258
TYPICAL POLAR PATTERN
(Figure 1)
Frequency Response
dB
10
0
-10
-20
20 50 100 200 500 1000 2000 5000 10000 20000 Hz
FREQUENCY IN Hz
TOP248/248S
Frequency Response
dB
10
0
-10
-20
20 50 100 200 500 1000 2000 5000 10000 20000 Hz
FREQUENCY IN Hz
TOP258
TYPICAL FREQUENCY RESPONSE
(Figure2)
54.0mm 54.0mm
(2.13 in.) (2.13 in.) (2.13 in.) (2.13 in.)
52.5mm 52.5mm
(2.07 in.) (2.07 in.) (2.07 in.) (2.07 in.)
180.0mm
(7.09 in.) (7.09 in.)
OFF
25.0mm 25.0mm
(0.98 in.) (0.98 in.) (0.98 in.) (0.98 in.)
TOP248 on/off switch not included TOP258
TOP248S
Dimensions(Figure 3)

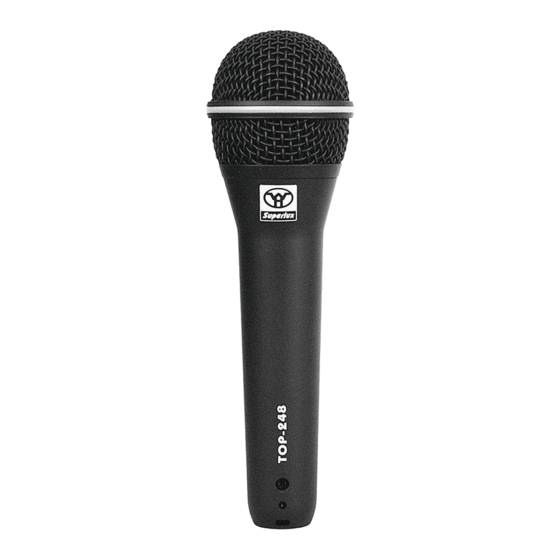

Description
The TOP248/248S/258 microphones are designed for professional vocal
and instrument live sound applications. These dynamic super cardioid
microphones incorporating neodymium magnets and aluminum voice
coil on the double membrane diaphragm and output transformer, that
provides higher output sensitivity, flat and wide frequency response. The
result is clean and detail sound texture demanded by the working
professionals.
The grill windscreen are made of strengthen metal mesh, added with zinc
alloy shaft and gold plated XLR 3 pin connectors provides sturdy
performance for heavy stage works.

Features

·
TOP248 ball grill windscreen are welcome by most signers.
·
TOP258 flat and smaller grill windscreen allows closer pickup for
instruments or for signer preference.
