Superlux E202 User Manual

E202/E205/E206
Studio Condenser Microphone
Designed for critical home/project/professional studio applications and live performance, these
side-address supercardioid studio condenser microphones deliver exceptional detail and low
noise. Along with its rugged construction and high-performance specifications, the E202, E205
and E206 provide an exceptional level of consistency from model to model. It comes equipped
with a pivoting stand mount and a protective pouch.
• High SPL handling and wide dynamic range provide unmatched versatility
• Custom-engineered low-mass diaphragm provides extended frequency response and
superior transient response
• Supercardioid directivity, high gain before feedback
E202 plus
• Large diaphragm delivers flat frequency response, making sound true and clear
E205 plus
• Smooth, natural sound and low noise
E206 plus
• The best value standard in side-address studio condenser microphone technology

Specifications

Type: Electret condenser
Polar Pattern: Supercardioid
Frequency Response:
E202: 20 – 20,000 Hz
E205: 30-18,000 Hz
E206: 50 – 18,000 Hz
Sensitivity(@1 kHz open circuit voltage):
E202: -47 dBV/Pa (4.5 mV)
E205: -38 dBV/Pa (12.6 mV)
E206: -40 dBV/Pa (10 mV)
1 Pascal=94 dB SPL
Output Impedance: 200 Ω
Min. Load Impedance: 1,000 Ω
S/N Ratio: > 72 dB
Equivalent noise level: < 22 dB SPL
Max. SPL: >135 dB SPL
Note: specifications are subject to change without notice.
Furnished Accessories:
Pivoting stand mount : HM85 for E202 and E205,HM86 for E206
Threaded adapter :YA2
Pouch
HM85 HM86
Dynamic Range: >113 dB SPL
Power Requirement: : 12-52V DC, 3.5mA
Polarity: Positive pressure on diaphragm
produces positive voltage on pin 2
with respect to pin 3
Finish: Black
Connector: Three-pin professional audio (XLR),
male
Dimensions:
E202: Ø60 × 156.5 mm (Ø2.36" × 6.16")
E205: Ø54 × 150 mm (Ø2.13" × 5.9")
E206: Ø45 × 132.5 mm (Ø1.8" × 5.2")
Net Weight:
E202: 630 g (22.2 oz)
E205: 400 g (14.1 oz)
E206: 300 g (14.1 oz)

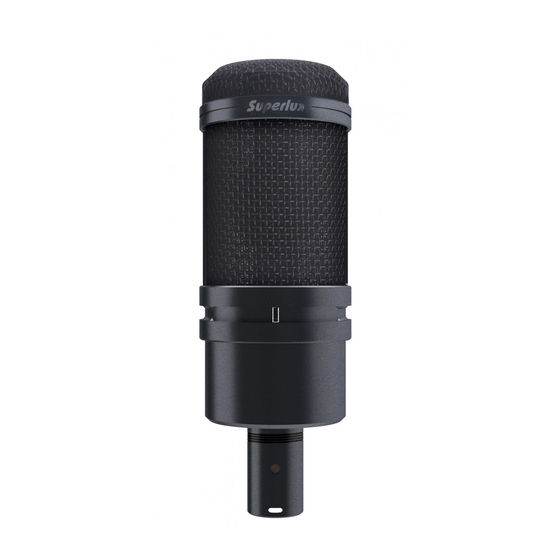

E202
E205
E206
YA2 Pouch

Optional Accessories:

Spider shockmount for
E202, E205 & 206 ...HM56

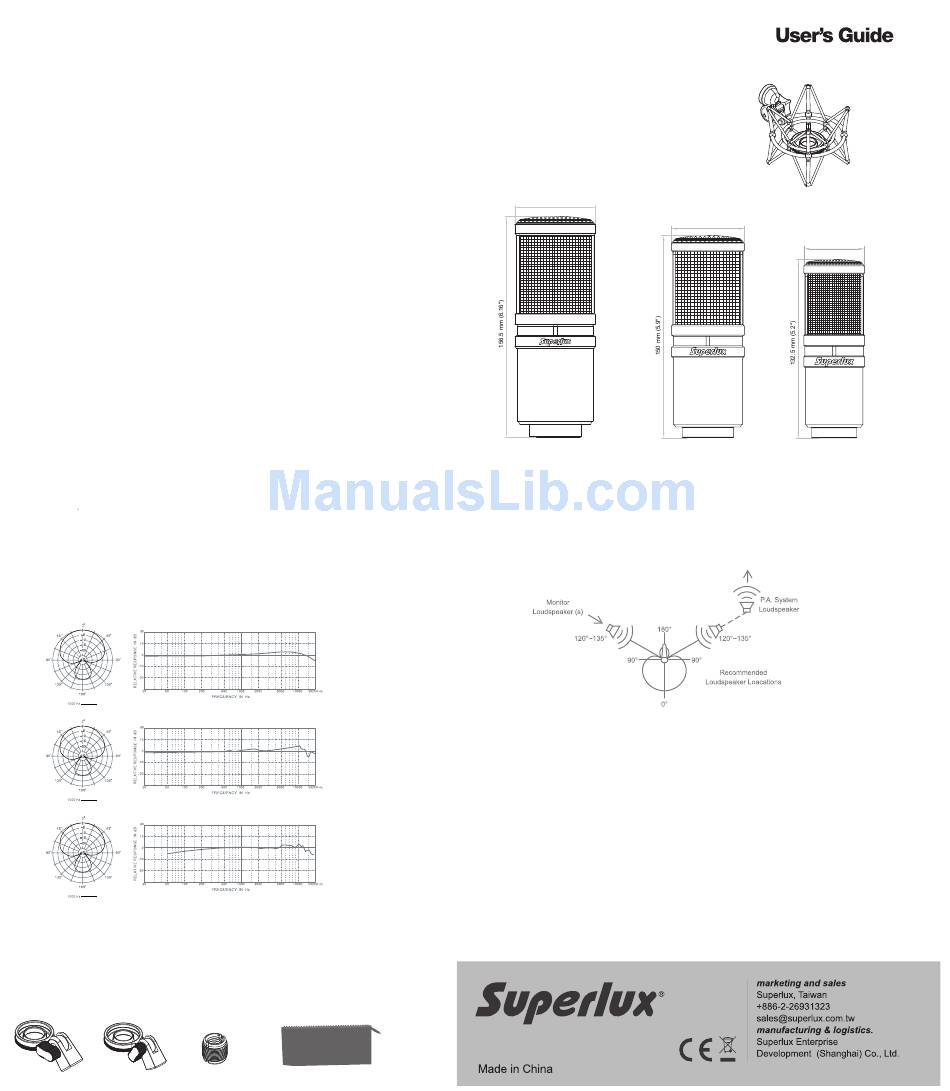

OVERALL DIMENSIONS:
Ø60 mm (Ø2.36")
E202

General Rules for Use

• For best signal to noise ratio, distance from the microphone to the sound source shall be as short
as possible.
• The sensitivity of a supercardioid microphone is highest on axis and lowest at 120 to 135 degrees.
• To reduce crosstalk between microphones, an 1:3 guide line shall be follow: The distance between
microphone A to the sound source A is " 1" , the distance between any other microphone to the
sound source A shall be more than 3 times.

Proximity Effect

When the supercardioid microphone get closer to the sound source, the low frequency response is
boosted, as so call "proximity effect". Experience engineer takes advantages of the proximity effect to
improve the richness of instrument sound or to increase the bass of the instrument as if an extremely
high quality equalizer is used. Same ideas to reduce the bass by increase the distance to reduce the
bass when needed.

Mounting the Microphone

Sturdy drum clamp and stand can set the microphone exactly at the sweet spot and keep it there.
Superlux provides wide range of drum clamps and stands for various demands. Please check on our
web site www.superlux.com.tw to get more information.

Maintenance

Microphones shall be kept in low humidity environment for best sound performance. Store the
microphones in air-conditioned room or dehumidifier to keep away from moisture. Clean air is another
important factor. Keep away from smoking environment to avoid tar residuals.
For more information please check on our web site www.superlux.com.tw, or contact
support@superlux.com.tw
P/N: LB100E2050102 2012 Dec
