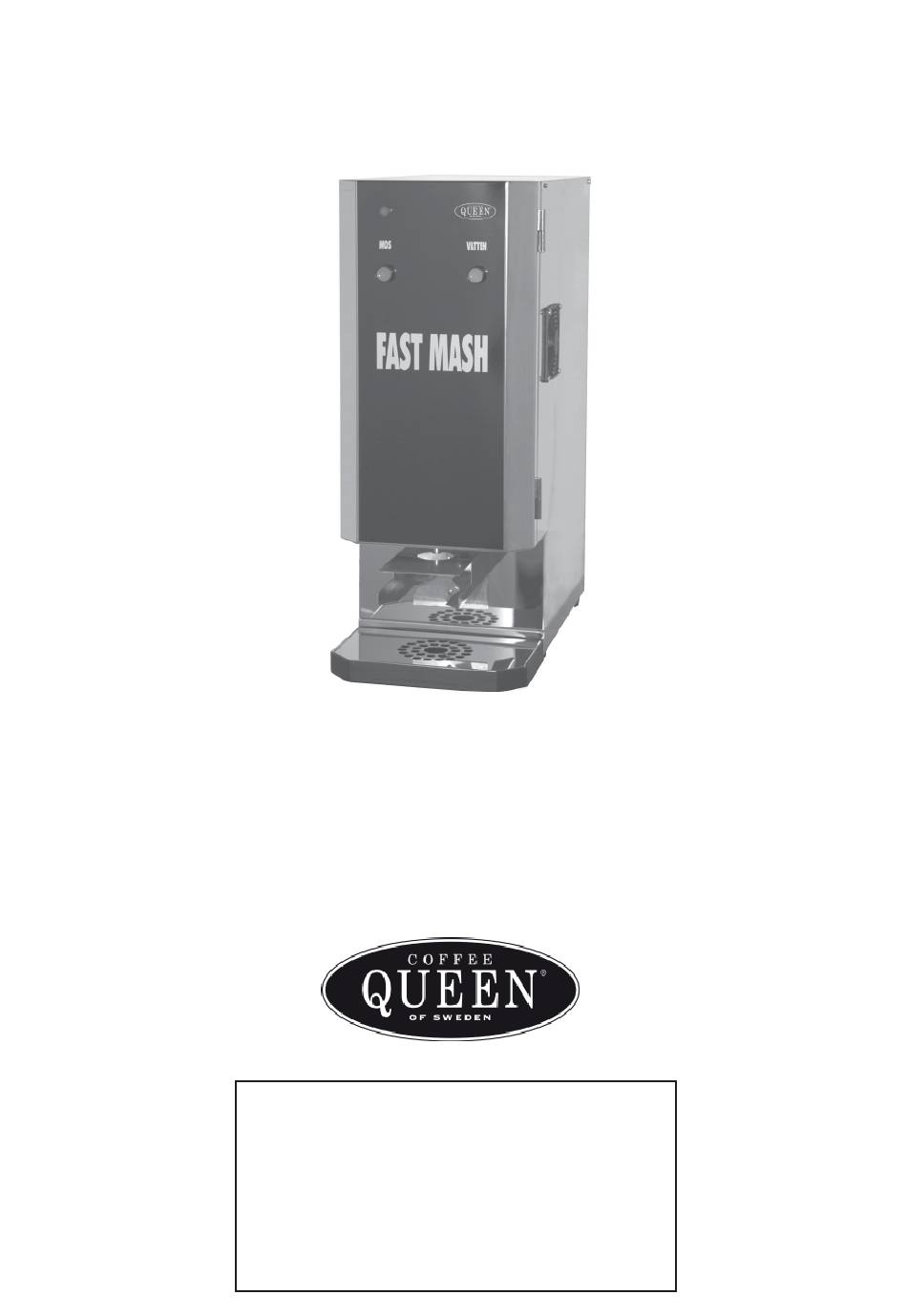

- Page 1 A TASTE OF THE FUTURE Manual COFFEE QUEEN FAST MASH Basic Your retail dealer ................S/GB Rev. 071214 ................................
-
Page 2: Installation And Start
Installation and start FastMash Basic Cold water connection; with a connection tube (1/2” R internal thread, enclosed. Consumption of current: 2, 2 Kw 1. Locate the machine on a flat level and water proof surface. 2. Ensure free circulation of air behind the machine (approximately 10 cm). 3. - Page 3 Installation and start FastMash Basic Adjusting of portion quantity 1. Open door. 2. Adjust time for full portion. Clockwise = larger (bigger)portion, Anticlockwise = smaller portion. Adjusting of consistency – Shall be done of a service technician! 1. Open door. 2.
- Page 4 Filling up concentrate Filling up concentrate 1. Open door. 2. Turn up chute. (from steam trap). 3. Lift out canister. 4. Fill concentrate (mash). 5. Turn down chute and make sure that chute from the canister will be in close contact with steam trap.
-
Page 5: Spare Parts List
Spare parts list FAST MASH Basic Description; Detail no; Pos. no; Amount/ detail; Heating element 2200W 160107 Solenoid valve 160230-05 Silicone grommet 160537-03 Plug solenoid valve 160538-03 Nipple ¼” x 8 mm 180158 Silicon hose non return valve L=37 cm 150501... - Page 6 Exploded view COFFEE QUEEN FAST MASH Basic...
-
Page 7: Electrical Diagram
ELECTRICAL DIAGRAM FAST MASH Basic... -
Page 8: For Service
Fast Mash Basic FOR SERVICE Please contact your retail dealer Your retail dealer ................................................COFFEE QUEEN AB, Box 960, 671 29 ARVIKA, besöksadress; Korpralsv 1B, Tel vxl; +46 (0)570-47700, Fax; +46 (0)570-47719 E-mail: info@coffeequeen.se www.coffeequeen.se Art. no. xxx xxxx...
