CREE LIGHTING ZR-RK Series Installation Instructions page 5

ELECTRICAL CONNECTIONS
FOR ZR22RK-EB and ZR24RK-EB :
NOTE: The emergency driver must be fed from
the same branch as the AC Driver.
STEP 1:
Using customer supplied 90°C minimum rated wire
connectors, make the following electrical connections:
a. Connect the black luminaire lead to the
unswitched voltage supply lead.
b. Connect the white/red luminaire lead to
the switched supply switched.
c. Connect white luminaire lead to the neutral supply lead.
d. Connect ground bare or green/yellow lead to the
incoming ground lead from the conduit or screw the
green ground lead to the existing troffer pan if the safety
ground is made through the pan on the existing troffer.
e. If 0/1-10V Dimming is used, connect the violet lead
to the supply positive dimming lead. If dimming is
not being used ensure to cap off the violet lead.
f. If 0/1-10V Dimming is used, connect the gray lead
to the supply negative dimming lead. If dimming is
not being used ensure to cap off the gray lead.
STEP 2:
Locate the two red leads in the junction box and connect them
using customer supplied connector.
© 2019 Cree Lighting, A company of IDEAL INDUSTRIES. All rights reserved. For informational purposes only. Content
is subject to change. See www.creelighting.com/warranty for warranty and specifications. Cree
registered trademarks of Cree, Inc. ZR14™, ZR22™ and ZR24™ are trademarks of Cree Lighting, A company of IDEAL
INDUSTRIES. Armstrong® is a registered trademark of AWI Licensing LLC.
5 of 5

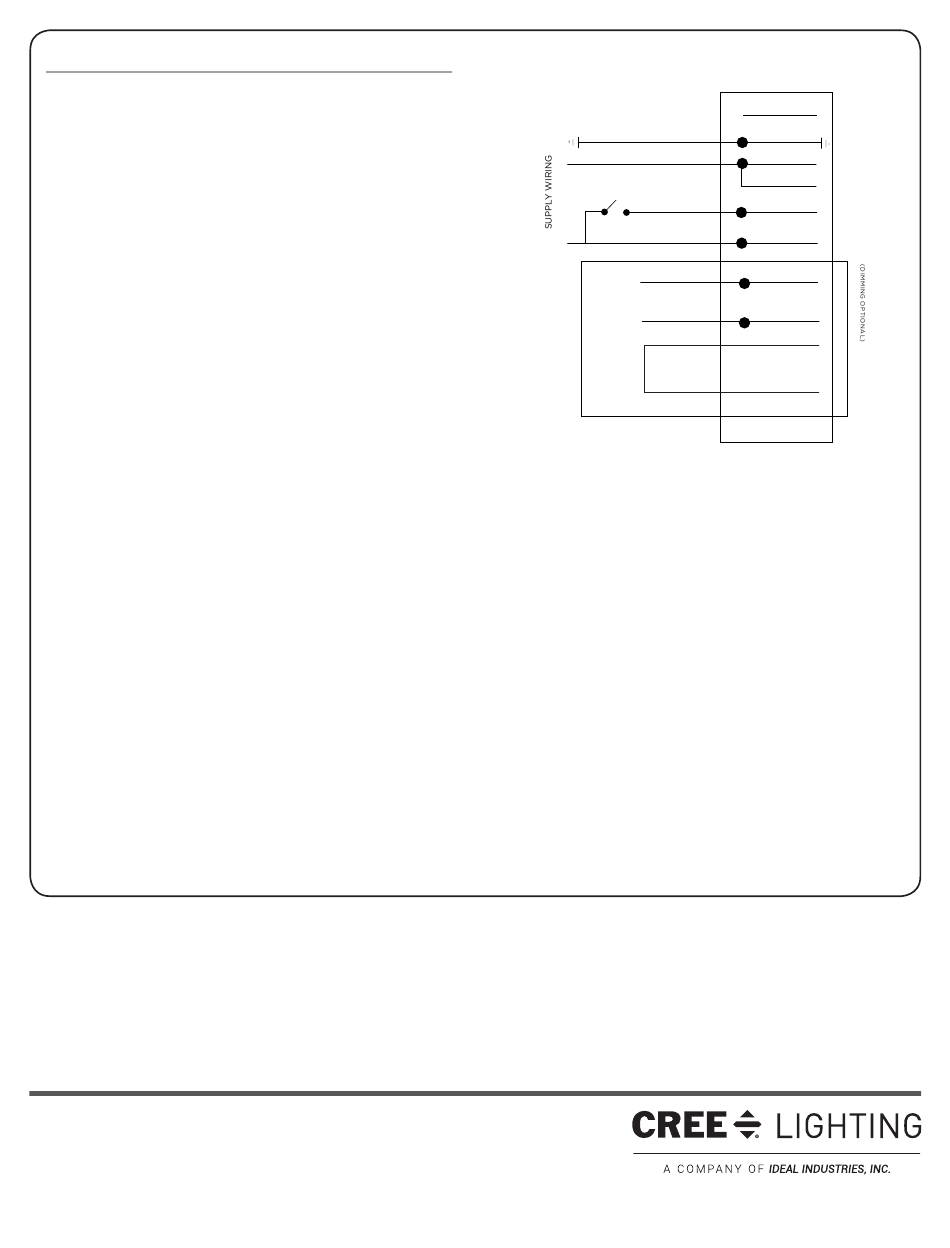

** NOTE: DO NOT mate leads until installation
