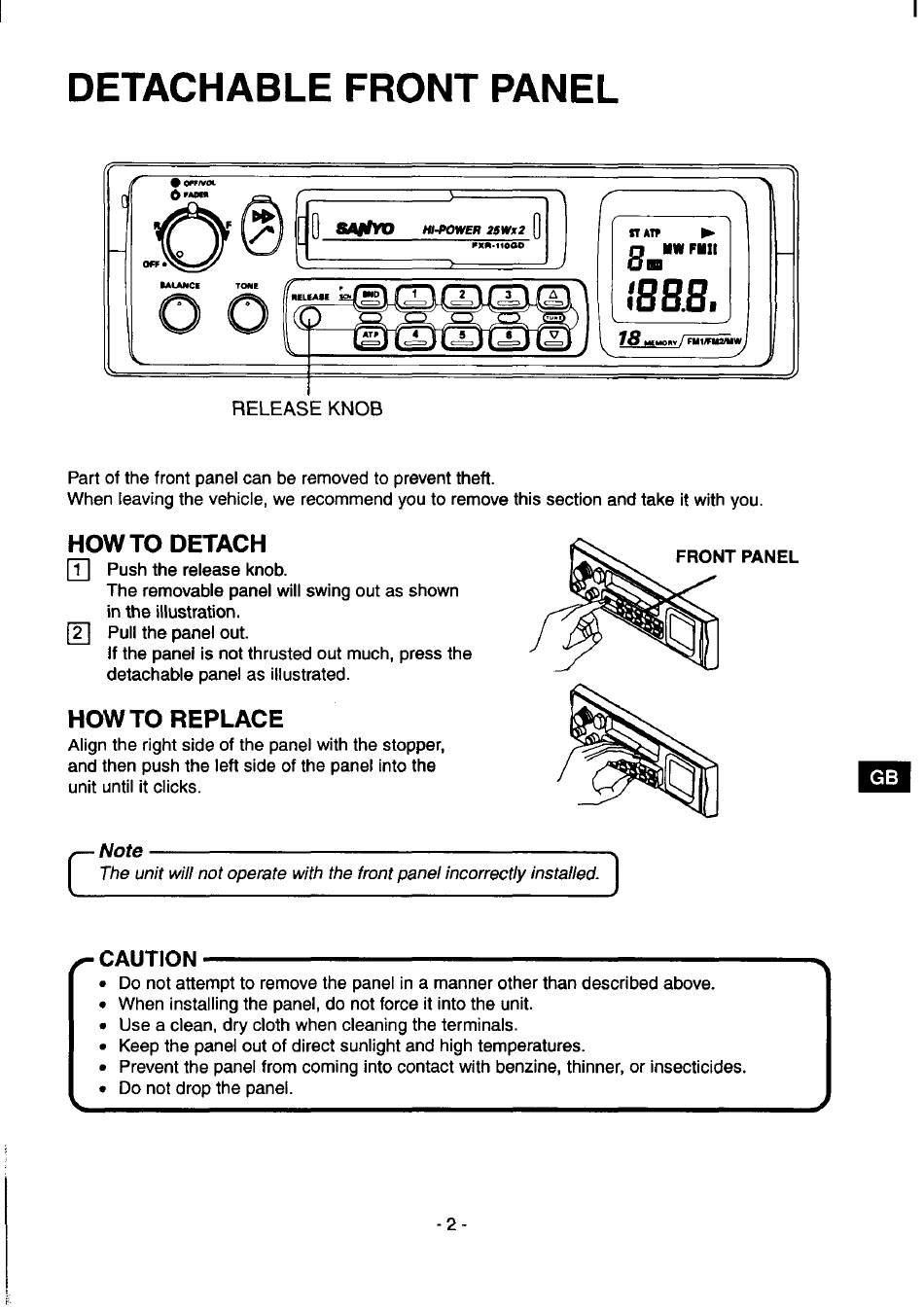

DETACHABLE
FRONT PANEL
(7
-..
\
RELEASE KNOB
Part of the front panel can be removed to prevent theft.
When leaving the vehicle, we recommend
you to remove this section and take it with you.
HOW TO DETACH
Pushthe
release knob.
The removable panel will swing out as shown
in the illustration.
Pullthepane
lout.
If the panel is not thrusted out much, press the
detachable
panel as illustrated.
HOW TO REPLACE
Align the right side of the panel with the stopper,
and then push the left side of the panel into the
unit until it clicks.
T PANEL
[
The unit will not operate with the front panel incorrectly installed.
I CAUTION
. Do not attempt to remove the panel in a manner other than described above.
When installing the panel, do not force it into the unit.
c Use a clean, dry cloth when cleaning the terminals.
Keep the panel out of direct sunlight and high temperatures.
.
Prevent the panel from coming into contact with benzine, thinner, or insecticides.
Do not drop the panel.
-2-
