- Page 1 Kramer Electronics, Ltd. USER MANUAL Model: VA-10 Cable Delay Corrector...
-
Page 2: Table Of Contents
Connecting the VA-10 Cable Delay Corrector Technical Specifications Figures Figure 1: VA-10 Cable Delay Corrector Figure 2: Connecting the VA-10 Cable Delay Corrector Tables Table 1: VA-10 Cable Delay Corrector Features Table 2: Technical Specifications of the VA-10 Cable Delay Corrector Contents... - Page 3 1 For example: model number AD2512C, part number 2535-000251 – No operator-serviceable parts inside unit. – Use only the Kramer Electronics input power – Disconnect power and unplug unit from wall 2900-9999992...
-
Page 4: Introduction
RGB signals. The unit is designed to correct the problem of differing delay times in analog signals, such as RGB thus match the delays in the three signals. The VA-10 features side panel controls for adjusting the red, green and blue skew (delay). It is 12VDC fed and is housed in a Kramer TOOLS enclosure. -
Page 5: Your Va-10 Cable Delay Corrector

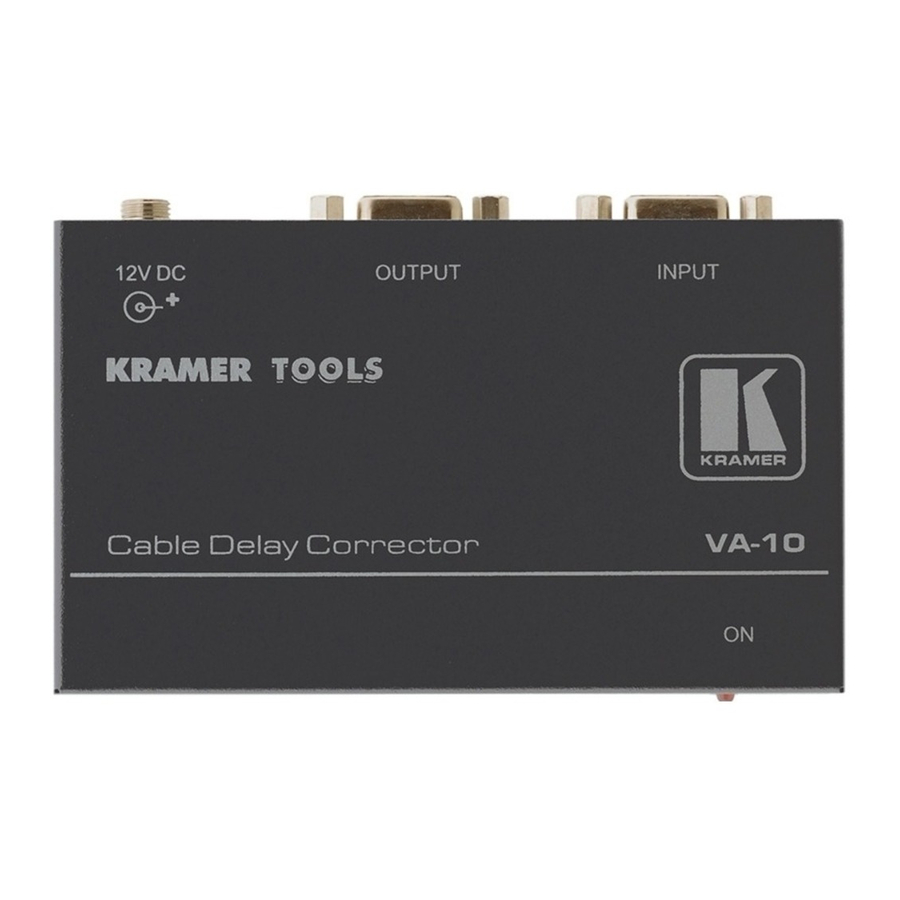

Your VA-10 Cable Delay Corrector Figure 1 and Table 1 define the VA-10 Cable Delay Corrector: Figure 1: VA-10 Cable Delay Corrector Table 1: VA-10 Cable Delay Corrector Features... -
Page 6: Connecting The Va-10 Cable Delay Corrector
Connecting the VA-10 Cable Delay Corrector Connecting the VA-10 Cable Delay Corrector To connect the VA-10 (as the example in Figure 2 illustrates), do the following: 1. Connect a computer graphics source to the XGA INPUT of a PT-110 XGA Line Transmitter and connect the LINE OUTPUT on the PT-110... -
Page 7: Technical Specifications
OPTIONS: 1 Specifications are subject to change without notice Technical Specifications of the VA-10 Cable Delay Corrector 1 analog red, green, blue input signals - 0.7 Vpp/75 , H & V sync, TTL level, on an HD15F connector 1 analog red, green, blue output signals - 0.7 Vpp/75 , H & V sync, TTL... - Page 8 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 9 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
