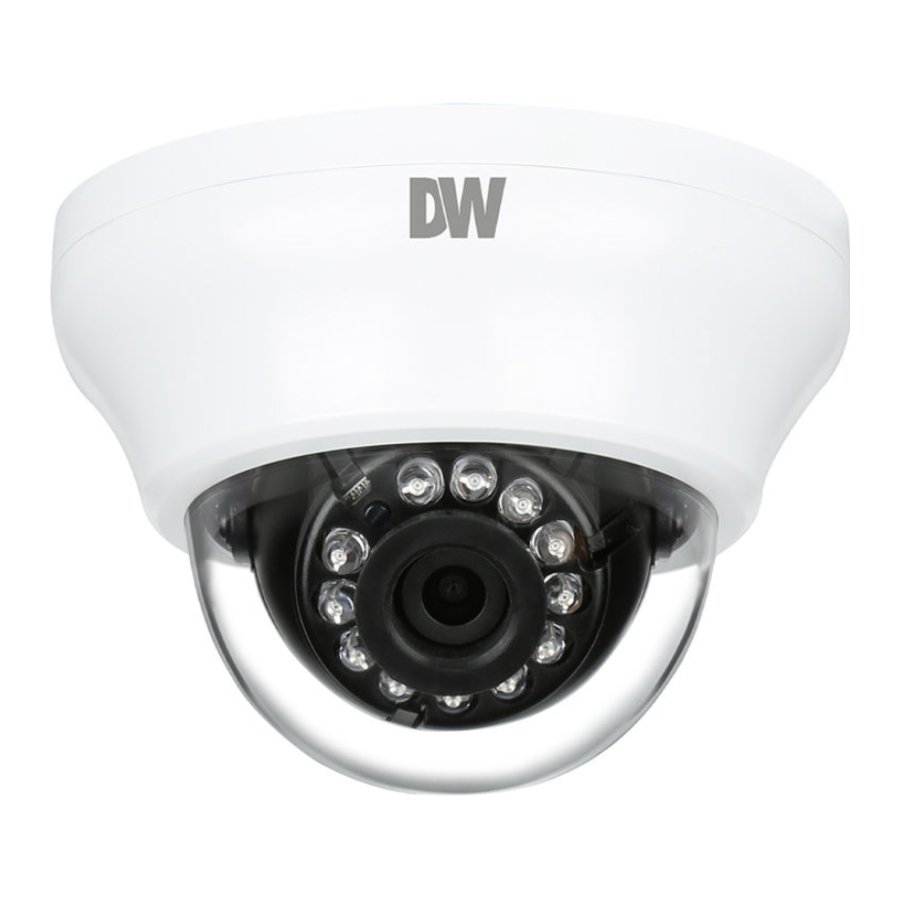

Digital Watchdog MEGApix DWC-MD72Di28T Quick Start Manual

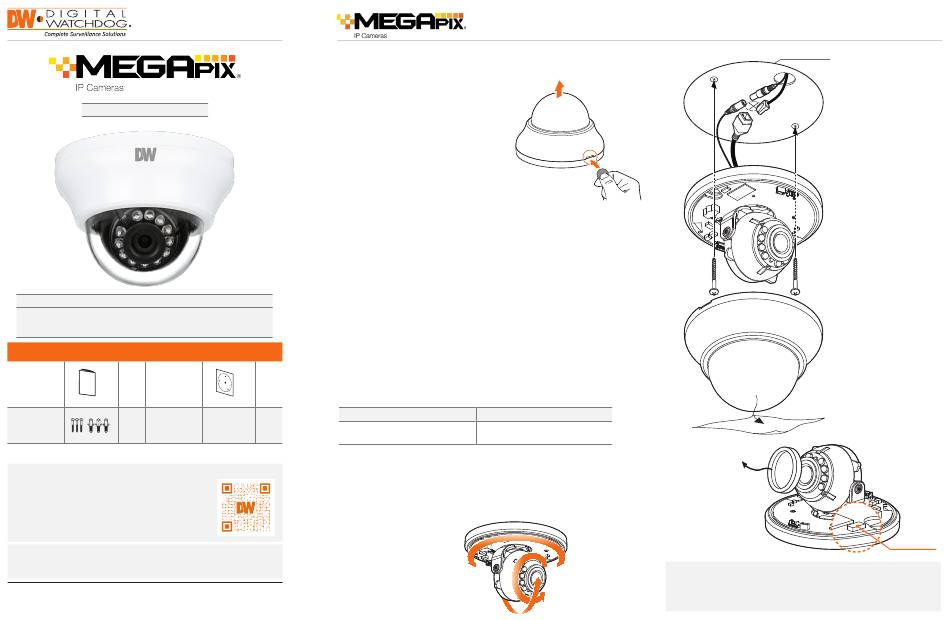

Quick Start Guide
DWC-MD72Di28T
Default Login Information: admin | admin
When logging into the camera for the first time, you will be prompted
to set up a new password. You can set the new password using the
DW® IP Finder™ software or directly from the camera's browser menu.
WHAT'S IN THE BOX
Quick setup Mounting
1
guide template
Screws and
plastic
1 set
anchors –
3pcs
NOTE: Download all your support materials and tools in one place
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in the
'Search by Product' search bar. Results for applicable
part numbers will populate automatically based on the
part number you enter.
3. Click 'Search'. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
Attention: This document is intended to serve as a quick reference for the initial
set-up. It is recommended that the user read the entire instruction manual for
complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday through Friday
STEP 1 - PREPARING TO MOUNT THE CAMERA
1. The mounting surface must withstand five
times the camera weight.
2. Do not let the cables get caught in
improper places or the electric line cover
can be damaged. This may cause a short
or fire.
3. For the installation process, remove the
dome cover from the camera module.
Insert a coin or a screwdriver between the
camera's base and the dome. Twist the
coin to pry the dome cover open.
4. Before installing the camera, be sure to remove the protective ring
from the camera's lens module.
5. Using the mounting template sheet or the camera itself, mark and drill
the necessary holes in the wall or ceiling.
STEP 2 - CABLING THE CAMERA TO
EXTERNAL DEVICES
Pass the wires through the mount bracket and make all necessary
connections.
1. NETWORK CONNECTIONS - If you are using a PoE switch,
connect the camera using an Ethernet cable for both data
and power.
2. NETWORK CONNECTIONS - If you are using a non-PoE switch,
connect the camera to the switch using an Ethernet cable for data
1
transmission and use a power adapter to power the camera.
Power requirements
DC 12V, PoE (IEEE 802.3af Class 2)
Adapter not included.
STEP 3 - INSTALLING THE CAMERA
1. Secure the camera to the mounting surface using the included screws
and anchors.
2. Adjust the camera's pan, tilt and position to achieve the desired view.
The cameras' max angles are:
Pan: 0° ~ 335°
Tilt: 0° ~ 70°
Rotation: 0° ~ 360°
digital-watchdog.com
Power consumption
DC12V: max 3.8W
PoE: max 5.5W
Panning 335°
Rotation 360°
Tilting 70°
Quick Start Guide
Mounting template
Protective
Ring
Resetting the camera: To reset the camera's settings, including the
network settings, use the tip of a paper clip or a pencil. Press the
reset button for five (5) seconds.
Reset Button
