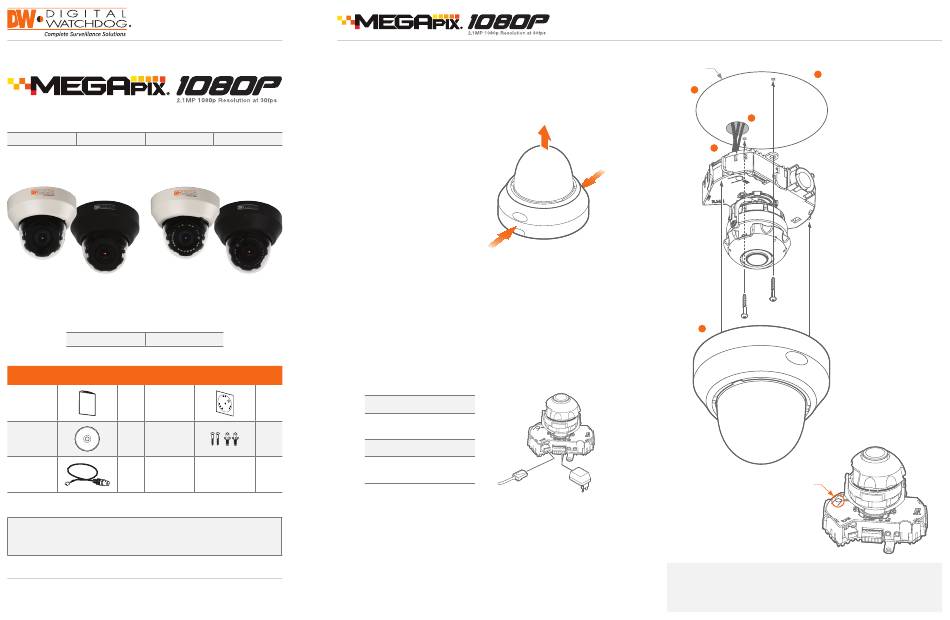

Digital Watchdog MEGApix DWC-MD421D Quick Start Manual

Quick Start Guide

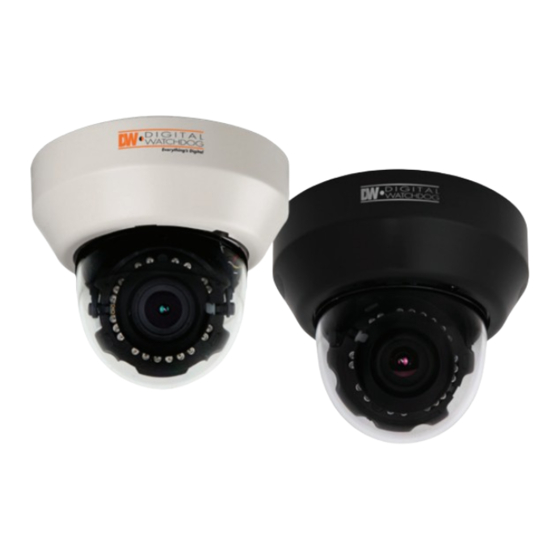

DWC-MD421D DWC-MD421DB DWC-MD421TIR
DWC-MD421D DWC-MD421TIR
DWC-MD421DB
Username: admin Password: admin
WHAT'S IN THE BOX
QSG Manual 1 Set Template Sheet
Screw & Plastic
Manual CD 1 Set
Anchor – 2pcs
Test Video
1 Set
Cable
Attention: This document is intended to serve as a quick reference page for initial set-up.
It is recommended that the user read the entire instruction manual for complete and proper
camera usage.
Tel: 866-446-3595 / 813-888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday
Step 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must bear five times the weight of your camera.
2. Do not let the cables get caught in improper places or the electric line cover to
be damaged. This may cause a breakdown or fire.
3. For the installation process, remove
DWC-MD421TIRB
the dome cover from the camera
module. Press on the camera dome
from both sides to separate from the
camera module.
4. Using the mounting template sheet
or the camera itself, mark and drill the
necessary holes in the wall or ceiling.
Step 2 – CABLING THE CAMERA TO EXTERNAL DEVICES
DWC-MD421TIRB
5. Pass the wires through the mount bracket and make all necessary connections.
a. NETWORK CONNECTIONS – If you are using a PoE Switch, connect the
camera using an Ethernet cable for both data and power.
b. NETWORK CONNECTIONS – If you are using a non-PoE switch, connect
the camera to the switch using an Ethernet cable for data transmission and
use a power adapter to power the camera.
1 Set
Power Requirements
DC 12V
PoE IEEE 802.3atPoE+ / PoE Class 3
1 Set
Power Consumption
LED Off: 7.2W, 600mA
LED On: 8.64W, 720mA (IR models)
Step 3 – INSTALLING THE CAMERA
6.
Use the camera's 3-Axis gimbal to adjust the camera's tilt and angle. The
camera's maximum tilting angle is 75° (90° for non-IR models).
7.
Secure the dome cover over the camera by snapping is back into place.
Detach the protecting film from the dome bubble.
digital-watchdog.com
NETWORK
CONNECTION
POWER
Quick Start Guide
Template
Sheet
1
4
5
2
3
Factory
Reset
Switch
Resetting the camera: To reset the camera, use the tip of a paper clip or
a pencil and press the reset button. Pressing the button for five (5) seconds
will initiate a camera-wide reset of all the settings, including network settings.
