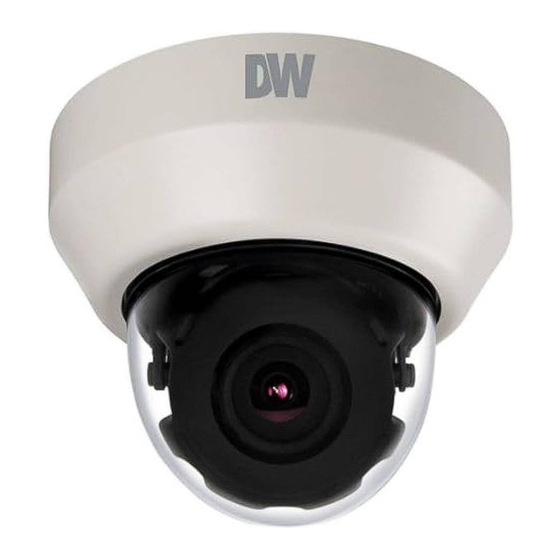

Digital Watchdog MEGApix DWC-MD44WA Quick Start Manual

Quick Start Guide
DWC-MD44WA
DWC-MD44WAB DWC-MD44WiAB
Default Login Information
Username: admin Password: admin
WHAT'S IN THE BOX
QSG Manual 1 Set Template Sheet
Test Monitor Screw & Plastic
1 Set
Cable Anchor – 2pcs
NOTE: Download All Your Support Materials and Tools in One Place
1. Go to: http://www.digital-watchdog.com/support-download/
2. Search your product by entering the part number in the 'Search by Product' search
bar. Results for applicable part numbers will populate automatically based on the
part number you enter.
3. Click 'Search'. All supported materials, including manuals, Quick Start Guides
(QSG), software and firmware will appear in the results.
Attention: This document is intended to serve as a quick reference for initial
set-up. It is recommended that the user read the entire instruction manual for
complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday

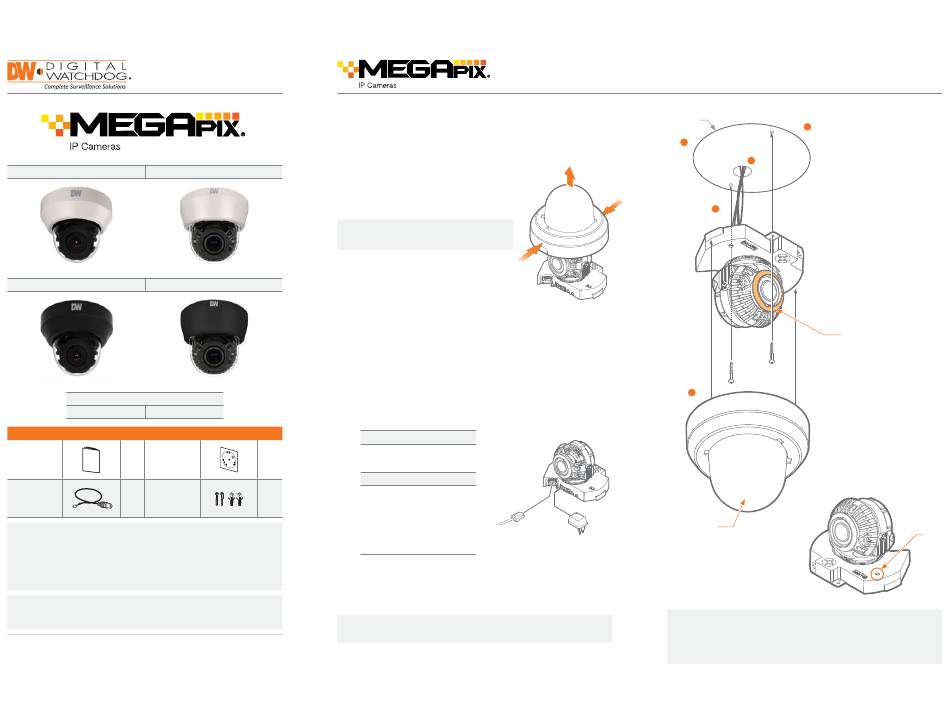

STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must bear five times the weight of your camera.
2. Do not let the cables get caught in improper places or the electric line cover
to be damaged. This may cause a breakdown or fire.
DWC-MD44WiA
3. For the installation process, remove the dome
cover from the camera module. Press on the
camera dome from both sides to separate from
the camera module.
NOTE:
4. Using the mounting template sheet or the
camera itself, mark and drill the necessary holes
in the wall or ceiling.
STEP 2 – CABLING THE CAMERA TO EXTERNAL DEVICES
5. Pass the wires through the mount bracket and make all necessary
connections.
a. NETWORK CONNECTIONS – If you are using a PoE Switch, connect the
camera using an Ethernet cable for both data and power.
b. NETWORK CONNECTIONS – If you are using a non-PoE switch, connect
the camera to the switch using an Ethernet cable for data transmission
and use a power adapter to power the camera.
1 Set
1 Set
STEP 3 – INSTALLING THE CAMERA
6. Use the camera's 3-Axis gimbal to adjust the camera's tilt and angle.
The camera's maximum tilting angle is 75°.
NOTE:
digital-watchdog.com
7. Secure the dome cover over the camera by snapping is back into place.
Detach the protecting film from the dome bubble.
DO NOT remove the IR rubber ring.
It will cause IR reflection issues.
Power Requirements
DC 12V
PoE IEEE 802.3af / PoE Class 3
Power Consumption
IR Models:
Auto Focus Working MAX 7.8W
LED Off: 3.6W
LED On: 5.2W (IR Models)
Non-IR Models:
NETWORK
Auto Focus Working MAX 6.2W
CONNECTION
AF Off: 3.6W
When the installation is complete, please remove the IR protective
foam before applying the camera's dome.
Template
Sheet
4
5
2
3
During installation,
DO NOT touch the
dome cover without the
POWER protection film included
in box as an accessory.
Resetting the camera: To reset the camera, use the tip of a paper clip
or a pencil and press the reset button. Pressing the button for five (5)
seconds will initiate a camera-wide reset of all the settings, including
network settings.
Quick Start Guide
1
DO NOT remove
the IR rubber ring
Reset
Button
