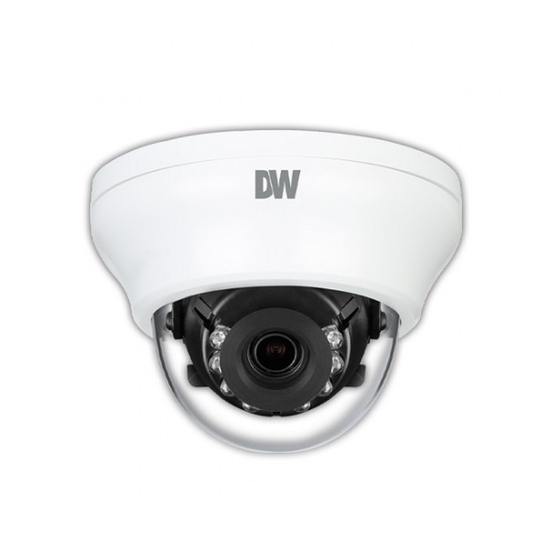

Digital Watchdog MEGApix DWC-MD724V Quick Start Manual

Quick Start Guide
DWC-MD724V DWC-MD72i4V
Username: admin Password: admin
WHAT'S IN THE BOX
Template Sheet
QSG Manual 1 Set for installing by
Bolt & Nut
Screw & Plastic
Manual CD 1 Set
Anchor – 3pcs
Attention: This document is intended to serve as a quick reference page for initial set-up.
It is recommended that the user read the entire instruction manual for complete and proper
camera usage.
Tel: 866-446-3595 / 813-888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday

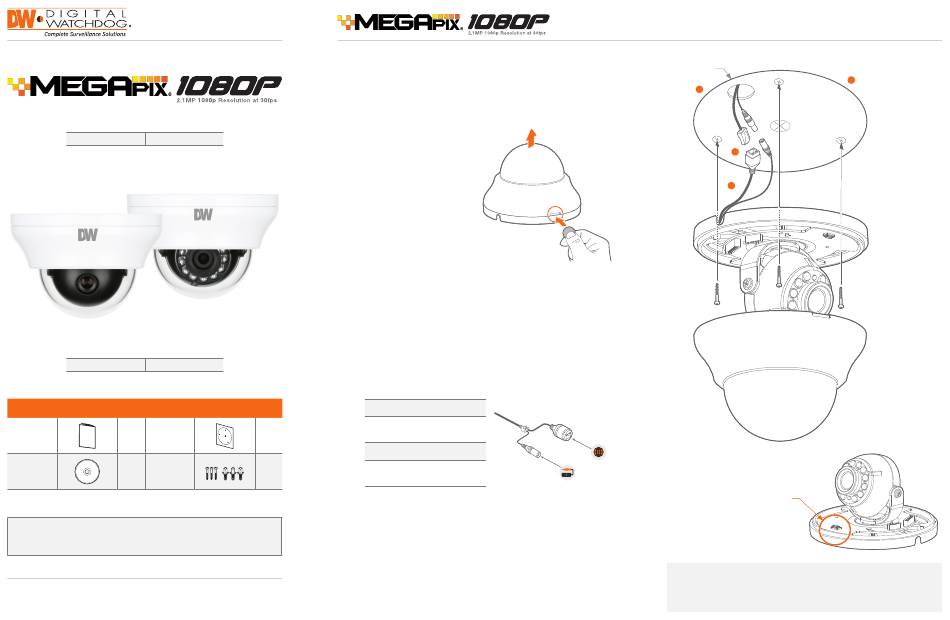

Step 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must bear five times the weight of your camera.
2. Do not let the cables get caught in improper places or the electric line cover to
be damaged. This may cause a breakdown or fire.
3. For the installation process,
remove the dome cover from the
camera module. Insert a coin or
screwdriver between the camera's
base and dome and twist to pry
the dome cover open.
4. Using the mounting template sheet
or the camera itself, mark and drill
the necessary holes in the wall or
ceiling.
Step 2 – CABLING THE CAMERA TO EXTERNAL DEVICES
5. Pass the wires through the mount bracket and make all necessary connections.
a. NETWORK CONNECTIONS – If you are using a PoE Switch, connect the
camera using an Ethernet cable for both data and power.
b. NETWORK CONNECTIONS – If you are using a non-PoE switch, connect
the camera to the switch using an Ethernet cable for data transmission and
use a power adapter to power the camera.
Power Requirements
DC 12V
PoE IEEE 802.3atPoE+ / PoE Class 2
1 Set
Power Consumption
LED Off: 1.92W, 160mA
1 Set
LED On: 2.7W, 230mA (IR models only)
Step 3 – INSTALLING THE CAMERA
6.
Use the camera's 3-Axis gimbal to adjust the camera's tilt and angle. The
camera's maximum tilting angle is 70.
7. Assemble the dome cover over the camera body and detach the protecting film
from the dome bubble.
digital-watchdog.com
Template
Sheet
4
5
2
NETWORK
CONNECTION
POWER
Resetting the camera: To reset the camera, use the tip of a paper clip or
a pencil and press the reset button. Pressing the button for five (5) seconds
will initiate a camera-wide reset of all the settings, including network settings.
Quick Start Guide
1
Reset
Button
