- Page 1 GRUNDFOS INSTRUCTIONS Ethernet module CU 401 accessory Installation and operating instructions...
-
Page 3: Ethernet Module

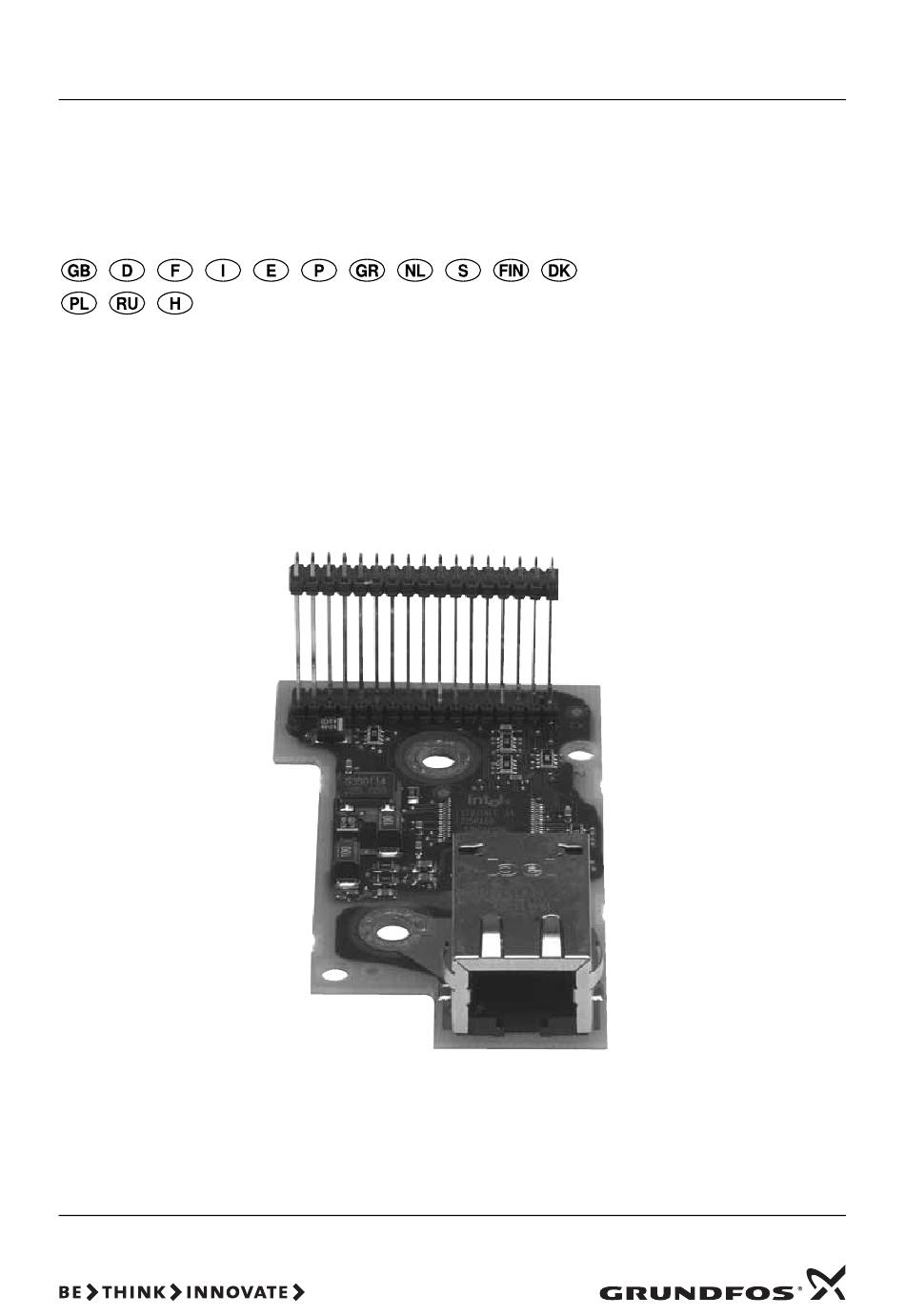

Ethernet module CU 401 accessory Installation and operating instructions Montage- und Betriebsanleitung Notice d'installation et d'entretien Istruzioni di installazione e funzionamento Instrucciones de instalación y funcionamiento Instruções de instalação e funcionamento Οδηγίες εγκατάστασης και λειτουργίας Installatie- en bedieningsinstructies Monterings- och driftsinstruktion Asennus- ja käyttöohjeet... - Page 4 1. Applications The Ethernet module is an accessory for the CU 401 control unit. The module enables communication with SCADA systems and other control units, e.g. CU 401 units.
- Page 5 • Remove the CU 401 unit from the DIN rail by lift- ing it out at the bottom. • Turn the CU 401 unit upside down. • Push back the four locking elements holding the plastic cover and remove the cover.
- Page 6 • Gently remove the two plugs from the upper cir- cuit board. • Remove the three TORX screws and lift off the upper circuit board. • Take care not to damage the guide pin of the cir- cuit board when the board is lifted off. •...
- Page 7 • Fit the two spacers (27 mm) supplied to the lower circuit board. 27 mm • Ethernet module. Note: Insert the plug on the back of the Ethernet module into the lower circuit board. • Place the Ethernet module on the two spacers. •...
-
Page 8: Technical Data
10 Mbit. 1. Use the public or private waste collection service. Signalling 2. If this is not possible, contact the nearest IEEE 802.3 Ethernet 10BaseT. Grundfos company or service workshop. Wiring IEC 332-1 Enhanced Category 5. Plug RJ45. Protocol TCP/IP, MMS. - Page 10 Telefax: +66-2-744 1775 ... 6 Telefax: +387 33 231795 Park u. 8 Phone: +64-9-415 3240 Turkey H-2045 Törökbálint, Telefax: +64-9-415 3250 GRUNDFOS POMPA San. ve Tic. Ltd. Brazil Phone: +36-23 511 110 GRUNDFOS do Brasil Ltda. Sti. Norway Telefax: +36-23 511 111...
- Page 11 Being responsible is our foundation Thinking ahead makes it possible Innovation is the essence 96079925 0406 Repl. 96079925 1105 www.grundfos.com...
