INSTALLATION INSTRUCTIONS
WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY
TOWABLE
HITCH-MOUNTED BIKE RACK

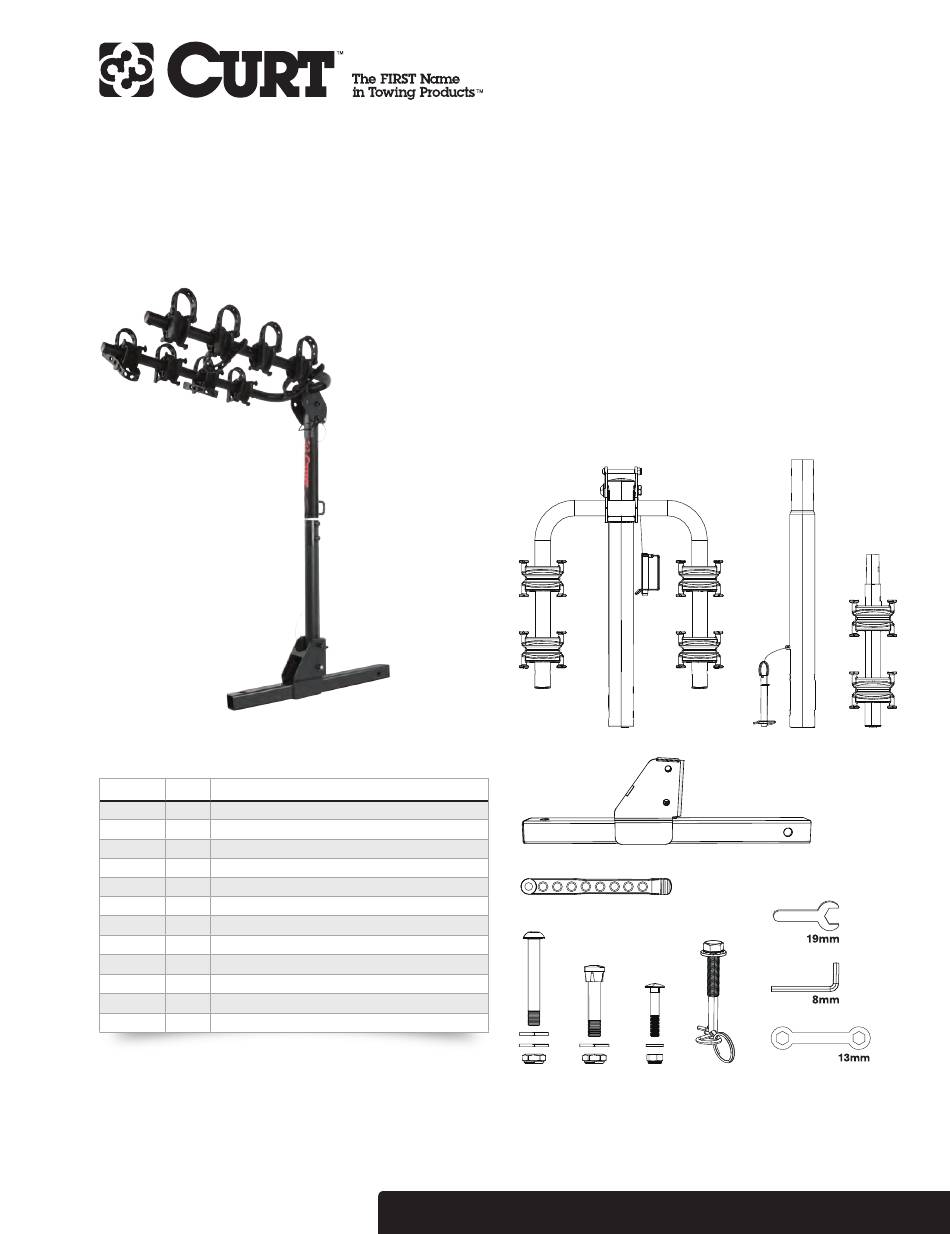

PARTS LIST
Item#
Qty
Description
1
1
Arm post
2
1
Connecting post
3
2
Arm extension
4
1
Shank, 2"
5
12
Arm straps, rubber
6
1
Bolt kit, hex head (bolt, two washers, nut)
7
2
Bolt kit, (bolt, one washer, nut)
8
2
Bolt kit, carriage (bolt, one washer, nut)
9
1
Anti-rattle bolt and clip
10
1
Wrench, 19mm
11
1
Allen wrench, 8mm
12
1
Wrench, 13mm
WARNINGS
Check straps for wear, and replace if worn.
This product is not intended for off-road use,
tandems or recumbents.
Do not install on a trailer or other towed vehicle.
Check tightness of all bolts periodically.
4
6
7
PAGE 1 • 18031-INS-RB • 1.800.798.0813 • NEED ASSISTANCE?
2
1
5
9
8
• CURTMFG.COM
3
10
11
12
Advertisement
Related Manuals for curt CM 18031
Summary of Contents for curt CM 18031
-
Page 1: Installation Instructions
INSTALLATION INSTRUCTIONS WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY TOWABLE HITCH-MOUNTED BIKE RACK WARNINGS Check straps for wear, and replace if worn. This product is not intended for off-road use, tandems or recumbents. Do not install on a trailer or other towed vehicle. Check tightness of all bolts periodically. - Page 2 ASSEMBLY Step 1 Step 4 Bolt the arm extensions (#3) to the arm post (#1) using the Using the hex head bolt kit (#6), attach the bottom carriage bolt kit (#8). See figure 1-A. Raise the arms to of the connecting post (#2) to the shank (#4). Make sure the outright position and secure with the attached lynch pin.
- Page 3 INSTALLATION FOLDING FEATURES Step 1 At the base, remove the clip from the upper bolt holding the Insert the bike rack shank into the vehicle receiver tube. bike rack in the vertical position. Remove the bolt and tilt the Secure with anti-rattle bolt and clip (#9). rack away from the vehicle.
