curt 11661 Manual

11661 85-93 VOLKSWAGEN RABBIT CABRIOLET
5/25/2010
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH:
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
WARNING: ALL NON-TRAILER LOADS APPLIED TO THIS PRODUCT MUST BE SUPPORTED BY 18050 STABILIZING STRAPS.
** FAILURE TO PROPERLY SUPPORT NON-TRAILER LOADS WILL VOID PRODUCT WARRANTY**
HAVING INSTALLATION QUESTIONS? CALL TECHNICAL SUPPORT AT
Parts List
ITEM QTY PART NUMBER DESCRIPTION
1 1
3/8 - 16 x 1 3/4 HEX BOLT
2 3 3/8 - 16 x 1 1/4 HEX BOLT
3 4 3/8" FENDER WASHER
4 2 7/16-14 x 1 1/2 HEX BOLT
5 2 7/16 WASHER
6 2 7/16 HELICAL LOCK WASHER
7 2 7/16-14 HEX NUT
8 4 HFN3816 HEX FLANGE NUT
HITCH WEIGHT: 12 LBS.
INSTALL TIME
PROFESSIONAL: 30 MINUTES
NOVICE (DIY): 60 MINUTES
INSTALL NOTES:
- REMOVE SPARE / TRUNK CONTENTS
- MAY REQUIRE FASCIA TRIMMING
- DRILLING REQUIRED
- SILICONE FASTENERS
INSTALLATION STEPS
1. Remove the spare tire and trunk contents from the vehicle.

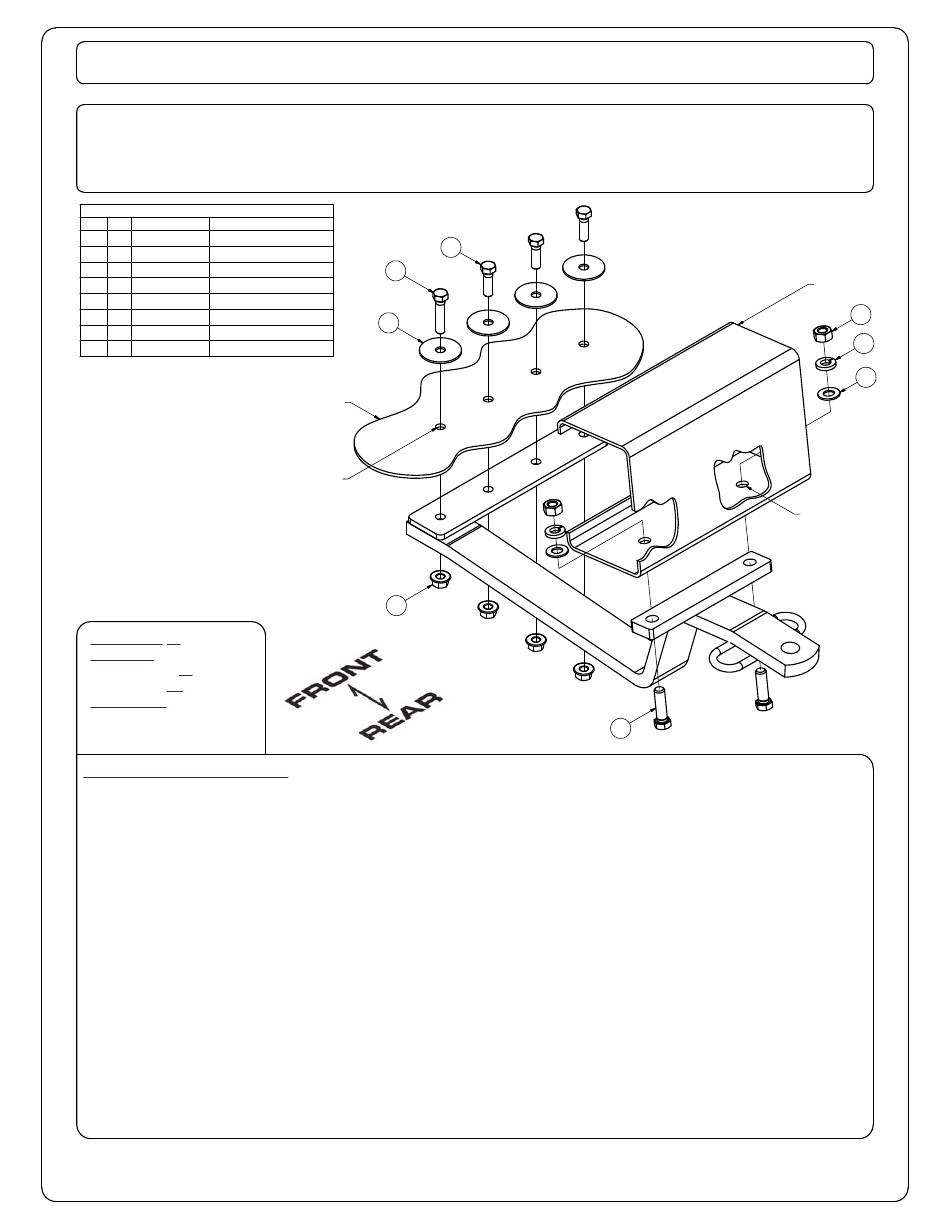

2. Position the hitch against the vehicle's tire well and bumber as shown. On 1988 and later models, mark
plastic bumper fascia for hitch bumper bracket and trim fascia using utility knife. Bumper bracket must fit
directly onto metal part of rear bumper. Make certain that the hitch is centered and square with the
vehicle. Check for enough clearance between hitch ball and bumper.
3. Using the hitch as a template, mark and drill (4) places in trunk floor for 3/8" hardware and (2) places in
the metal bumper for 7/16" hardware.
4. Fasten the hitch to vehicle using fasteners as shown. Be certain to place fender washers opposite the
hitch, inside the spare tire well.
5. Torque all 3/8" fasteners to 30 lb-ft, and all 7/16" fasteners to 50 lb-ft.
6. Apply silicone sealant around fasteners installed in trunk to seal out water and exhaust fumes.
7. Reinstall spare tire and trunk contents removed in step 1.
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
Curt Manufacturing Inc., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing Inc., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing Inc.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
217405
2
1
3
TRUNK FLOOR
DRILL HOLES
8
1,500 LBS. TRAILER WEIGHT &
1-800-798-0813
4
150 LBS. TONGUE WEIGHT.
BUMPER BEAM
7
6
5
DRILL HOLES
