Summary of Contents for Jaco One J1-10

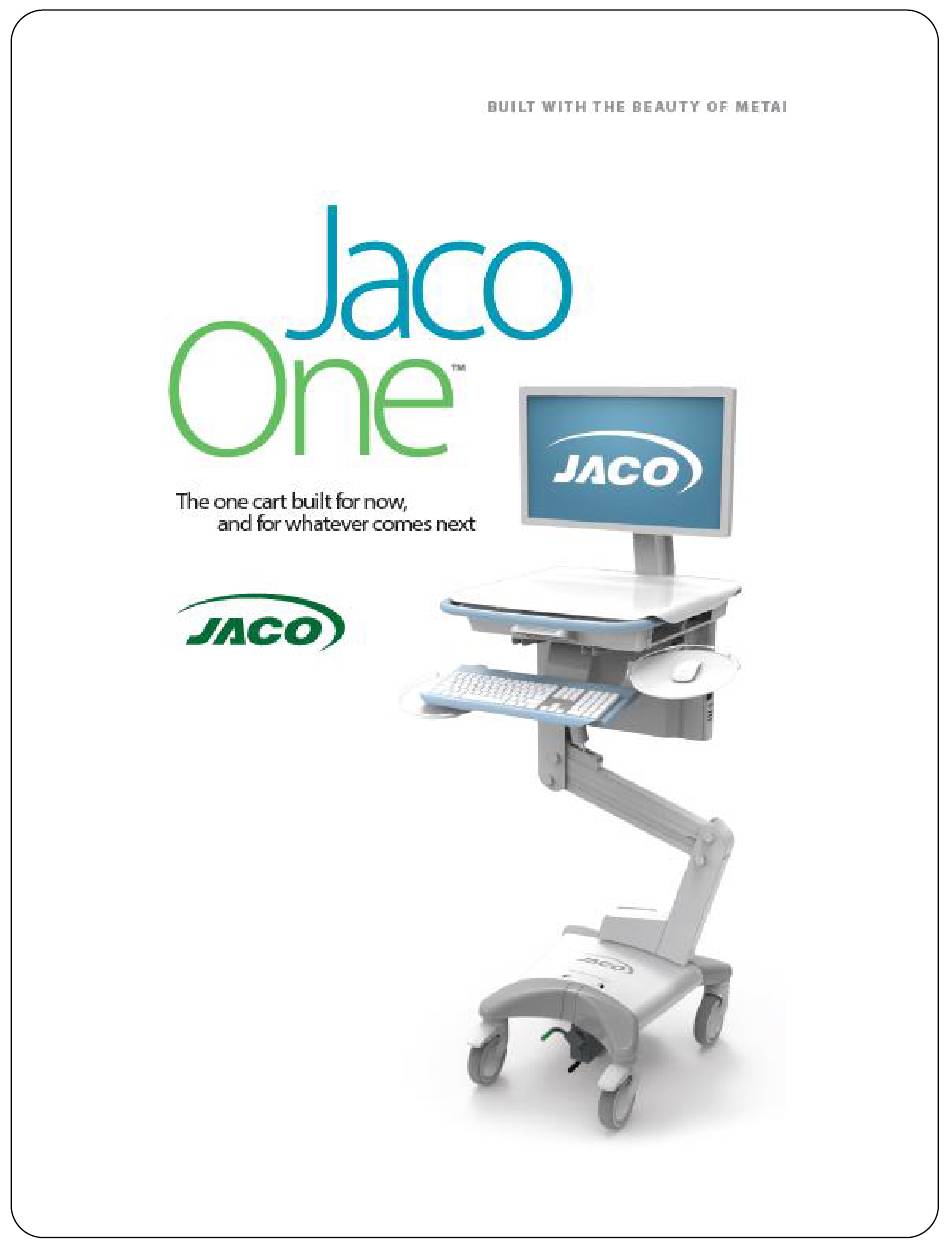

- Page 1 25-0193 Rev 01...
-
Page 2: Table Of Contents
Table of Contents JACO O & P ................2 ERIES ODEL UMBERS ......................3 YMBOL NFORMATION ......................3 RODUCT ABELING ...................... 4 ENERAL PECIFICATION ................5 AFETY ECOMMENDATIONS AND ARNINGS & M ................6 ROPER PERATION AINTENANCE & O ....................7... -
Page 3: Jaco One Series, Model & Part Numbers
JACO One Series, Model & Part Numbers J1-10, Laptop Mobile Cart J1-20, PC/LCD Mobile Cart J1-10-HS, Hot Swap Power Laptop Mobile Cart J1-20-HS, Hot Swap Power PC/LCD Mobile Cart... -
Page 4: Symbol Information
All JACO One Series Mobile Carts The JACO One Series Mobile Cart is shipped with a P/N & Serial Number label for tracking and service assistance. This label is located on the rear surface of the Top Assembly. The information on this label is needed when... -
Page 5: General Specification
General Specification JACO One Mobile Cart Work Surface Height: 33" to 46.5" Keyboard Height: 28" to 41.5" Work Surface: 20" x 18" Internal Laptop 16" x 14" x 3" or PC Storage: Casters: 5” Single Wheel, Front Locking Wheel Base: 16"... -
Page 6: Safety Recommendations And Warnings
If your JACO Mobile Cart has a Drawer System option, limit weight per drawer to 2 lbs WARNING: max, close drawers when moving and do not transport at more than a 5-degree slope. -
Page 7: Proper Operation, Care & Maintenance
Most of the surfaces of your JACO product are finished using a durable, antimicrobial powder coat finish. It is recommended that the surface areas that are in contact with day to day use be cleaned regularly. Always review the cleaning products that are being used and verify that it is safe to use on the powder coat finish. -
Page 8: Integration & Operation
Unpacking & Assembly: Your JACO Mobile Cart is delivered on a pallet and unpacking is a two-person task, please plan accordingly. Use caution when removing any additional containers that may have shipped on top of the Mobile Cart pack. Once unpacked, there will be minimal assembly required depending on the Mobile Cart model and options you have ordered. -
Page 9: Installing Your Computer System
Installing your computer system : The JACO One Series Mobile Cart will support most PCs, Thin Clients, Laptops and All-In-One computer/LCD systems however not all systems will fit and some may fit but will require too much power to operate using our optional battery power system. -
Page 10: Installing Lcd Monitor
PC or laptop computer that will be installed later. Installing Keyboard and Mouse : When ordering your JACO Cart you have the option of including an integrated mouse and keyboard. If you are adding your own mouse and keyboard, they can be integrated as follows. -
Page 11: Keyboard Light
Popular Options: We offer many options for the JACO One Cart including the following items. Please contact your local Sales Representative if you have any questions on existing options or have equipment that you need integrated onto the JACO One Cart, we will be happy to review. -
Page 12: Disinfecting Wipes Container Storage
JACO Patented Trac™ Wheel Steering: The optional Trac Wheel is designed to add true steering to the JACO Mobile Cart. With 4 swivel casters, keeping the Mobile Cart moving in one direction may be challenging as the momentum of the Cart will want to continue in the direction of motion. -
Page 13: Storage Cabinets, Drawers And Medication Bins
Storage Cabinets, Drawers and Medication Bins Storage systems for the JACO One Mobile Cart series include Non-Locking, Push Button-Locking and Touch-Pad Electronic-Locking drawers that are available in single 3” high, single 7” high, dual 3” high and triple 3” high drawers as... - Page 14 Default combination and instruction to open the optional Push Button Drawer – First turn the knob to the left to clear the lock then press #2 and #4 buttons at the same time then press the #3 button. Next turn the knob to the right and holding the knob in this position, pull the drawer open.
-
Page 15: Integrated Lfp Battery System
The JACO Power systems include two separate components, connected by a DC cable that runs through the Cart Post. This cable connects the LiFePO4 battery packs, located in the Cart Base, to the Inverter/Charger assembly which is located within the rear facing electronics enclosure as shown below. -
Page 16: Integrated Lfp Set-Up
Integrated LFP Set-up: The JACO Battery System is shipped in “cut-off” mode to prevent power drain during shipping. Follow the steps below to activate the power system and calibrate the status LED readout properly. 1. Integrate your PC or Laptop –... -
Page 17: Integrated Lfp Specification
Electronics Box (Inverter/Charger Unit) Dimensions: 10.6” (L) x 9.65” (W) x 2.2” (H) Integrated LFP Agency Certification: The JACO Integrated LFP Battery Power System, Inverter/Charger Assembly has been tested and approved to the following agency certifications - IEC 60601-1/A2: 1995 & IEC60950-1:2005... -
Page 18: Software
Integrated LFP CartCare Monitoring Software : When either battery power system is ordered with your JACO One Series Mobile Cart, you will also receive a copy of our JACO CartCare Suite Software. The CartCare software will help users and IT with power system management. -
Page 19: Integrated Lfp Troubleshooting
– “My power system is not providing power to the LCD and PC”. 1 - Check to make sure that the PC and LCD are plugged into the AC power outlet on the JACO Power Inverter. You may be using a short tri-plug cable that is provided. Also make sure that the Outlet Power Switch is in the ON position as shown below. - Page 20 Remove the Base Shroud to expose the Lithium Iron Phosphate battery packs. Depending on the model of JACO Mobile Cart that you have, you will need either a blade screwdriver or a Phillips screwdriver. To remove the Shroud, turn the hardware ¼...
- Page 21 If you have a dual battery system, check both fuses. If the connection inside the fuse is not broken, the issue is with the JACO Power Inverter assembly and you will need to contact JACO Customer Support to address replacement.
- Page 22 If you now see front status LED readout, the issue has been resolved, if not, please continue to next step. 2 – If you have a known good JACO Mobile Cart, use the status cable from this Cart and exchange for the cable in the Cart that does not show front status LEDs.
-
Page 23: Hot-Swap Lfp Battery System
Hot-Swap LFP Battery System To insert the Power Blade Battery Pack into the Cart Controller, simply hold by the integrated handle and insert into the Cart Controller using the side guides for alignment. As you push the Power Blade Battery Pack into position, make sure to push down to engage the connector. To remove, grab the handle and pull the Power Blade Battery Pack up and out. - Page 24 Power Blade Battery Pack runtime, we suggest that you set the monitor to enter sleep mode after 5 minutes of idle time. The following are estimated runtimes per JACO Power Blade Battery Pack, your results may vary. Watts...
-
Page 25: Hot-Swap Lfp Charger
Hot-Swap LFP Charger: The Power Blade Charger can be placed on a tabletop or installed on the wall for convenient point of use access. With either installation, the Power Blade Charger MUST be positioned vertically, with the Power Blade Battery Packs entering from the top and will not function if positioned in any other direction. -
Page 26: Software
Hot-Swap LFP Monitoring Software: The JACO One, Hot-Swap Power Blade status, parameters and configuration files are fully accessible via the Cart's built-in HTML web server. Web pages are viewed via standard internet browsers on a PC, tablet or Smartphone and the Cart is built to standalone so no software needs to be installed on the Cart's computer eliminating "software clash"... -
Page 27: Hot-Swap Lfp Troubleshooting
Remove the batteries from the Cart Carrier, replace with 2 fully charged batteries. If there is power, the previous batteries need to be charged. If there is still no power to the computer & LCD, contact JACO for replacement authorization or additional troubleshooting direction. -
Page 28: Integrated & Hot-Swap Lfp Battery Power System Maintenance
If the front LEDs are still not functioning, check that the input/output cable connection, as shown in Section 6 of this guide, are connected correctly and seated properly. If the front status LEDs are still not functioning, contact JACO for replacement authorization or additional troubleshooting direction.
