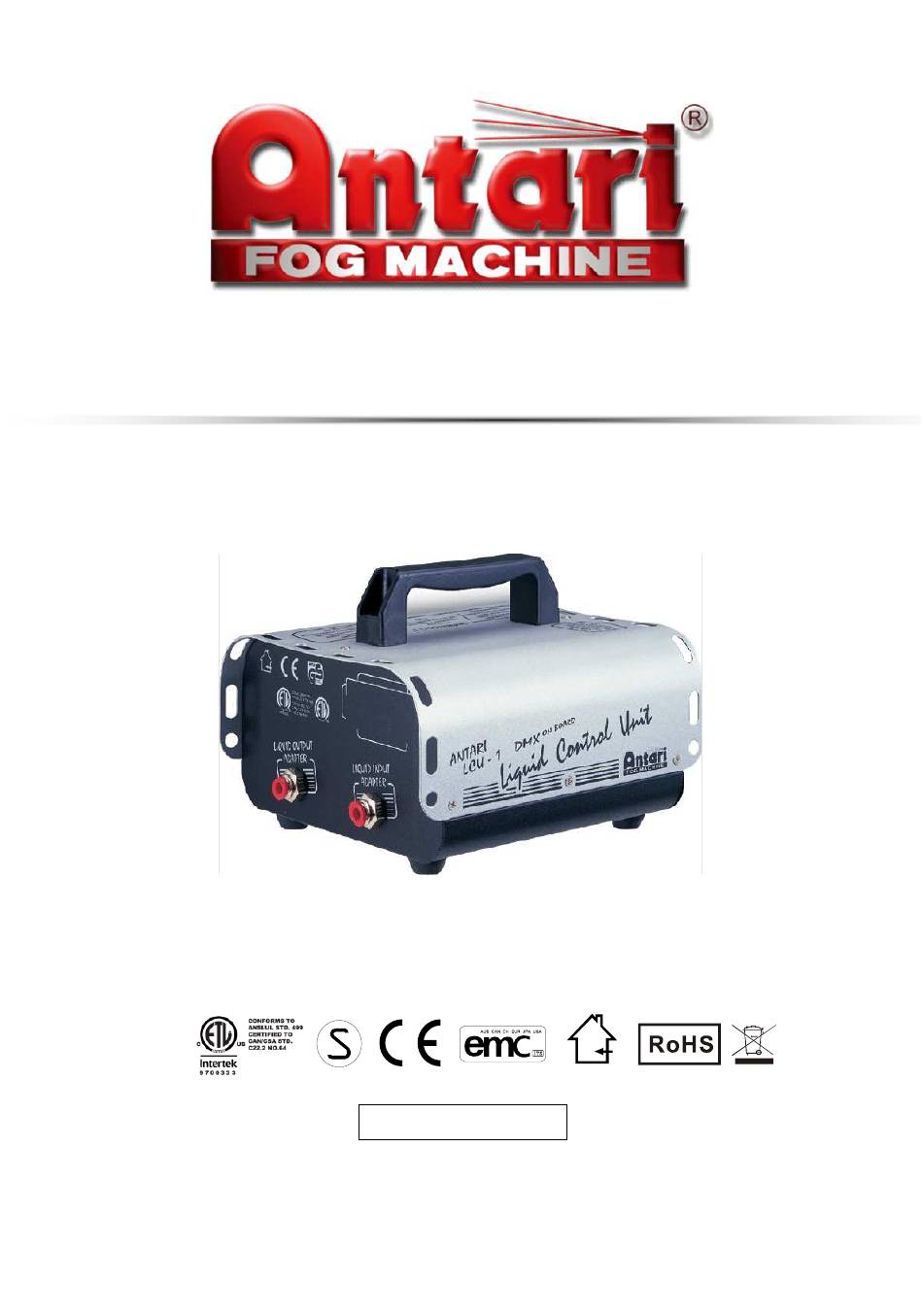

- Page 1 2012 Antari Lighting and Effects Ltd.
- Page 3 ANTARI LCU-1 Liquid Control Unit. Introduction Thank you for choosing an ANTARI Liquid Control Unit. You now own a rugged and powerful state-of-the-art machine. Prior to use, we suggest that you carefully read all of the instructions. By following the...
- Page 4 ♦ This machine is not water- or splash-proof. If moisture, water, or fog liquid gets inside the housing, immediately unplug the unit and contact a service technician or your ANTARI dealer before using it again. ♦ No user serviceable parts inside. Refer to your ANTARI dealer or other qualified service personnel.
- Page 5 In the event that the unit’s housing or cable is damaged, do not plug it in and do not attempt to use it until after contacting your ANTARI dealer for assistance.
- Page 6 Setup ♦ See connection diagram ♦ Remove all packing materials from shipping box. Check that all foam and plastic padding is removed. ♦ Place Liquid Control Unit on a flat surface. ♦ Put a Tank beside Liquid Control Unit and connect a 6mm PU tube between Tank &...
- Page 7 For further information on operating your ANTARI Liquid Control Unit, refer to the Antari onboard, “Remote Control Operation”. ♦ For details regarding DMX, refer to the Antari onboard DMX fog machine settings section. If you experience low output, pump noise or no output at all, unplug immediately.
- Page 8 After every 40 hours of continuous operation, it is recommended to run a cleaning solution composed of 80% distilled water/20% white vinegar through the system to prevent the accumulation of particulate matter in the tube. The recommended cleaning regimen is as follows: While unit is unplugged and clean out debris with vinegar and a pipe cleaner, making sure that the tube is free of clogs.
