11. Positioning of a Triple Tray® impression
The Triple Tray® impression holder allows you to position Triple Tray® impression trays inside the scanner.
You can use the Triple Tray® impression holder with the Triple Tray® impression scan module.

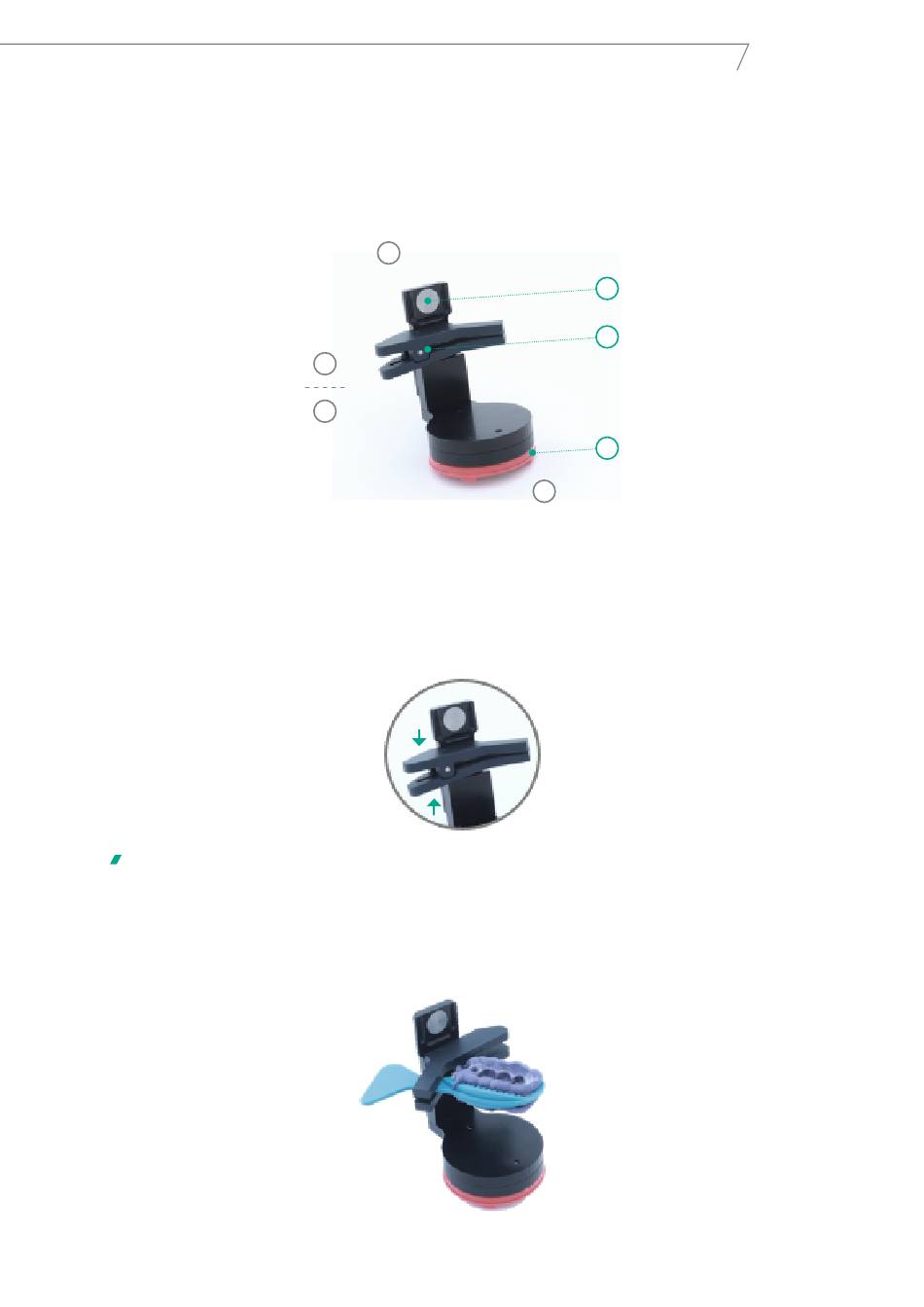

OVERVIEW
1. Upper part
2. Lower part
3. Rear
4. Front
5. Magnetic adhesion point
6. Clamp with spring
7. Adesso Split® plastic plate
with adhesive disk
FASTENING A TRIPLE TRAY ® IMPRESSION SCAN
OBSERVE THE SAFETY INSTRUCTIONS!
A Triple Tray® impression tray can be clamped quite easily in the Triple Tray® impression holder.
• Press the clamp on the broad side and keep it pressed.
The opposite side is pressed apart.
• Turn the side of the Triple Tray® impression demanded by the software upwards.
• Insert the flat shaft of the Triple Tray® impression holder into the narrowest position between the open side of
the clamp.
• Release the clamp.
