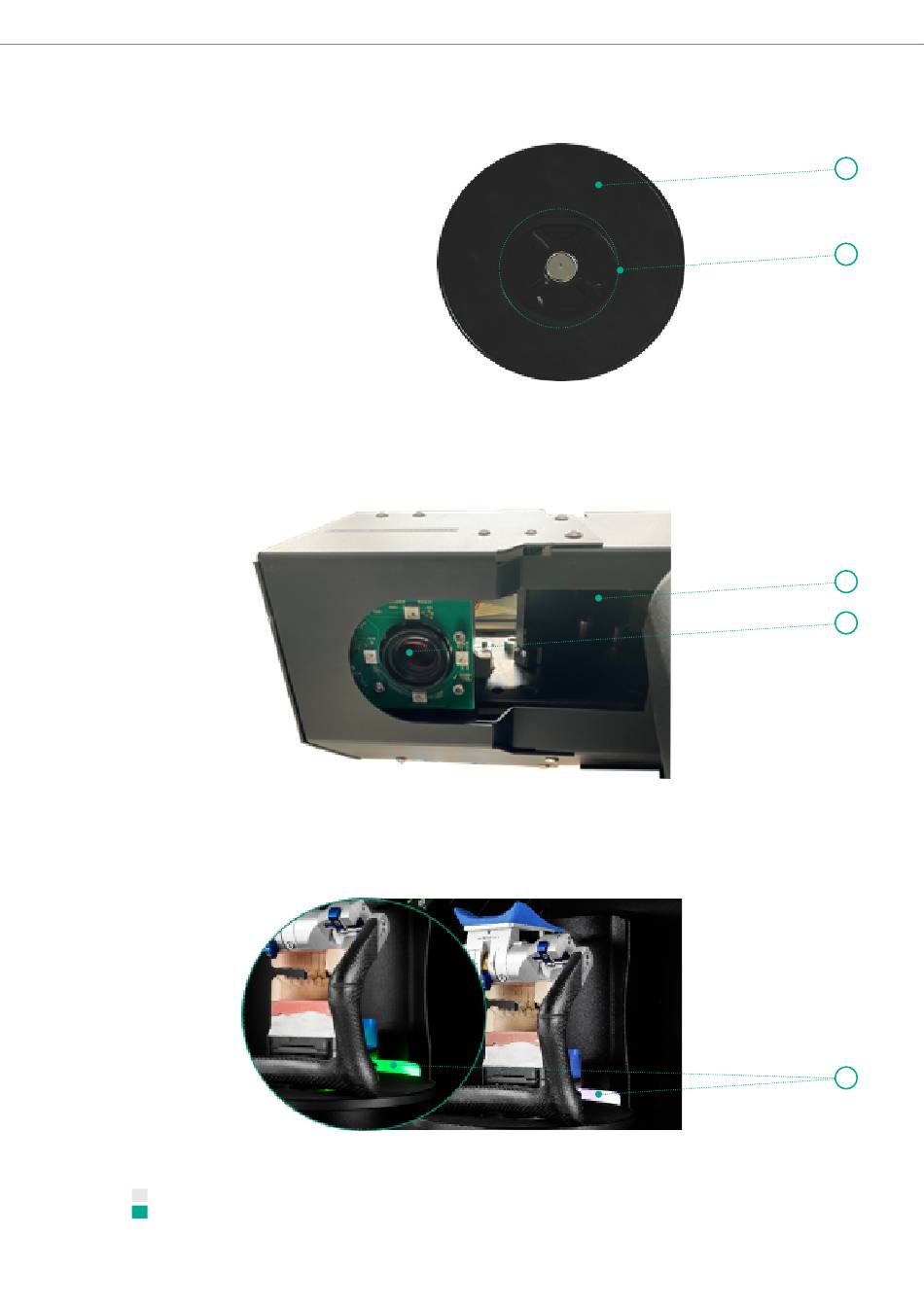

DETAILED VIEW OF THE SYSTEM PLATE
1. Turntable with non-slip rubber mat for the
placement of articulators
2. Adesso® Multisplit base plate for mounting
object
holders,
Multisplit mounting plates
DETAILED VIEW OF CAMERA, SENSOR AND LED
1. Projector
2. Camera
DETAILED VIEW OF THE STATUS LED
1. Status LED on the swivel axis
White
Hibernation (equivalent to the logo or screen saver on the touchscreen)
Green
Operation (corresponds to the start button and the process display on the touchscreen)
16
adapter
plates
and
1
2
1
2
1
