5. Setup and commissioning of the scanner
5.1. Choosing a workstation
OBSERVE THE SAFETY INSTRUCTIONS!
•
When choosing a workstation, please note that the ALS 2 is an EMC Class A devices suitable for use in a commercial
environment.
•
Choose a stable work desk that is big enough to allow the scanner to be connected to a PC. The weight of the
scanner is 23 kg and its setup dimensions are 432,6 × 436,8 × 364,5 mm (W x H x D).
•
Ensure easy access to the rear as this is where the ON/OFF switch is located.
•
Ensure that there are enough and sufficiently fused mains sockets for all the devices. After consultation
with an electrician, you can use an approved extension cable, a multiple power socket and a socket
adapter (additional electrical devices not included in the scope of delivery).
5.2. Unpacking the scanner
OBSERVE THE SAFETY INSTRUCTIONS!
The scanner is delivered in a foldable carton box. The carton box is equipped with an impact and tilt indicator (outside)
and clad with a foam transport protection (inside).
Keep the packaging for possible transport or return. The original packaging is precisely adapted to the scanner and
thus offers the best protection against transport damage.
•
Check the outer packaging for visible damage immediately on receipt.
•
If an indicator indicates a careless storage or even any shipping irregularities or if damage is evident on the
packaging, please inform the delivery company and GC.
Follow the instructions provided by the delivery company and GC before continuing to unpack the device.
•
Transport the scanner in the packaging as close to the workstation as possible.
•
Remove the accessory case and place it aside. The accessories may be on top or below the scanner.
•
Remove the foam board.
Due to the dimensions and weight GC recommends carrying by two persons.
Never hold it by the front upper corners or inner parts because sensitive technical components are placed there.
The protective bag prevents incorrect gripping.
Position of person 1
•
Position yourself with a second person to the right and left of the scanner.
•
Place one hand each under the front and rear corner of the scanner.
•
Lift the scanner simultaneously.
•
When carrying, incline the scanner slightly backwards.
Setting the scanner down
•
Set the scanner down carefully and in a straight position at the place of installation.
•
Remove the protective bag.
•
Immediately check the scanner and the accessories for completeness and any visible damage.
If the scope of delivery is not complete or if one of the supplied parts shows visible damage, contact your GC digital
specialist. Follow the instructions provided by GC before continuing with the setup.

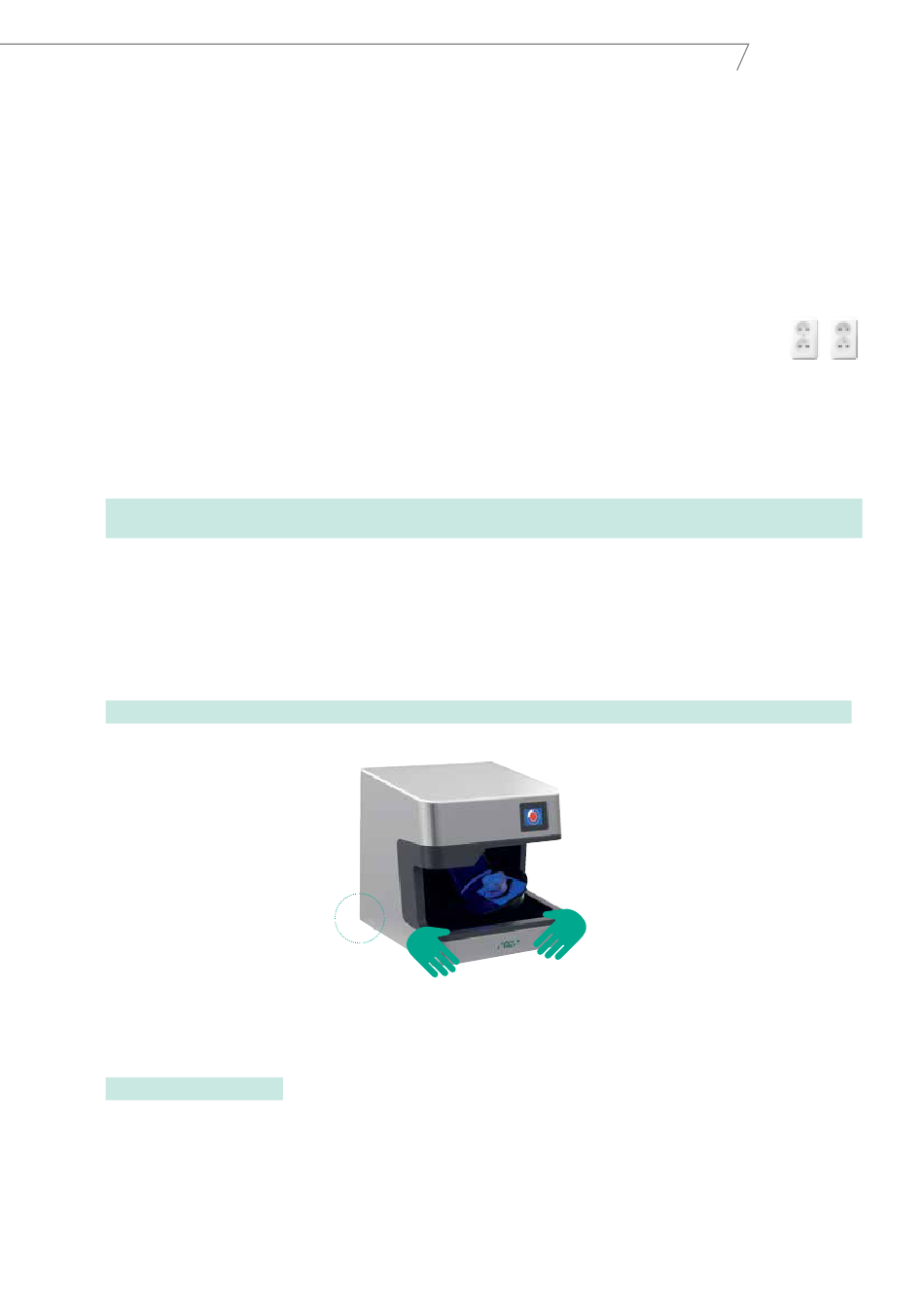

Position of person 2
