SAM® AXIOSPLIT®
• The magnetic adhesive disk in the adapter plates for SAM® AXIOSPLIT® is retained with a fixating screw.
Ensure that this is tightened firmly.
Additional securing of the plastered jaw model is not necessary.

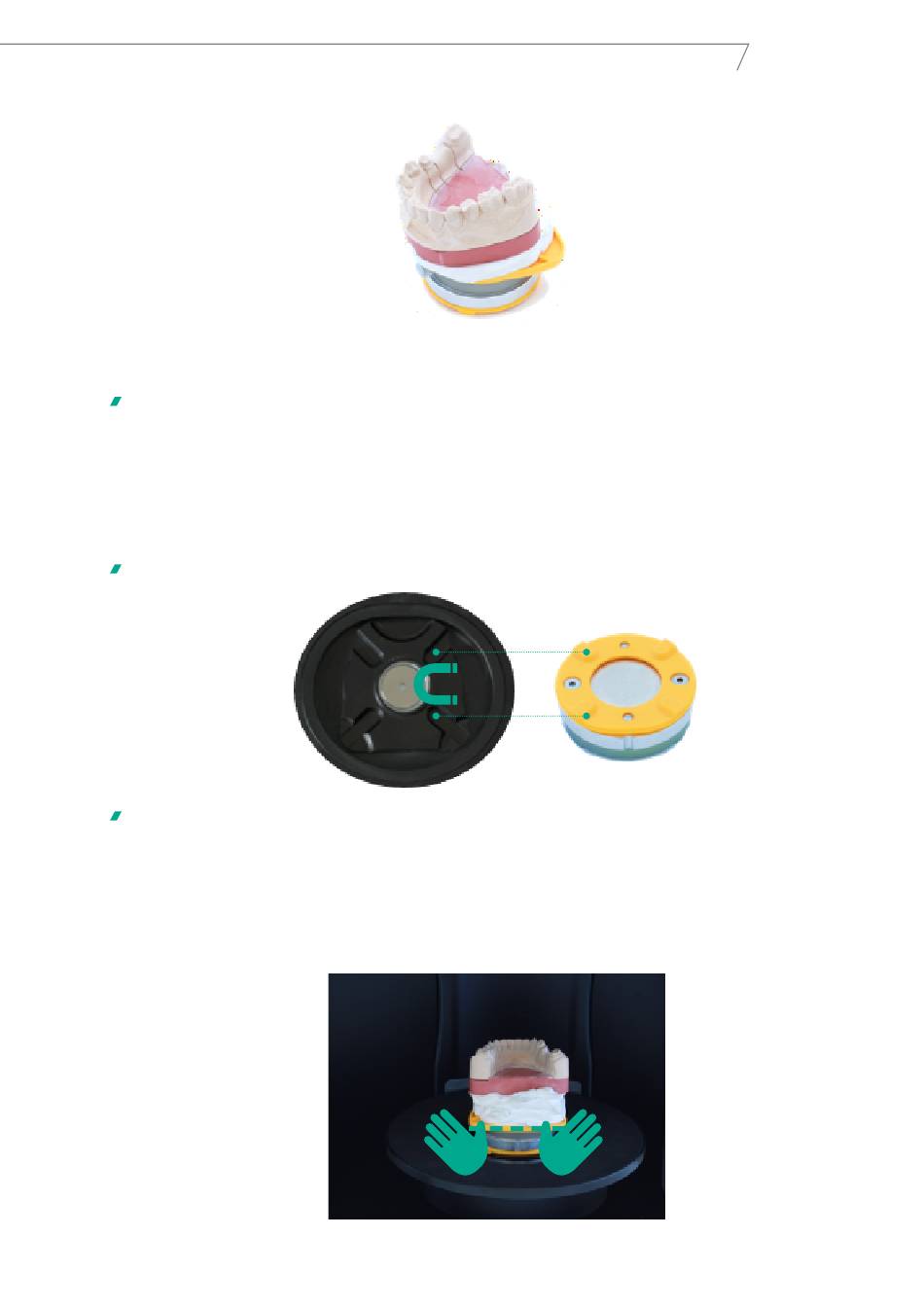

INSERTING AN ADAPTER PLATE
OBSERVE THE SAFETY INSTRUCTIONS!
• Hold the adapter plate from the side of the Adesso Split® plastic plate.
• Insert the adapter plate into the scanner.
The protrusions ("Ovals") on the underside of the plastic plate engage with the recesses of the Multisplit base plate.
The adapter plate will adhere to the magnet of the Multisplit base plate.
• Check whether the adapter plate can be shifted easily. If this is the case, correct the fit until the adapter plate fits
securely.
REMOVING THE ADAPTER PLATE
• Hold the adapter plate on two sides; if necessary, use both hands (not the mounting plate).
