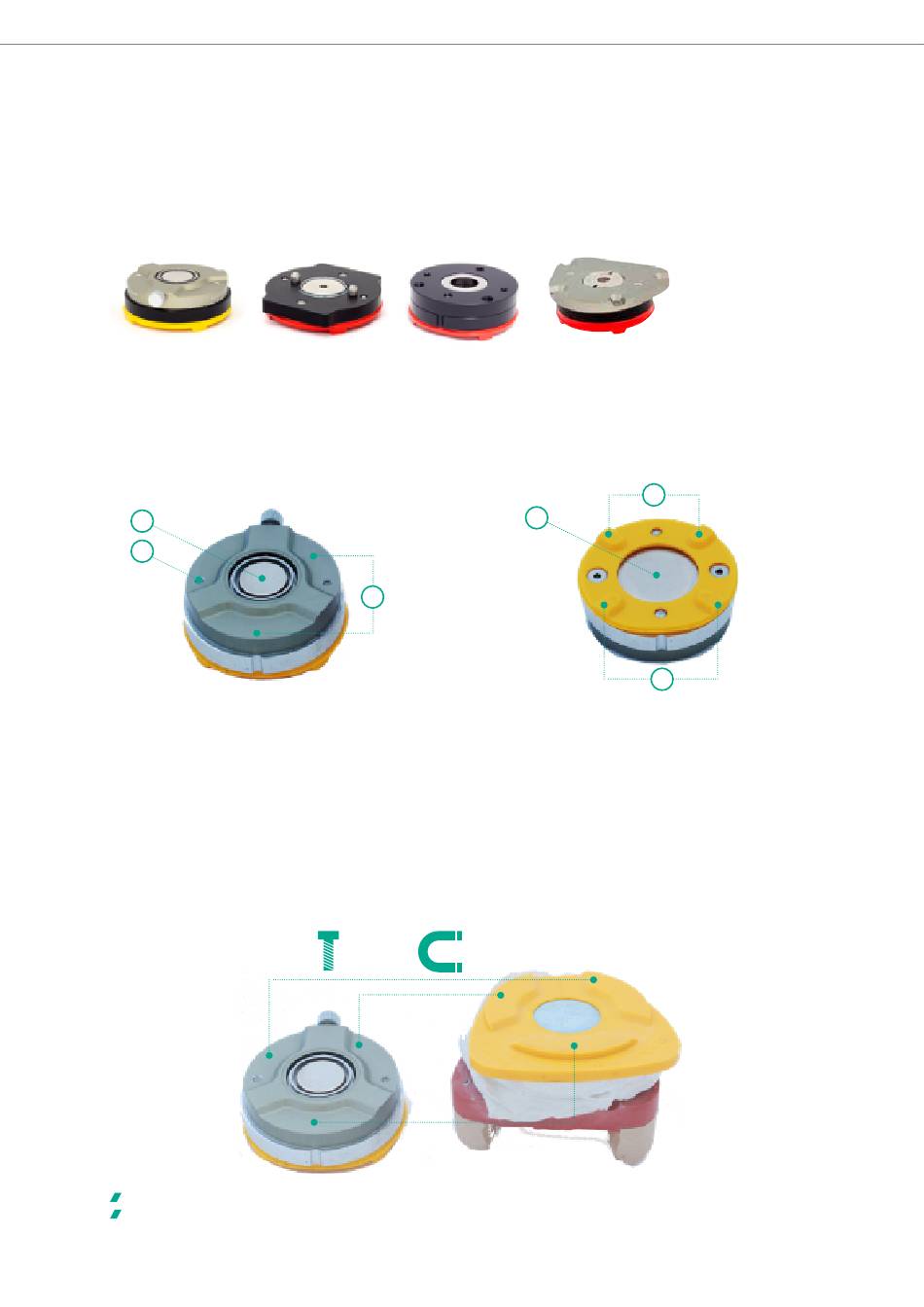

7.2. Inserting a jaw model with an adapter plate

OVERVIEW
Using an adapter plate as spacer, you can place the mounting plates of articulated jaw models on the Multisplit base
plate of the scanner.
Adapter plates are available as optional accessories for the following articulator systems:
– SAM® AXIOSPLIT®
– GAMMA® Reference
– Whip Mix Denar®
– KaVo PROTAR®
No adapter plates are required for AMANN GIRRBACH Artex® and Baumann Dental Artist/arTO®.
1
2
Top (in this case: SAM® AXIOSPLIT®)
The mounting plates of the corresponding articulator fit the top of the adapter plate.
The underside fits to the Multisplit base plate inside the scanner.
PLACING A MOUNTING PLATE ON THE ADAPTER PLATE
• Plaster the jaw model onto the mounting plate according to the manufacturer's instructions.
Make sure to insert a magnetic adhesive disk into the mounting plate.
OBSERVE THE SAFETY INSTRUCTIONS!
• Place the mounting plate on the adapter plate such, that the protrusions ("Corners") on the underside of the
mounting plate fit into the identically shaped recesses of the adapter plate.
The mounting plate will adhere to the magnet of the adapter plate.
The mounting plate fits correctly when the plates coincide exactly.
30
1
2
1. Magnet
2. Recess ("Corner")
3. Protrusion ("Oval")
Bottom (in this case: SAM® AXIOSPLIT®)
3
3
