5.3. Connecting the scanner

The scanner requires a mains connection and a PC connection. The scanner does not work without a software.
The connections are located on the rear of the scanner.
• Connect the type B plug of the USB 3.0 cable to the USB 3.0 port of the scanner.
• Connect the device plug of the power cable to the corresponding mains socket on the scanner.

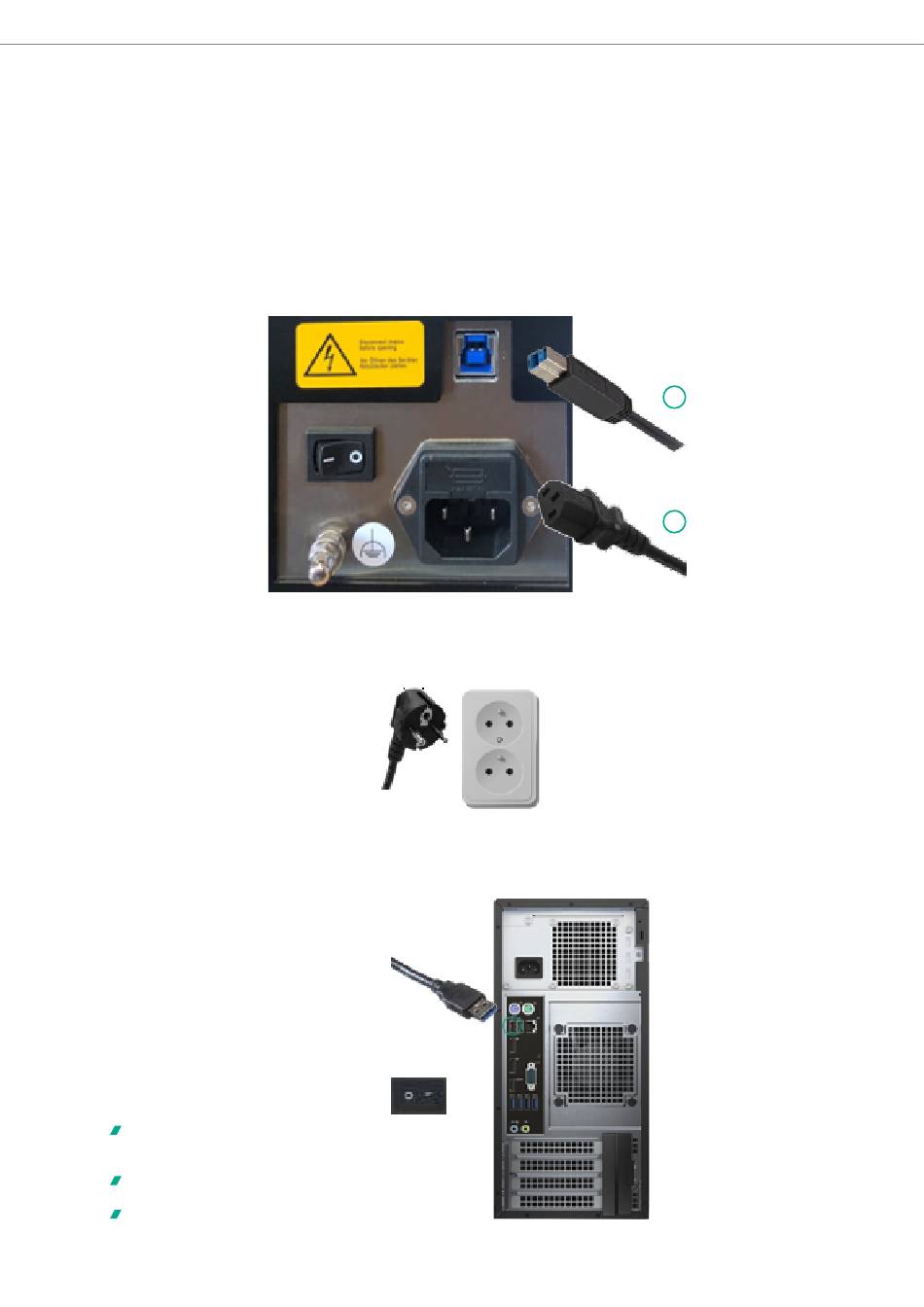

CABLE CONNECTIONS OF THE SCANNER
1. USB connection
2. Mains connection
• Connect the mains plug of the power cable to the mains. It is not necessary to use an adapter to adjust the voltage
as an AC-DC device is integrated in the scanner.
• Connect the flat type A plug of the USB 3.0 cable to a free USB 3.0 port of the PC.
The scanner is operational.
• Switch on the scanner using the power switch.
The power switch is in position I.
The touchscreen displays the starting status (logo).
