4. Device components

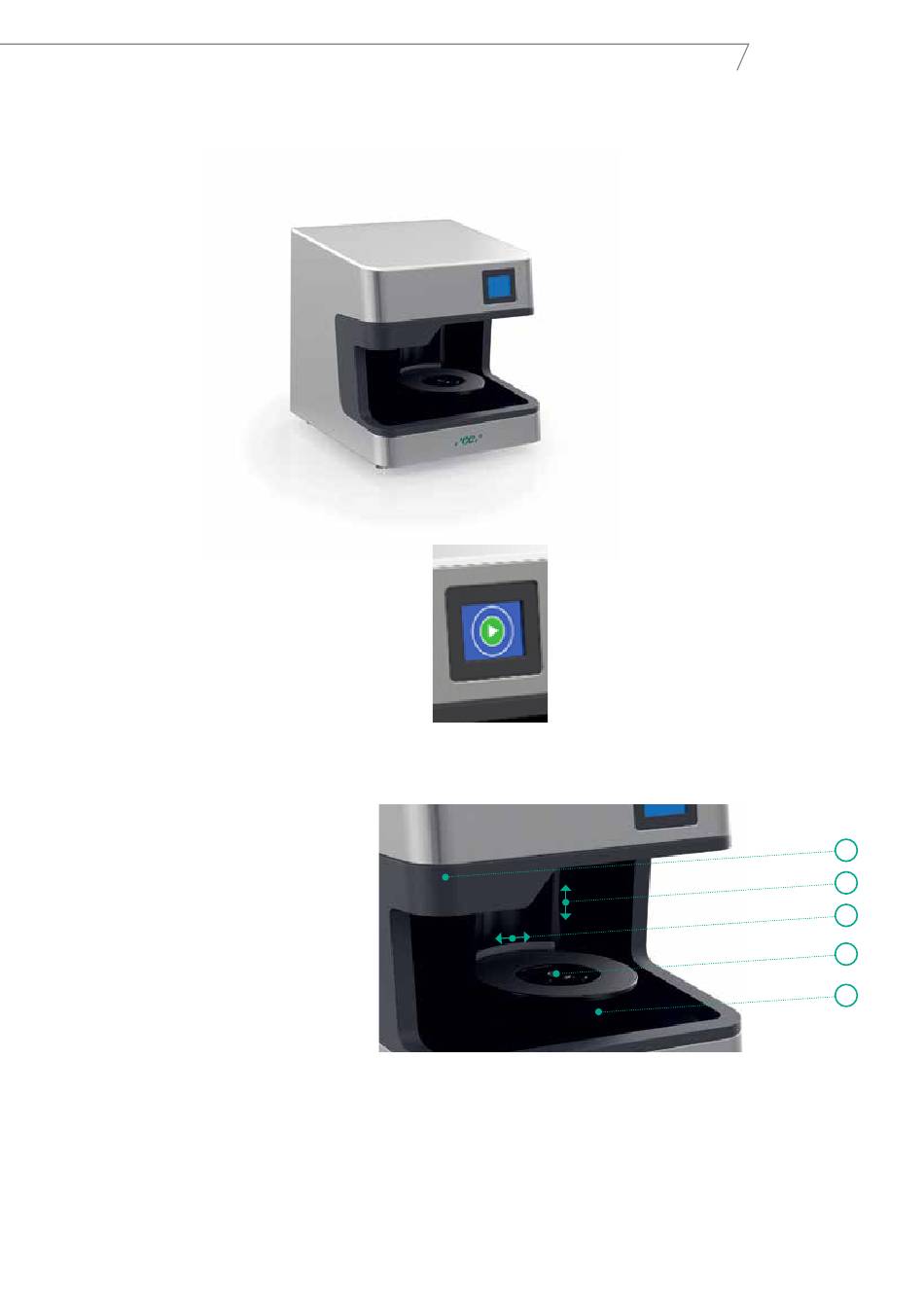

4.1. Front view

1. Touchscreen
2. Opening
DETAILED VIEW OF THE TOUCHSCREEN
1. Starting status (logo): Operation from the
PC possible
2. Operating status: Start button and process
display (see above)
Start button: Operation from the device
possible
Process display: The device is working, no
user action possible

4.2. Internal view

1. Optics (camera and 3D sensor)
2. Z-axis (electromotive up and downwards movement 0 - 30 mm)
3. Swivel axis (electromotive lateral movement 0 - 45°)
4. System plate with Adesso Multisplit base plate
5. Rotary axis (electromotive rotation up to 315°)
Aadva Lab Scanner 2
Manual
1
2
3
4
5
