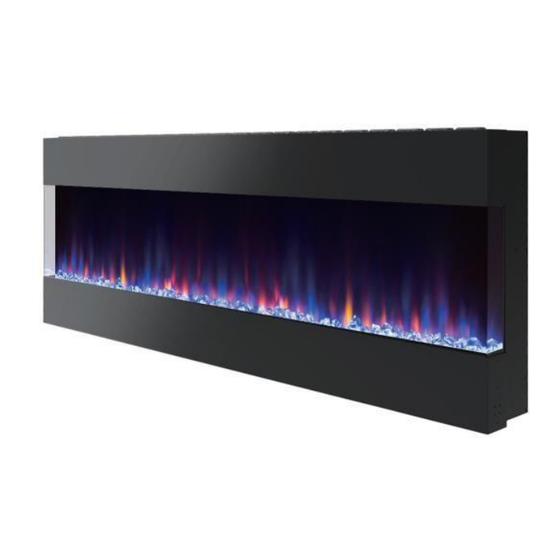

FURY SERIES
ELECTRIC FIREPLACE MANTEL
Model #
80040 – Fury 50" Mantel
OWNER'S MANUAL
AC 110-120V 60Hz 1500W
Read and understand this entire owner's manual, including all safety
information, before plugging in or using this product. Failure to do so could
WARNING
result in fire, electric shock, or serious personal injury.
Keep this owner's manual for future reference. If you sell or give this
CAUTION
product away, make sure this manual accompanies this product.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Touchstone Fury 80040
Summary of Contents for Touchstone Fury 80040
- Page 1 FURY SERIES ELECTRIC FIREPLACE MANTEL Model # 80040 – Fury 50” Mantel OWNER’S MANUAL AC 110-120V 60Hz 1500W Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could WARNING result in fire, electric shock, or serious personal injury.
- Page 2 Fury Series Electric Fireplace Mantel www.touchstonehomeproducts.com 800.215.1990 Rev. 190604...
-
Page 3: Table Of Contents
Remote Control Functions ..........................18 Remote Control Operation ............................19 Temperature Limiting Control ..........................19 Care and Maintenance ............................. 20 Cleaning .................................. 20 Maintenance ................................20 Warranty ................................... 21 Touchstone Home Products Limited Warranty....................... 21 Conditions and Limitations ............................. 21 www.touchstonehomeproducts.com 800.215.1990 Rev. 190604... - Page 4 Fury Series Electric Fireplace Mantel IMPORTANT SAFETY INFORMATION WARNING! • THIS FIREPLACE IS HOT WHEN IN OPERATION AND CAN CAUSE SEVERE BURNS • Do not operate fireplace before reading and understanding operating instructions. Failure to operate fireplace according to operating instructions could cause fire or injury. •...
-
Page 5: General Information
Fury Series Electric Fireplace Mantel General Information CSA Approval Listing Information This fireplace has been tested in accordance with the CSA Standards for fixed and location-dedicated electric room appliances in the United States and Canada. If you need assistance during installation, please contact our technical support department at 800-215-1990 option 3. -
Page 6: Dimensional Drawings
Fury Series Electric Fireplace Mantel Dimensional Drawings 80040 – Fury 50” Mantel Fireplace Dimensions www.touchstonehomeproducts.com 800.215.1990 Rev. 190604... -
Page 7: Unpacking Your Fireplace
Fury Series Electric Fireplace Mantel Unpacking Your Fireplace Parts and Hardware Tools Required • Phillips-head screwdriver • Tape measure • Stud finder • Electric drill • Level • 1/4” wood drill bit What’s in the Box Fury Fireplace Mantel Wall Mount Bracket 1 Bag of White Stones 1 Bag of Clear Crystals Mounting Screws... -
Page 8: Testing The Fireplace Prior To Installation
Fury Series Electric Fireplace Mantel Wiring Touchstone Wall Mounted Electric Fireplaces come with a 3-prong plug which plugs into any standard 110v outlet. Testing the Fireplace Prior to Installation • Before installing the fireplace, test the fireplace to make sure that it operates properly. -
Page 9: Hard Wire Connection
Fury Series Electric Fireplace Mantel Hard Wire Connection If it is necessary to hard wire this appliance, a qualified electrician must remove the cord connection, and wire the appliance directly to the house hold wiring. This appliance must be electrically connected and grounded in accordance with local codes, if hard wired. In the absence of local codes, use the current ANSI/NFPA 70 NATIONAL ELECTRICAL CODE in the United States or the current CSA C22.1 CANADIAN ELECTRICAL CODE in Canada. -
Page 10: Installation
Fury Series Electric Fireplace Mantel Installation WARNINGS • Due to high temperatures, keep the fireplace out of high traffic locations. • Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 36” away from the front of the fireplace. •... -
Page 11: Wall Mounted Installation
Fury Series Electric Fireplace Mantel Wall Mounted Installation • Due to many different finish materials use on walls, it is highly recommended that you consult your local builder before you install this fireplace on the wall. • Select a location that is not prone to moisture and is located at least 36” away from combustible materials such as curtains, drapes, furniture, bedding, papers, clothes, etc. - Page 12 Fury Series Electric Fireplace Mantel Wall Mounted Installation – cont. 3. Mark location of bracket on wall and then mount the bracket to the wall using the supplied screws and dry wall anchors. Mount bracket to at least 2 studs, inserting 1 screw in each of the 6 mounting points shown below. If 2 studs cannot be used, ensure that the supplied dry wall anchors are used to affix the bracket to the wall and the bracket is adequately secured before moving to the next step.
-
Page 13: Recessed Installation
Fury Series Electric Fireplace Mantel Recessed Installation • Due to many different finish materials use on walls, it is highly recommended that you consult your local builder before you install this fireplace in the wall. • Select a location that is not prone to moisture and is located at least 36” away from combustible materials such as curtains, drapes, furniture, bedding, or other combustible materials. - Page 14 Fury Series Electric Fireplace Mantel Recessed Installation – cont. 3. Remove the mirror glass panel from the fireplace. To remove the panel, remove the 4 clips holding the panel in place and pull the glass panel out of the fireplace. A.
-
Page 15: Install Rock Or Glass Crystal Media
Fury Series Electric Fireplace Mantel Recessed Installation – cont. 5. Once the fireplace is mounted in the wall and secure, reinstall the glass panel. A. Reinstall the glass panel in the fireplace. B. Reinstall the clips holding the glass panel. Install Rock or Glass Crystal Media The 80040 Fury Fireplace ships with both rocks and clear glass crystals. -
Page 16: Operating Fireplace
Fury Series Electric Fireplace Mantel Install Rock and Glass Crystal Media – cont. 2. Once the crystal strip is installed, layer the rocks or glass crystal media on the plastic strip. Operating Fireplace Once the fireplace has been plugged into a grounded outlet, the fireplace is now ready for operation. Ensure that the house circuit breakers for the power supply are turned on. -
Page 17: Methods Of Operation
Fury Series Electric Fireplace Mantel Methods of Operation This electric fireplace can be operated by the CONTROL PANEL, located on the lower right side of the fireplace, or by the REMOTE CONTROL. The operation and functions of both methods are the same Control Panel Remote Control Control Panel Functions... -
Page 18: Remote Control Functions
Fury Series Electric Fireplace Mantel Methods of Operation – cont. Remote Control Functions BUTTON FUNCTION ACTION & INDICATION ON: Enables control panel functions and remote control. 1. Press once. Indicator light turns on. Turns on the flame effect. Power turns on. All functions enabled. OFF: Disables control panel functions and remove 2. -
Page 19: Remote Control Operation
Fury Series Electric Fireplace Mantel Remote Control Functions – cont. TEMPERATURE button: Changes the temperature of 1. Press once. Temperature indicator lights the heater. up. Temperature range is 62ºF to 86ºF 2. Press again: To change to the desired NOTE: The heater only works when the flame effect is temperature. -
Page 20: Care And Maintenance
Fury Series Electric Fireplace Mantel Care and Maintenance Cleaning • ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving the fireplace. Failure to do so could result in electric shock, fire, or personal injury. •... -
Page 21: Warranty
Touchstone Home Products Limited Warranty Touchstone Home Products®, Inc offers a one (1) year limited warranty on all our electric fireplaces. The one (1) year warranty starts on the date of purchase and expires 1 calendar year from the original date of purchase. - Page 22 Fury Series Electric Fireplace Mantel www.touchstonehomeproducts.com 800.215.1990 Rev. 190604...
- Page 23 Fury Series Electric Fireplace Mantel www.touchstonehomeproducts.com 800.215.1990 Rev. 190604...
- Page 24 Fury Series Electric Fireplace Mantel Affix Serial Number Label Here www.touchstonehomeproducts.com 800.215.1990 Rev. 190604...
