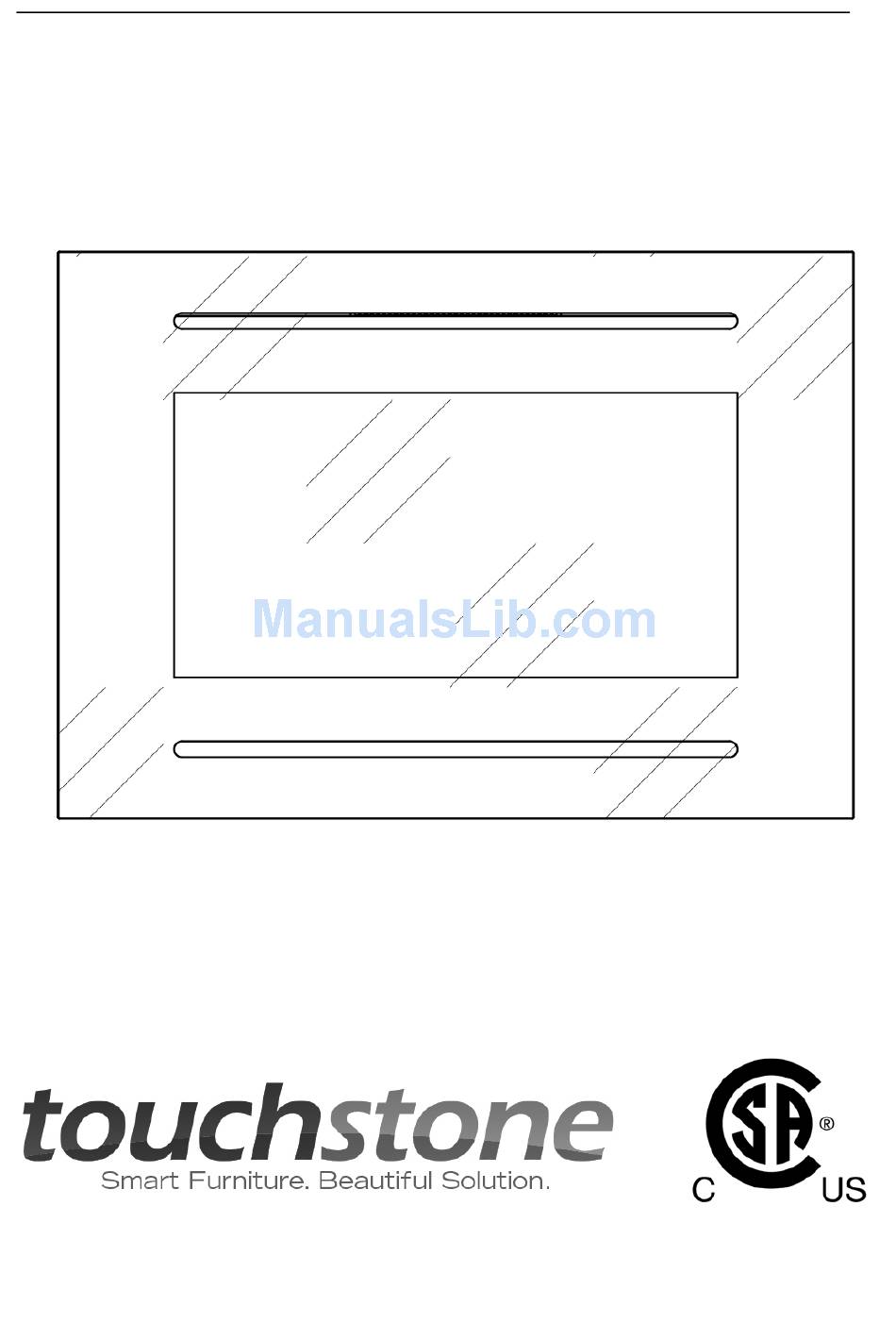

Page 1: User Manual

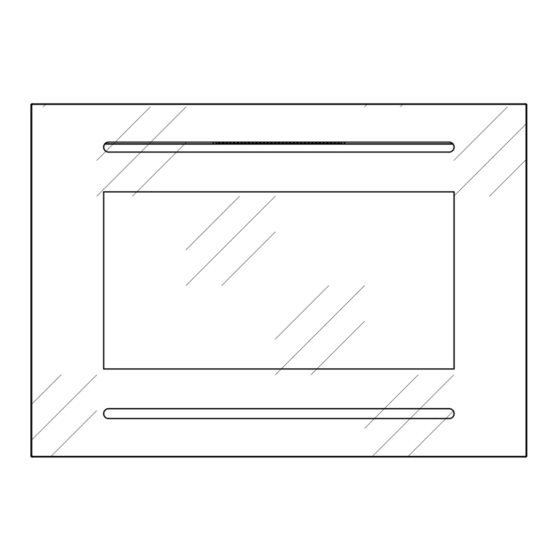

User Manual 80006 – Forte Electric Fireplace MODEL: BG -40B Wall&Build-in Read this owner's manual very carefully before using it Please retain for future reference... - Page 2 IMPORTANT: Read these instructions carefully before using this unit. Keep the instructions safe so that you can refer to them later if necessary. 【INSTRUCTIONS】 When using electrical appliances basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: ●...
-
Page 3: Unpacking And Testing Appliance
CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. UNPACKING AND TESTING APPLIANCE Carefully remove the appliance from the box. - Page 4 the bulged screw tube into the hole till it is flat with the wall. Parts: Bulged screw tube 8pcs Screws ST5x37 8pcs Self-tapping screw ST4x12 2pcs Wall mounted installation 1.Using the Philips Screw Driver"+" to take off the two screws in the front two sides,hold the glass and push up,take off the glass,and lay at the safe place,in order to avoid accidental damage...
- Page 5 2.Doing the test before installing,then hang the back hole of the fireplace to the installed hanging nail in advance.As picture. Then using the “+”screw driver,fix the bottom parts with ST4x12 screw on the wall. ST4x12 Put pebbles even within the braces， Pebble Install the glass according to the steps of the removing.
- Page 6 Build in installation 1.Using the Philips Screw Driver"+" to take off the two screws in the front two sides,hold the glass and push up,take off the glass,and lay at the safe place,in order to avoid accidental damage.then load the fixing parts at the bottom Fixing parts Doing the test before installing,then insert the firebox into the hole.
- Page 7 Put pebbles even within the braces， pebble 5.Install the glass according to the steps of the removing. 【Special characteristics of this Electric Fireplace】 1、The smouldering glow of the flames can hardly be distinguished from that of a real fireplace. 2、Produces the effect of a hot current of air. 3、Automatic and constant temperature control.
-
Page 8: Safety Instructions
【Safety instructions】 • Only use the appliance in accordance with the instructions in this manual! It cannot be used for any other purpose. • Never operate the appliance when the appliance itself or the main cable show any signs of damage. •... -
Page 9: Cleaning The Exterior Of The Appliance
Remote Control Panel Power Press the power button on the remote to turn the flame on and off. Heat Control Press the heater button once and indicator lights up. Ten seconds after the mechanism is activated,warm air will be produced through the air outlets at the bottom. Press the same button again and the indicator lights up. - Page 10 Technical data: 80006 Rated Voltage: 120V～ Rated Frequency: 60Hz Rated Power: 1500W WEEE： Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact you local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
