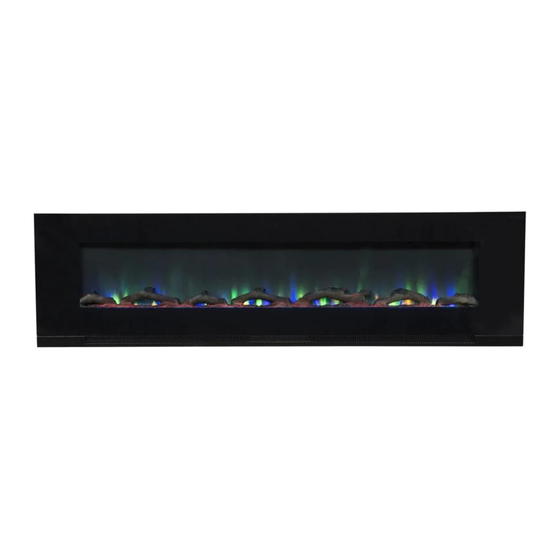

Touchstone 80018 Owner's Manual

Valueline series electric fireplace heater 42 inch,50 inch,60 inch,72 inch
Hide thumbs
Table of Contents

Advertisement

Quick Links

VALUELINE SERIES ELECTRIC FIREPLACE HEATER
Model # : 80018, 80019, 80030, 80031
OWNER'S MANUAL
60" / 72"
ValueLine Series
Recessed Electric Fireplace
42" / 50" / 60" / 72"
AC 110-120V 60Hz 1300W
Read and understand this entire owner's manual, including all safety
information, before plugging in or using this product. Failure to do so could
WARNING
result in fire, electric shock, or serious personal injury.
Keep this owner's manual for future reference. If you sell or give this
CAUTION
product away, make sure this manual accompanies this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 80018 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Touchstone 80018

Summary of Contents for Touchstone 80018

  • Page 1 VALUELINE SERIES ELECTRIC FIREPLACE HEATER Model # : 80018, 80019, 80030, 80031 OWNER’S MANUAL 60” / 72” ValueLine Series Recessed Electric Fireplace 42” / 50” / 60” / 72” AC 110-120V 60Hz 1300W Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product.
  • Page 2 ValueLine Series Electric Fireplace www.touchstonehomeproducts.com 800.215.1990...

  • Page 3: Table Of Contents

    CSA Approval Listing Information .......................... 5   Fireplace Specifications ............................5   Dimensional Drawings.............................. 6   80018 – ValueLine60 Dimensional Drawing ......................6   80019 – ValueLine72 Dimensional Drawing ......................7   80030 – ValueLine42 Dimensional Drawing ......................8  ...
  • Page 4 ValueLine Series Electric Fireplace IMPORTANT SAFETY INFORMATION WARNING!  THIS FIREPLACE IS HOT WHEN IN OPERATION AND CAN CAUSE SEVERE BURNS  Do not operate fireplace before reading and understanding operating instructions. Failure to operate fireplace according to operating instructions could cause fire or injury. ...

  • Page 5: General Information

    Note: This fireplace must be electrically wired and grounded in accordance with local codes or, in the absence of local codes, with National Electric Code ANSI/NFPA 70-latest edition in the United States or the Canadian Electric Code, CSA C22.1 in Canada. Fireplace Specifications Model Number 80018 80019 Description ValueLine60 ValueLine72...

  • Page 6: Dimensional Drawings

    ValueLine Series Electric Fireplace Dimensional Drawings 80018 – ValueLine 60” Dimensional Drawing www.touchstonehomeproducts.com 800.215.1990...

  • Page 7: 80019 - Valueline72 Dimensional Drawing

    ValueLine Series Electric Fireplace 80019 – ValueLine 72” Dimensional Drawing www.touchstonehomeproducts.com 800.215.1990...

  • Page 8: 80030 - Valueline42 Dimensional Drawing

    ValueLine Series Electric Fireplace 80030 – ValueLine 42” Dimensional Drawing www.touchstonehomeproducts.com 800.215.1990...

  • Page 9: 80031 - Valueline50 Dimensional Drawing

    ValueLine Series Electric Fireplace 80031 – ValueLine 50” Dimensional Drawing www.touchstonehomeproducts.com 800.215.1990...

  • Page 10: Unpacking Your Fireplace

    ValueLine Series Electric Fireplace Unpacking Your Fireplace Parts and Hardware Tools Required - Phillips screwdriver - Tape Measure - Stud finder - Electric Drill - Level - ¼” wood drill bit What’s in the Box Mounting Screws Drywall anchors ValueLine60 Fireplace Remote Control Crystal Embers Wall Mount Bracket...

  • Page 11: Wiring

    ValueLine Series Electric Fireplace Wiring The ValueLine series recessed fireplace can either be plugged into a grounded 3-prong outlet. Testing the Fireplace Prior to Installation  Before installing the fireplace, test the fireplace to make sure that it operates properly. ...

  • Page 12: Installation

    ValueLine Series Electric Fireplace Installation WARNINGS  Due to high temperatures, keep the fireplace out of high traffic locations.  Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 36” away from the front of the fireplace. ...

  • Page 13: Removing The Glass Panel

    ValueLine Series Electric Fireplace Removing The Glass Panel Prior to installation, it is best to remove the glass panel. Please remove glass panel as per instructions below: Instructions 1. Remove the 3 screws from the bracket behind the glass panel at the top of the fireplace. 2.
  • Page 14 ValueLine Series Electric Fireplace Removing The Glass Panel – cont. 3. After all 5 screws are removed, lift the front panel off of the fireplace by lifting the glass panel straight up and then out and away from the fireplace as shown in the diagram below. CAUTION: It is recommended that 2 people remove the glass panel to minimize change of breakage.

  • Page 15: Recessed Installation

    1. Choose a location in the wall to install fireplace. 2. Create opening in the wall that is no more than ¼” larger than metal firebox portion of fireplace. Firebox Dimensions Model (Width) (Height) (Depth) 80018 50 ½” 16 7/8” 4 ½” 80019 62 ½” 16 7/8”...

  • Page 16: Fire Log Installation

    ValueLine Series Electric Fireplace Recessed Installation – cont. 3. With the help of a second person, insert fireplace into wall opening and secure with mounting screws provided. 4. Once the fireplace is installed in the wall, install either the faux fire log or crystal embers. a.

  • Page 17: Crystal Ember Installation

    ValueLine Series Electric Fireplace Recessed Installation – cont. b. Crystal Ember Installation i. Prior to installing the crystal embers, remove the faux fire log from the fireplace. ii. Remove the brackets holding the log in place. 2a. Remove Left Bracket 2b.
  • Page 18 ValueLine Series Electric Fireplace Recessed Installation – cont. 5. Once completed installing crystal embers or fire log, reinstall glass panel. The hooks on the back of the glass panels fit into the slots on the side of the firebox. Once in the slots, the glass panel goes down and locks into place. NOTE: The 5 screws that were removed earlier during the removal of the glass panel are for shipping purposes ONLY.

  • Page 19: Wall Mounted Installation

    ValueLine Series Electric Fireplace Wall Mounted Installation  Due to many different finish materials use on walls, it is highly recommended that you consult your local builder before you install this fireplace on the wall.  Select a location that is not prone to moisture and is located at least 36” away from combustible materials such as curtains, drapes, furniture, bedding, papers, clothes, etc.
  • Page 20 ValueLine Series Electric Fireplace Wall Mounted Installation – cont. 4. Mark location of bracket on wall and then mount the bracket to the wall using the supplied screws and dry wall anchors. The hooks in the bracket MUST be pointed away from the wall, upward, and level. 5.

  • Page 21: Fire Log Installation

    ValueLine Series Electric Fireplace Wall Mounted Installation – cont. 6. With the wall mounting bracket installed, have 2 people lift the fireplace up and insert the 2 hooks on the bracket into the back of the fireplace. The 2 hooks on the mounting bracket will line up with the 2 holes on the back of the fireplace.

  • Page 22: Crystal Ember Installation

    ValueLine Series Electric Fireplace Wall Mounted Installation – cont. b. Crystal Ember Installation i. Prior to installing the crystal embers, remove the faux fire log from the fireplace. ii. Remove the brackets holding the log in place. 2a. Remove Left Bracket 2b.

  • Page 23: Power

    ValueLine Series Electric Fireplace Wall Mounted Installation – cont. 8. Once completed installing crystal embers or fire log, reinstall glass panel. The hooks on the back of the glass panels fit into the slots on the side of the firebox. Once in the slots, the glass panel goes down and locks into place. NOTE: The 5 screws that were removed earlier during the removal of the glass panel are for shipping purposes ONLY.

  • Page 24: Temperature Limiting Control

    ValueLine Series Electric Fireplace Temperature Limiting Control This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe temperature, the heater will automatically TURN OFF. To reset, please do the following: 1. Unplug the power cord from the outlet. 2.

  • Page 25: Remote Control Operation

    ValueLine Series Electric Fireplace Remote Control Operation  This remote control uses one CR2025 3v battery.  Instructions for battery installation are located on the back of the remote control.  To improve operation of the remote control, aim the remote control at the front of the fireplace. DO NOT PRESS the buttons too quickly.

  • Page 26: Care And Maintenance

    ValueLine Series Electric Fireplace Care and Maintenance Cleaning  ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving the fireplace. Failure to do so could result in electric shock, fire, or personal injury. ...

  • Page 27: Warranty

    Touchstone Home Products, Inc warrants our electric fireplaces to be free of defects in material and workmanship for one year from date of purchase. Touchstone will repair or replace any fireplace or fireplace part that is deemed defective or becomes defective during normal use within one year after the date of purchase.
  • Page 28 ValueLine Series Electric Fireplace www.touchstonehomeproducts.com 800.215.1990...
