Installation and Operation Instructions

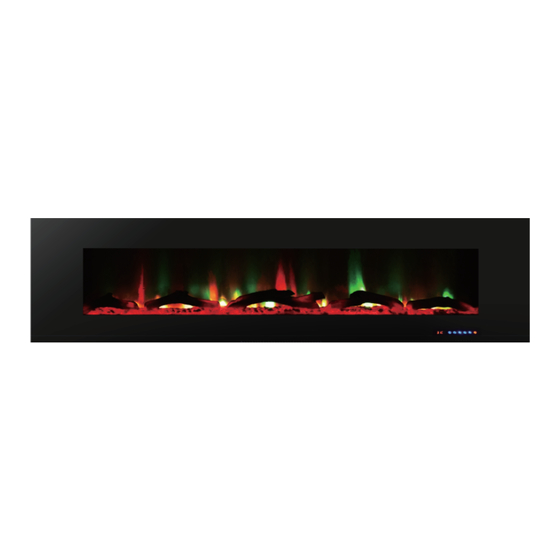

ELECTRIC FIREPLACE
80019
CONSUMER SAFETY INSTRUCTIONS
Read this manual before installing and operating this appliance.
Failure to follow these instructions may result in electrical shock, property damage, personal injury and
will void the warranty.
Do not store or use gasoline or other flammable liquids or vapours in the vicinity of this appliance.
INSTALLER: Leave this manual with the appliance.
Consumer: Retain this manual for further reference.
PET OWNERS WARNING:
The health of some small pets including birds are extremely sensitive to the fumes produced
during the first-time use of many appliances. These fumes are not harmful to humans but we
recommended that you do not use your heater around birds and small pets during its initial use
until the manufacturing corrosion coatings burn off.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electrical shock or personal injury, the following must be read before using or
plugging this electric fireplace into an electrical outlet.
1. Read all instructions before installation or use.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep
combustible materials such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet
(0.9 m) away the front of heater and keep them away from the sides and rear of heater.
3. Extreme caution is necessary when any heater is used by or near children and whenever the heater
is left operating and unattended.
4. Do not operate any heater with a damaged cord or plug, or after the heater has malfunctioned or
has been dropped or damaged in any manner. Return heater to an authorized service facility for repair.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 80019 and is the answer not in the manual?

Questions and answers

Related Manuals for Touchstone 80019

Summary of Contents for Touchstone 80019

  • Page 1: Important Safety Instructions

    Installation and Operation Instructions ELECTRIC FIREPLACE 80019 CONSUMER SAFETY INSTRUCTIONS Read this manual before installing and operating this appliance. Failure to follow these instructions may result in electrical shock, property damage, personal injury and will void the warranty. Do not store or use gasoline or other flammable liquids or vapours in the vicinity of this appliance.

  • Page 2: Hardware Contents

    5. Do not use outdoors. 6. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate heaters where it may fall into a bathtub or other water container. 7 Do not run cord under carpeting. Do not cover cord with throw rugs, runners or the like. Arrange cord away from traffic areas and where it will not be tripped over.

  • Page 3: Installation Overview

    INSTALLATION OVERVIEW Site Selection Your new fireplace may be wall mounted, installed into existing framing or built into a wall. Review and consider all of the following conditions for installation: -Fireplace dimensions. -Unit requires a minimum of two wall studs in order to ensure a secure installation. There are two possible installation methods: built-in or wall-mounted.
  • Page 4 PLAN A PLAN B 1. Attach the built-in mount bracket to both sides of the appliance. (Plan A: Inner Hole; Plan B: Outer Hole; as shown below). 2. Lift fireplace carefully with the help of another person and insert into opening. 3.
  • Page 5 GLASS PEBBLES INSTALLATION Cleaning the glass pebbles: the pebbles may be covered with a fine white dust that needs to be cleaned prior to installation. Clean the pebbles with soapy water, rinse thoroughly and dry before placing into the tray. Spread glass pebbles into the fireplace tray as shown below.

  • Page 6: Glass Panel Installation

    GLASS PANEL INSTALLATION To avoid any risk of injury, it is recommended that two people install the glass onto the appliance. Always wear safety glasses and gloves when handling glass. 7. Lift glass panel and line up with the top bracket (figure 1). Fasten panel to the appliance as shown below.
  • Page 7 The master power switch is located on the right side of the appliance. The control panel is on the right corner of the glass. MASTER SWITCH The master switch controls the power supply to the appliance. Turn the switch to “I” to connect power and turn the switch to “O”...

  • Page 8: Troubleshooting

    TROUBLESHOOTING Disconnect power before performing any maintenance and allow the fireplace to cool before servicing. Only a qualified service person should service and repair this electric fireplace. SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION Fireplace Fireplace inner components Reset switch by turning doesn't work.
