Touchstone BEF-50BIF Owner's Manual

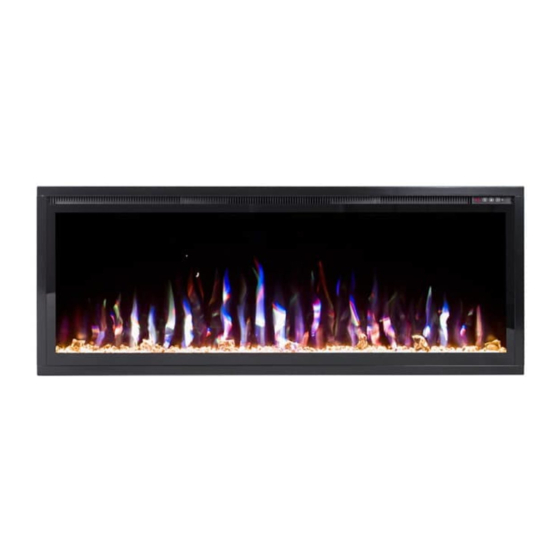

Electric flat panel fireplace 50/60”- built-in & wall mounted ac 110-120v 60hz
Hide thumbs

Advertisement

Table of Contents

ELECTRIC FLAT PANEL FIREPLACE
Model# :80017
OWNER'S MANUAL
50/60"- Built-in & Wall Mounted Electric Fireplace
AC 110-120V 60Hz
Read and understand this entire owner's manual, including all safety
information, before plugging in or using this product. Failure to do so could
WARNING
result in fire, electric shock, or serious personal injury.
Keep this owner's manual for future reference. If you sell or give this
CAUTION
product away, make sure this manual accompanies this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEF-50BIF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Touchstone BEF-50BIF

Summary of Contents for Touchstone BEF-50BIF

  • Page 1 ELECTRIC FLAT PANEL FIREPLACE Model# :80017 OWNER’S MANUAL 50/60”- Built-in & Wall Mounted Electric Fireplace AC 110-120V 60Hz Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could WARNING result in fire, electric shock, or serious personal injury.

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION! WARNING  Read all instructions before using this fireplace!  DO NOT operate any fireplace with a damaged cord or plug or after the fireplace malfunctions, has been dropped or damaged in any manner. Discard fireplace, or return to authorized service facility for examination and/or repair.
  • Page 3  ONLY use this fireplace on a 120V AC 10-Amp grounded circuit. NEVER overload the circuit. If this fireplace trips the circuit breaker, unplug all other appliances on the same circuit before the next use. Avoid plugging other appliances into the same circuit as this fireplace. ...

  • Page 4: Parts And Hardware

    Parts and Hardware B – Wood Screws ( 4) C – Drywall anchors (4 ) A – Fireplace ( 1 ) RC – Remote Control (1) Installation and Assembly Step 1. Find a safe location. Rear View of Fireplace Minimum clearance on each side: 19.7”...
  • Page 5 Bulit-in Installation STEP 1. Selection a dry wall to open a hole for fireplace box. Size of holes as below chart Model No. BEF-50BIF 48.19” 17.2” BEF-60BIF 58.19” 17.2” Figure ( A )
  • Page 6 Figure ( B ) STEP 2. Place the fireplace to a soft clean place. using the screw driver to take off the TWO screws in both sides. Figure (B) Figure ( C ) STEP 3. Have two people to pull the trim up, then take them out of the fireplace box. Figure (C)
  • Page 7 Figure ( D ) STEP 4. Using the screw driver to take off the 8 screws as above Figure (D), have two people to take out the glass panel Figure (E) and move it to a clean soft place to avoid the scratching. Figure ( E )
  • Page 8 STEP 5. Have two people to lift the fireplace box and put it into the opened hole. Fixing the FOUR wall screws in each side of the fireplace box. Figure (F) Figure ( F ) STEP 6. Place the decorative crystals (For crystals ember installation please refer to Page 10). Move and screw back the glass panel and metal trim.

  • Page 9: Wall Mounted Installation

    Wall Mounted Installation STEP1 ) Select a location that is not prone to moisture and is located at least 36" away from combustible materials such as curtain drapes, furniture, bedding, paper, etc. then use a ￠1/4 drill to drill the two holes A,B and use the Hammer to thread the Drywall anchors into the hole till it keep flat with the wall.

  • Page 10: Operation

    Operation Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could result in electric shock, fire, serious injury, or death. Power Make sure the ON/OFF switch, located on the left side panel, is in the OFF position. Plug the power cord into a 110~120 Volt 15 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3).
  • Page 11 Remote Control &Control Panel Operation (Control panel POWER switch must be ON to use remote control.) BUTTON FUNCTION ACTION & INDICATION ON: Enables control panel functions and 1. Press once. Indicator light turns on. remote control. Turns on flame effect. Power turns on.

  • Page 12: Care And Maintenance

    Care and Maintenance Cleaning ALWAYS turn the fireplace OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in electric shock, fire, or personal injury. NEVER immerse in water or spray with water. Doing so could result in electric shock, fire, or personal injury.

This manual is also suitable for:

Bef-60bif80017
