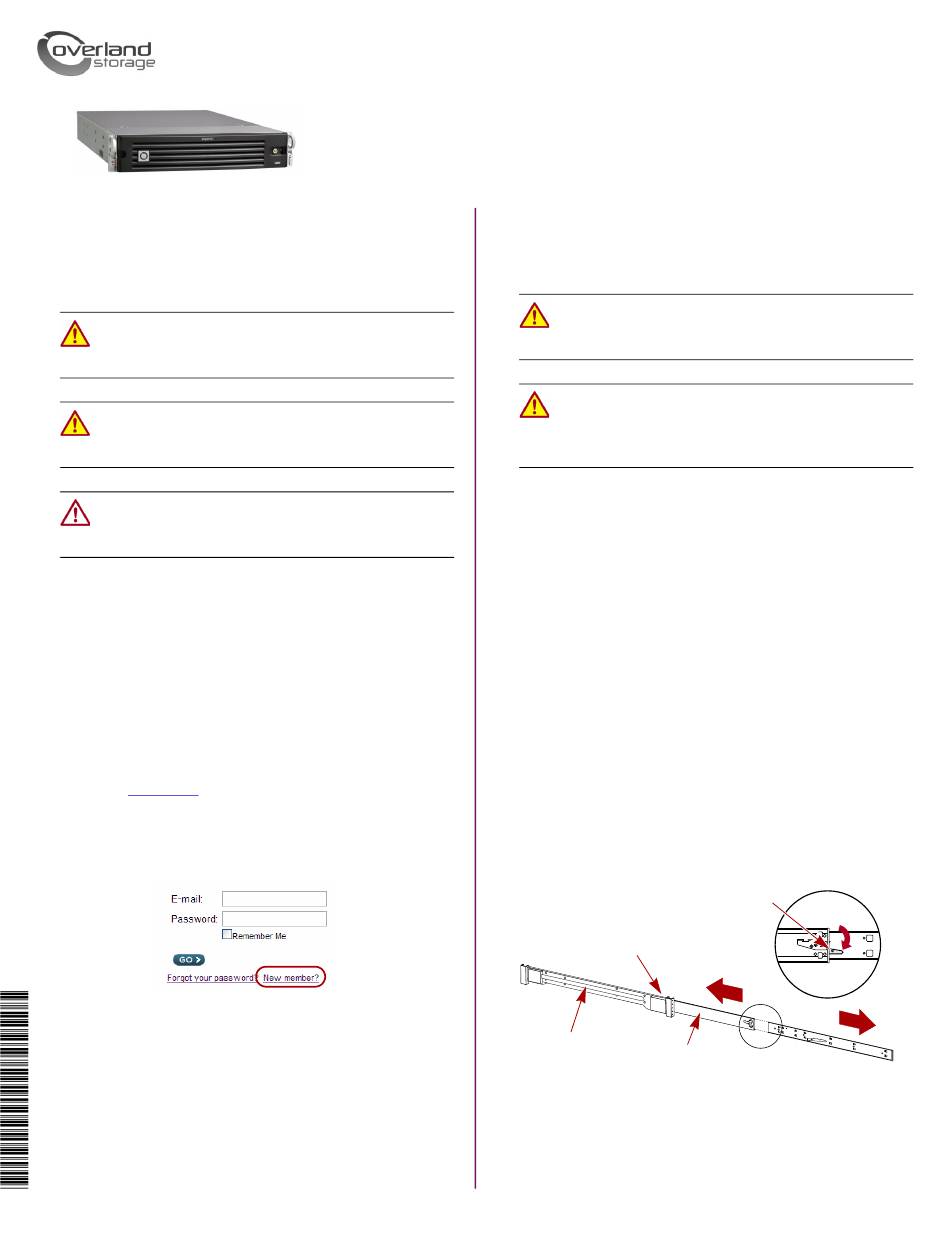

Overview

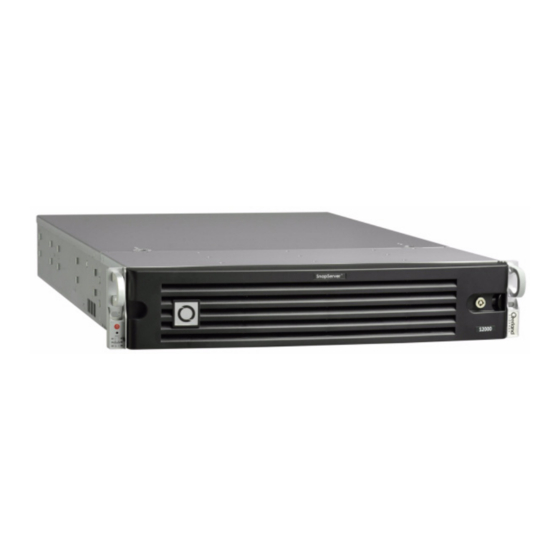

This document describes how to unpack a SnapServer
Expansion E2000 array from Overland Storage and
install it into a four-post, 32-inch depth, EIA-310 rack.
WARNING: To reduce the risk of electric shock or damage
to equipment, always remove any power cords while
working with the unit.
AVERTISSEMENT: pour réduire le risque de choc
électrique ou endommagement de l'équipement, retirez
toujours les cordons électriques en travaillant avec l'appareil.
CAUTION: While working with the unit, observe standard
Electrostatic Discharge (ESD) precautions to prevent
damage to micro-circuitry or static-sensitive devices.

Register First

Before starting, it is essential that you activate your
Overland warranty. Technical and warranty support are
not available until this is done:
1. Go to the Overland Storage web site
(http://www.overlandstorage.com/).
2. Click the Service & Support tab.
3. Select My Products tab > Register New Product.
4. At the Site Login, enter your e-mail address and
password (Figure 1).
NOTE: If you are not yet a member, click "New member?"
and follow the instructions given. It's free and easy!
Figure 1. Support Site Login
5. Fill in the information and click Submit.
Within three business days, you will receive an e-mail
from Overland with your warranty certificate. Follow the
instructions included to complete the process.
10400283-003 07/2010
SnapServer
Quick Start Guide
©2010 Overland Storage, Inc.
®
Expansion E2000

Rack Installation

Before installing the disk drives, it is recommended that
the unit first be secured in the rack.
WARNING: Use care during rack installation or removal to
prevent accidental tipping of the rack causing damage or
personal injury.
AVERTISSEMENT: soyez prudent lors de l'installation ou
de l'enlèvement du support afin d'empêcher le
renversement accidentel de la crémaillère, pour éviter
dommages et blessures.
The rail kit included with the E2000 is adaptable for
installation in the two major types of hardware racks:
squared-holed and round-holed EIA-310 racks.
NOTE: A two-post telco-style rack or any rack that is less than
29-inches in depth will not support this appliance. Also, for
threaded-hole racks, Overland Storage recommends using a
shelf.
The rails are not universal. They are stamped LH (left)
and RH (right) and must be mounted on the appropriate
side (when facing the rack front).

Attach Inner Rails to Chassis

This procedure is required for all rack types:
1. Mark the screw holes on the rack where the rails will
be installed.
NOTE: Be sure rear holes are horizontally in line with the
front holes to ensure the unit remains level.
2. Remove the inner rail
Inner Member Latch
Middle Member Latch
(Hidden)
Outer Member
Middle Member
Figure 2. Inner Rail Release Latch
a. Fully extend the rail set.
b. Push the inner member latch down, and remove
the inner rail.
(Figure 2) from the rail set:
