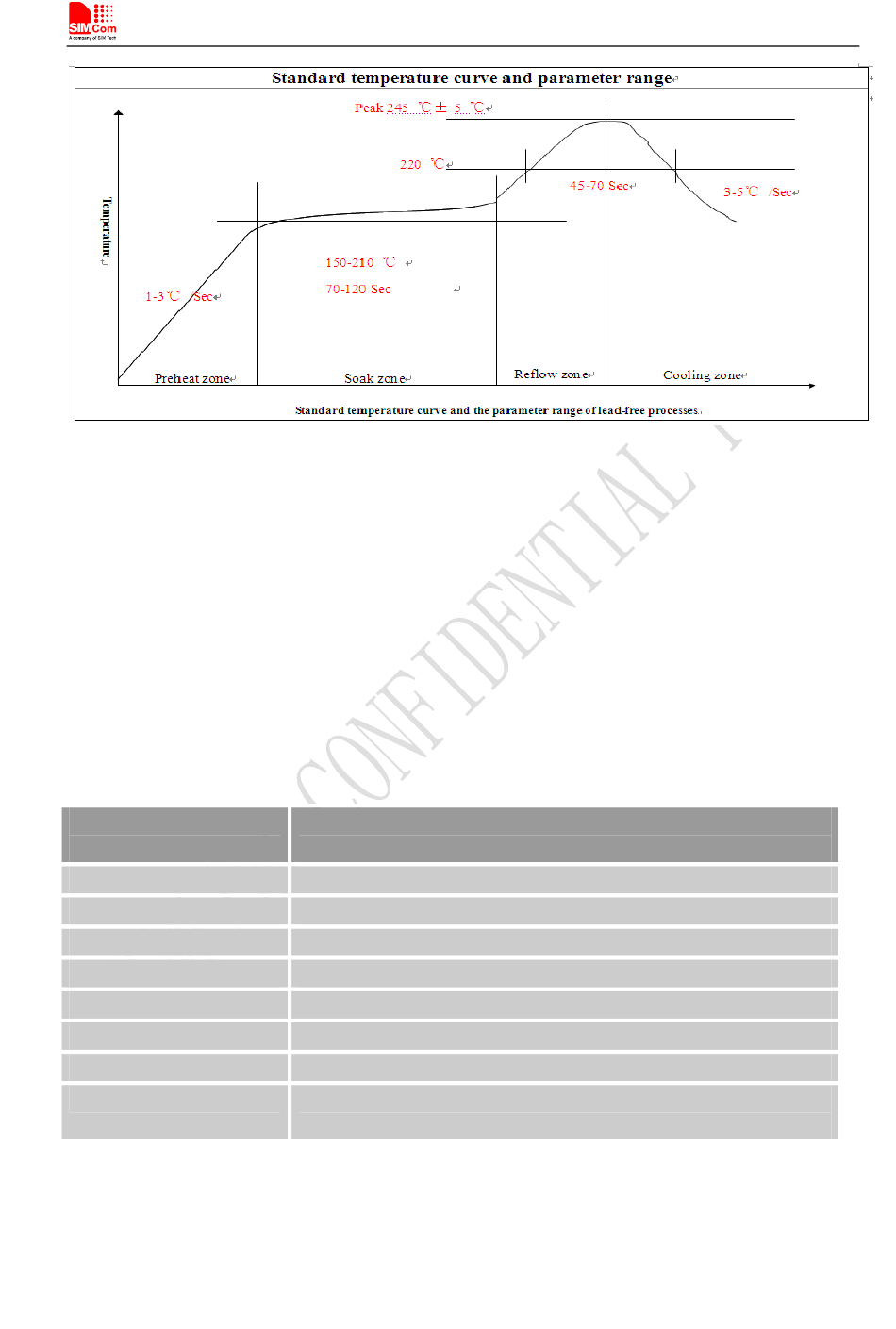

Figure 38: The ramp-soak-spike reflow profile of SIM7100
Note: For details about secondary SMT, please refer to document [21].
6.3

Moisture Sensitivity Level (MSL)

SIM7100 is qualified to Moisture Sensitivity Level (MSL) 5 in accordance with JEDEC J-STD-033. After
the prescribed time limit exceeded, users should bake modules for 192 hours in drying equipment (<5%
RH) at 40° C +5° C/-0° C, or 72 hours at 85° C +5° C/-5° C. Note that plastic tray is not heat-resistant,
users must not use the tray to bake at 85° C or the tray may be damaged.
Table 36: Moisture sensitivity level and floor life
Moisture Sensitivity Level
(MSL)
1
2
2a
3
4
5
5a
6
NOTE: For product handling, storage, processing, IPC / JEDEC J-STD-033 must be followed.
SIM7100_Hardware Design_V1.01
Floor Life (out of bag) at factory ambient≤30°C/60% RH or as
stated
Unlimited at ≦30℃/85% RH
1 year
4 weeks
168 hours
72 hours
48 hours
24 hours
Mandatory bake before use. After bake, it must be reflowed within the
time limit specified on the label.
