Introduction

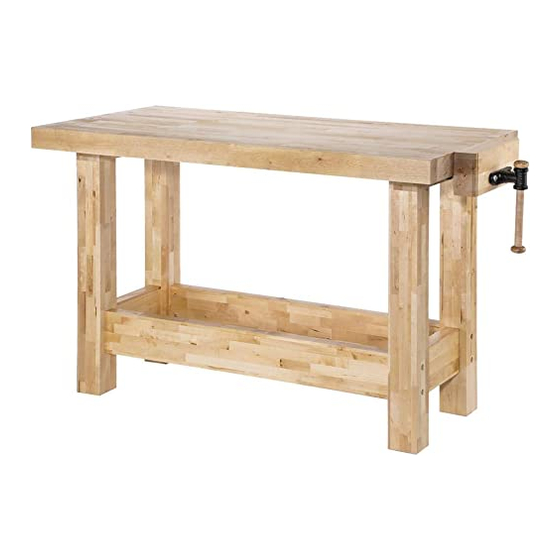

Sized to fit the needs of any shop, these work-
benches feature laminated birch construction for
strength and stability.
Specifications
H8361
Construction .............................. Laminated Birch
Shipping Weight .....................................248 lbs.
Dimensions ............................60"L x 30"W x 3"T
Table Height Above Floor .............................. 38"
Tail Vise Width ............................................ 14
Tail Vise Max. Capacity .................................... 7"
H8362
Construction .............................. Laminated Birch
Shipping Weight ......................................315 lbs.
Dimensions .............................72"L x 36"W x 3"T
Table Height Above Floor .............................. 38"
Tail Vise Width ............................................ 17
Tail Vise Max. Capacity .................................... 7"
Inventory
A. Bench Top .................................................. 1
B. Right Side Leg ............................................ 1
C. Left Side Leg .............................................. 1
D. Cross Braces .............................................. 2
E. Tail Vise ...................................................... 1
F.
Vise Wood Block ........................................ 1
G. Hardware and Tools (not shown)
—Flat Washers
5
—Machine Screws
—Dowel Nuts
⁄
5
16
—Wood Screws
—Wood Screws #5 x 1
—Cotter Pin ................................................ 1
—Hex Wrench 5mm ................................... 1
COPYRIGHT © MAY, 2008 BY GRIZZLY INDUSTRIAL, INC. REVISED APRIL, 2015 (ST)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
⁄
" .................................. 12
16
⁄
"-18 x 4" .................. 8
5
16
"-18 .................................. 8
⁄
" x 2
/
"......................... 4
5
1
16
2
⁄
" ......................... 2
7
16
(FOR MACHINES MFD SINCE 5/09) #BL10746 PRINTED IN CHINA
MODEL H8361/H8362
60"/ 72"SUPER HEAVY-
DUTY WORKBENCHES
C
Figure 1. Model H8361/H8362 inventory.
⁄
"
3
4
Model H8361
⁄
"
3
4
Model H8362
Figure 2. Model H8361 and H8362.
INSTRUCTIONS
A
D
F
E
B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Grizzly H8361
Summary of Contents for Grizzly H8361
- Page 1 —Cotter Pin ..........1 —Hex Wrench 5mm ........1 COPYRIGHT © MAY, 2008 BY GRIZZLY INDUSTRIAL, INC. REVISED APRIL, 2015 (ST) WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
- Page 2 Table Top & Wood Block Flush Wood Block ⁄ " Flat Washers Vise Plate ⁄ " x 2 ⁄ " #5 x 1 ⁄ " Wood Screws Wood Screws Figure 4. Installing table top. Figure 6. Installing vise. H8361/H8362 (Mfg. 05/09+)
- Page 3 • distance away from the work area, especially when you are operating a power tool. Do not wear loose clothing, gloves, • neckties, or jewelry. Secure long hair, button all long sleeve shirts, and wear non-slip footwear. H8361/H8362 (Mfg. 05/09+)
- Page 4 H8361/H8362 Parts Breakdown H8361 Parts List REF PART # DESCRIPTION REF PART # DESCRIPTION PH8361001 BENCH TOP PH8361007 MACHINE SCREW 5/16"-18 X 4" PH8361002 RIGHT SIDE LEG PH8361008 DOWEL NUT 5/16"-18 PH8361003 LEFT SIDE LEG PH8361009 WOOD SCREW 5/16" X 2-1/2"...
